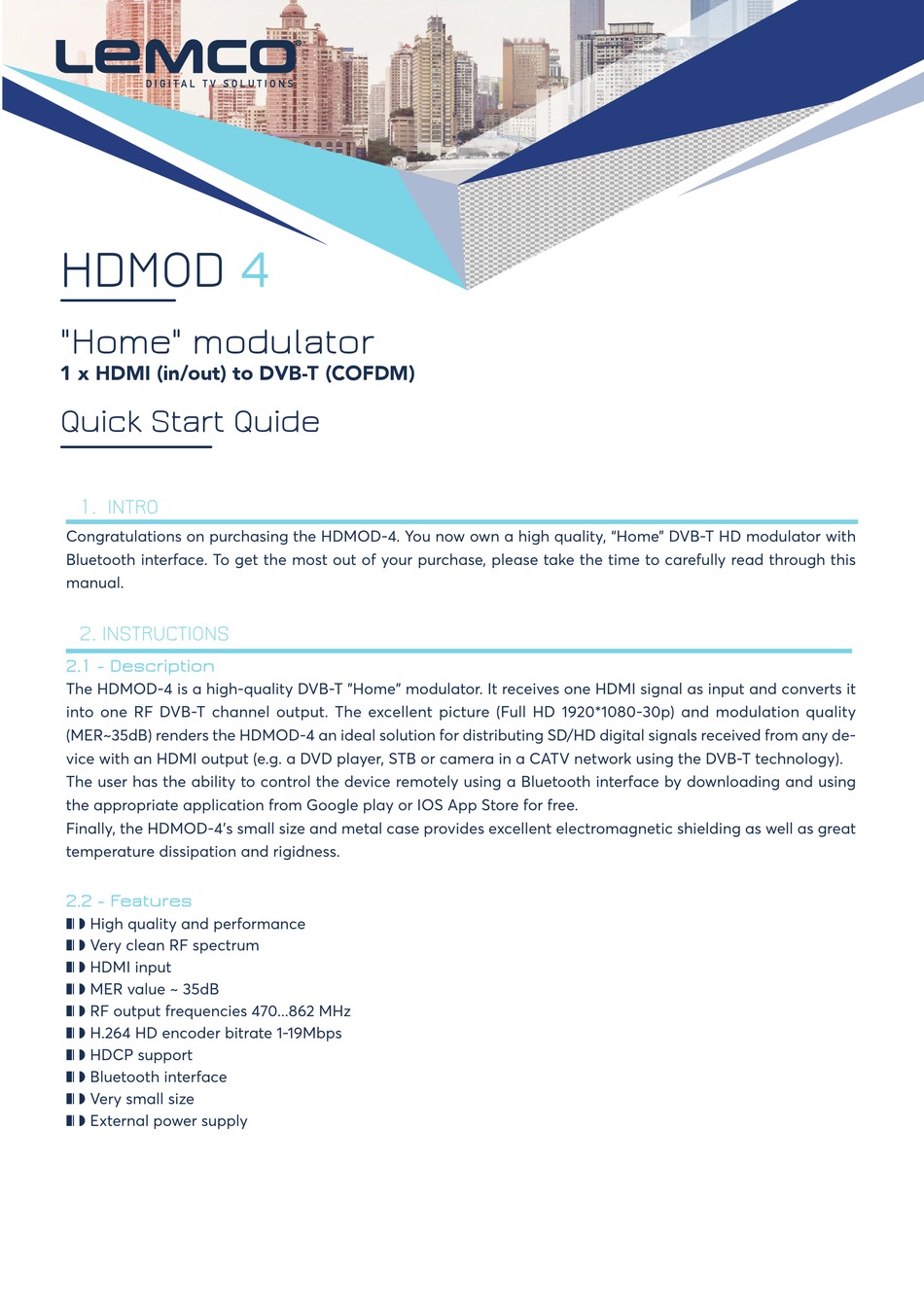

Lemco HDMOD 4 Quick Start Quide

HDMOD
"Home" modulator
1 x HDMI (in/out) to DVB-T (COFDM) ( / )
Quick Start Quide

1. INTRO

Congratulations on purchasing the HDMOD-4. You now own a high quality, "Home" DVB-T HD modulator with
Bluetooth interface. To get the most out of your purchase, please take the time to carefully read through this
manual.

2. INSTRUCTIONS

2.1 - Description

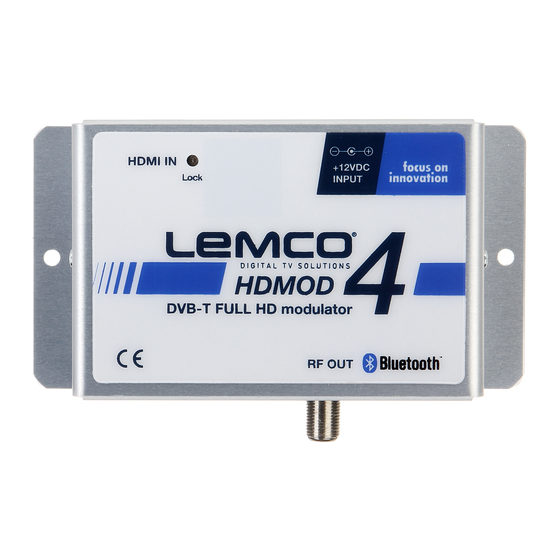

The HDMOD-4 is a high-quality DVB-T "Home" modulator. It receives one HDMI signal as input and converts it
into one RF DVB-T channel output. The excellent picture (Full HD 1920*1080-30p) and modulation quality
(MER~35dB) renders the HDMOD-4 an ideal solution for distributing SD/HD digital signals received from any de-
vice with an HDMI output (e.g. a DVD player, STB or camera in a CATV network using the DVB-T technology).
The user has the ability to control the device remotely using a Bluetooth interface by downloading and using
the appropriate application from Google play or IOS App Store for free.
Finally, the HDMOD-4's small size and metal case provides excellent electromagnetic shielding as well as great
temperature dissipation and rigidness.

2.2 - Features

zx w High quality and performance
zx w Very clean RF spectrum
zx w HDMI input
zx w MER value ~ 35dB
zx w RF output frequencies 470...862 MHz
zx w H.264 HD encoder bitrate 1-19Mbps
zx w HDCP support
zx w Bluetooth interface
zx w Very small size
zx w External power supply
