Lemco Micro line MLC-300 Quick Start Manual

Quick start Guide

1. INTRO

Congratulations on purchasing the MLC-300. You now own a high quality, professional mini
DTV headend. To get the most out of your purchase, please take the time to carefully read
through this quick start guide.

2. INSTRUCTIONS

2.1 - Description

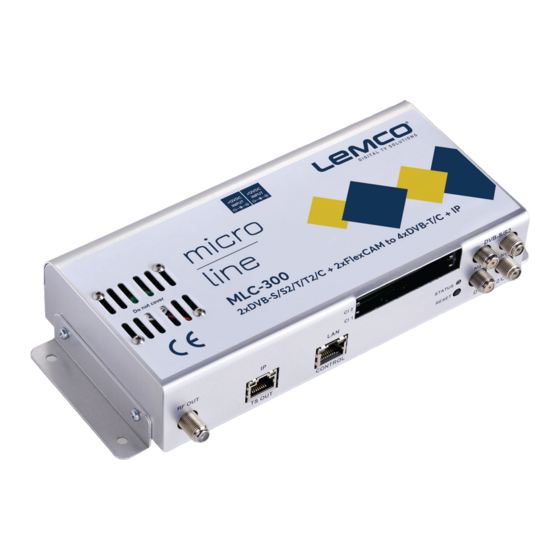

The MLC-300 is a very powerful, all-in-one mini headend device, able to receive up to 2 in-
dependent satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) signals with 2x CI in-
terfaces and convert them either in 4 x DVB-T/C RF output channels or in IPTV streaming
using UDP/RTP protocols multicast/unicast.
It supports "pool" technology, meaning that the user is able to select any program from any
of the 2 inputs and assign them to any of the 4 RF or IP outputs providing great flexibility.
The FlexCAM technology provides the ability to the user to connect the CAMs either at the
inputs or the outputs of the device.
The embedded web server of the MLC-300 provides a very friendly user interface as well as
the ability of remote or local control of the device via LAN.
Its small size and its powerful features render the MLC-300 the ideal solution in case we want
to distribute FTA (Free-To-Air) or scrambled TV programs coming from satellite (DVB-S/S2),
terrestrial (DVB-T/T2) or cable (DVB-C) sources to a CATV installation using the DVB-T/C or
IPTV technology.
