Lemco HDMOD-1 Quick Start Manual

4-step installation guide

The HDMOD-1 can be programmed on the field using the following simple 3 steps*:

Step No 1

Power up the HDMOD-1 by adding the external power supply (12VDC/1A). The HDMOD-1

will need 20-30secs to initialize itself. The SSD (Seven Segment Display – No2) depicts the

initialization status.

Step No 2

On power-up the HDMOD-1 enters in

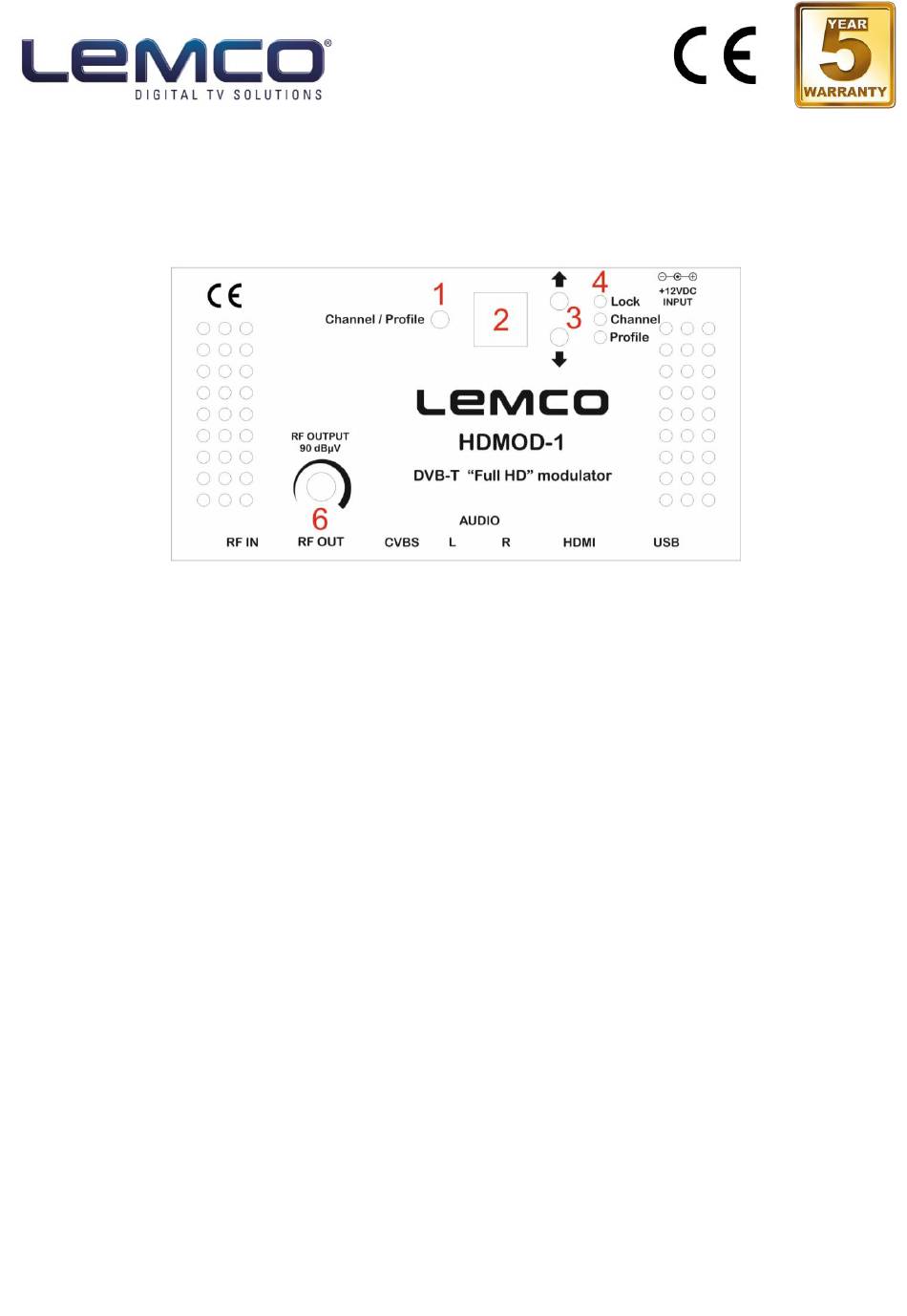

By pressing the "Channel/Profile" button (No.1) the user is able to switch between "Channel"

or "Profile" mode. With the "Up/Down" buttons (No.3) select the desired RF output channel

between VHF E05...E12 and UHF C21...C69. Wait 10secs for the PLL to lock.

Step No 3

Adjust the output RF level using the output 20dB attenuator from 70dBμV to 90dBμV.

Step No 4

"Profile

Select the

mode" and the Profile number beginning from No 1 and keep ascending

for each modulator in the same CATV installation.

For example:

Profile No 1

for the first modulator

Profile No2

for the second modulator

...

Profile No10

for the 10

*The HDMOD-1 offers advanced programming features from a PC software via a USB interface.

HDMOD-1

Quick start guide

"Chanel

mode" and the "Channel LED" (No.4) is on.

modulator etc...

Table of Contents

Do you have a question about the HDMOD-1 and is the answer not in the manual?

Page 1 HDMOD-1 Quick start guide 4-step installation guide The HDMOD-1 can be programmed on the field using the following simple 3 steps*: Step No 1 Power up the HDMOD-1 by adding the external power supply (12VDC/1A). The HDMOD-1 will need 20-30secs to initialize itself. The SSD (Seven Segment Display – No2) depicts the initialization status.
Page 2 You can download HDMOD-1’s full manual and software for advanced programming from product’s page at www.lemco.gr.  After 1min the HDMOD-1’s keypad will be locked. To unlock, keep the “Up/Down” buttons (No.3) pressed simultaneously for 5sec. approximately. This product complies with the relevant clauses of the European Directive 2002/96/EC.
