Item #XXXXXXXXXX
Model # YG464C-BN
USE AND CARE GUIDE

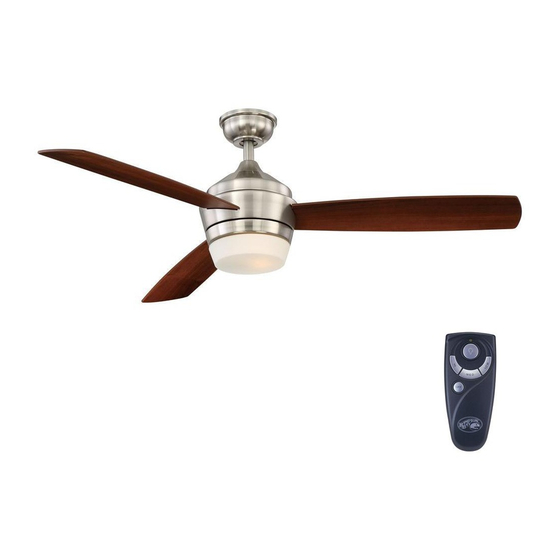

MARUCCI 52 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
THANK YOU
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY MARUCCI
Summary of Contents for HAMPTON BAY MARUCCI

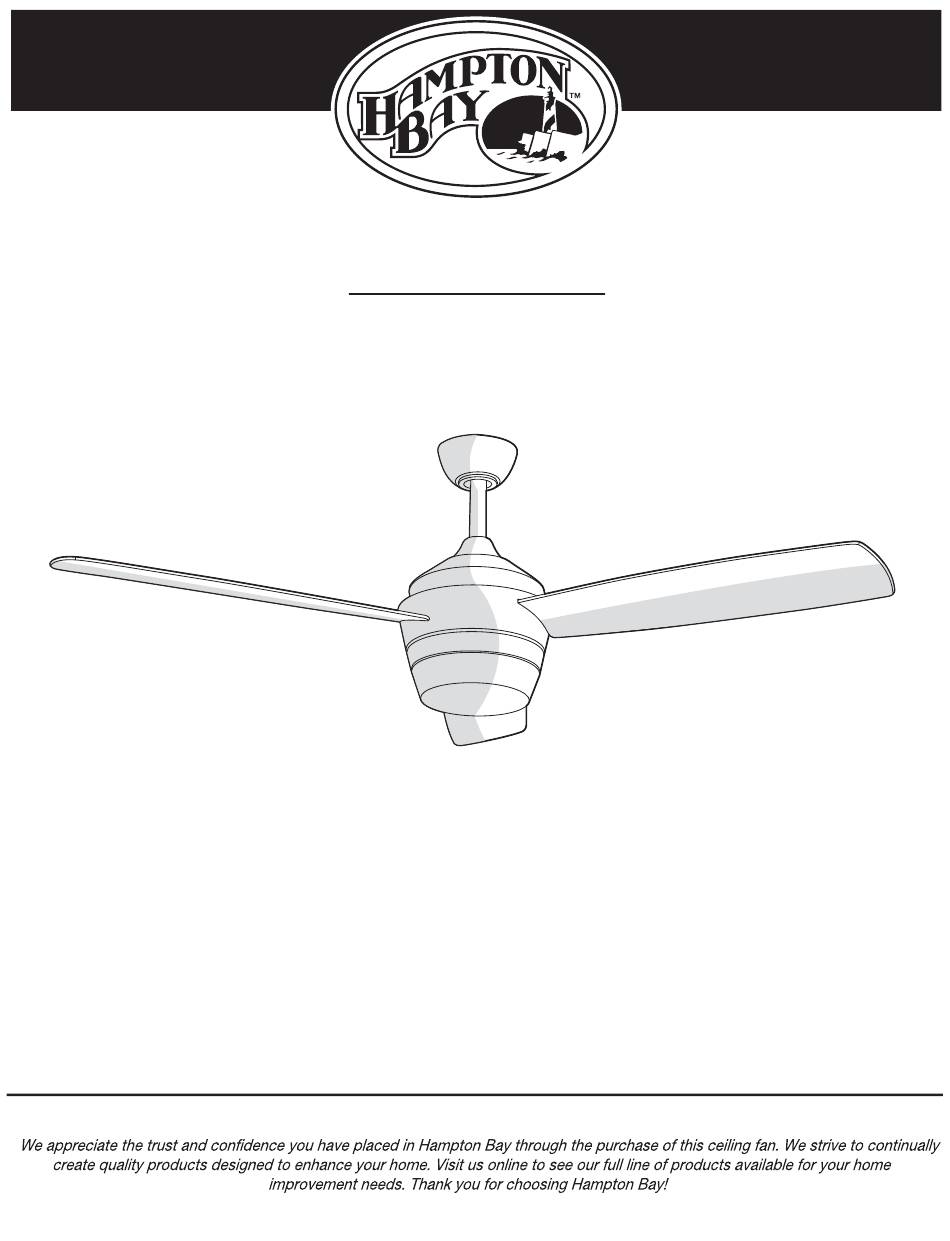

- Page 1 Item #XXXXXXXXXX Model # YG464C-BN USE AND CARE GUIDE MARUCCI 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............Operation ..............Remote Control Operating Instructions ........Safety Information ............Installing the Remote Control Holder ........Reverse Switch Operating Instructions ........Warranty ................. Care and Cleaning ............Pre-Installation .............. Troubleshooting ............Tools Required ................. Service Parts ............... -
