HAMPTON BAY MENA 32318 Use And Care Manual
HAMPTON BAY MENA 32318 Use And Care Manual

HAMPTON BAY MENA 32318 Use And Care Manual

54-inch ceiling fan

Advertisement

Quick Links

Part #: 268 528, 267 493
Model #: 32318, 32319
USN #: 324 561 541, 324 562 522
USE AND CARE GUIDE
MENA 54-INCH CEILING FAN
Questions, problems, missing parts?
Please call Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-431-3000
THANK YOU
We appreciate the trust and confidence you have placed in HD Supply through the purchase of this ceiling fan. We strive to continually create quality products
designed to enhance your customer's homes. Visit us online to see our full line of products available for your customers home improvement needs.
Thank you for choosing HD Supply!

Advertisement

loading
Need help?

Need help?

Do you have a question about the MENA 32318 and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY MENA 32318

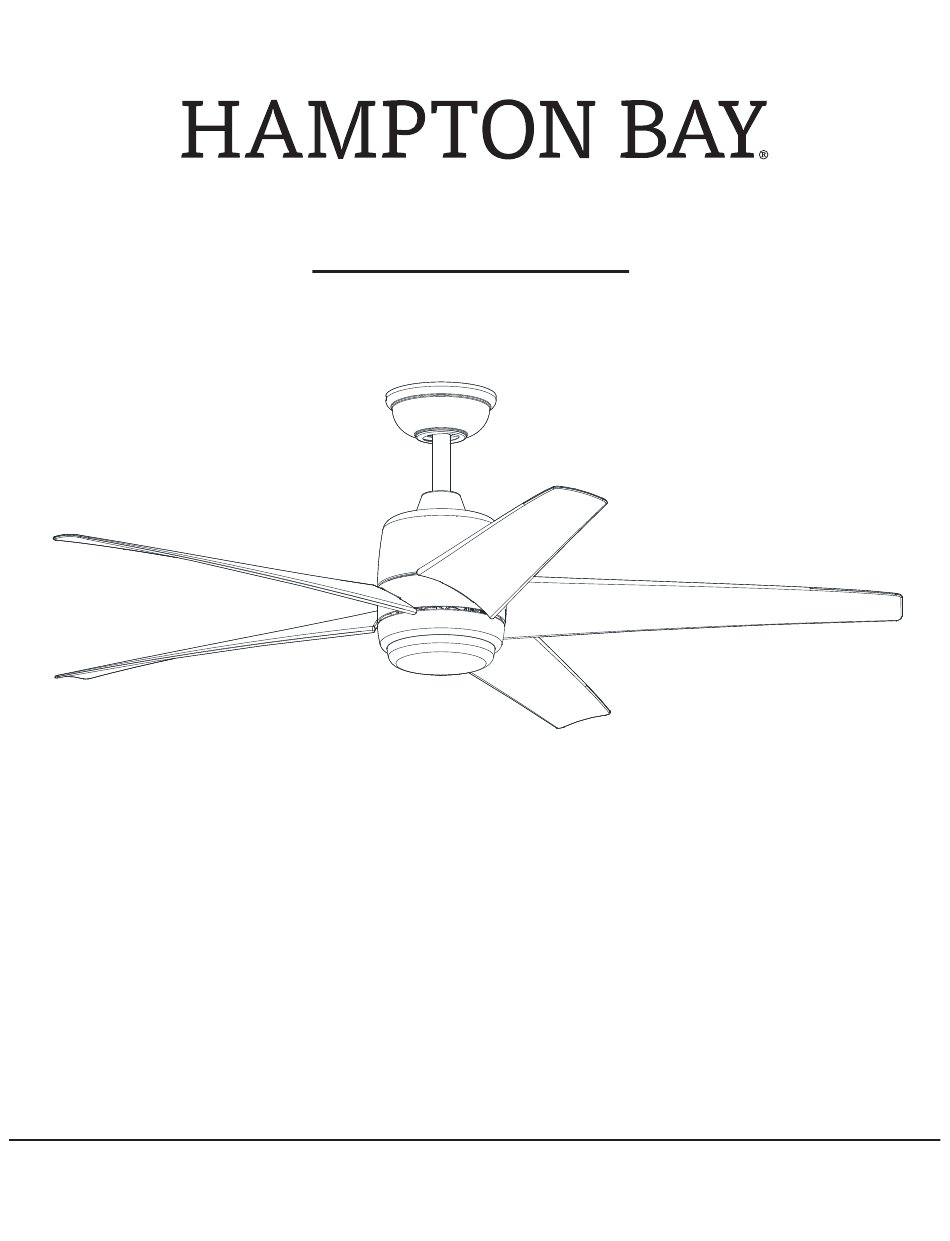

  • Page 1 Part #: 268 528, 267 493 Model #: 32318, 32319 USN #: 324 561 541, 324 562 522 USE AND CARE GUIDE MENA 54-INCH CEILING FAN Questions, problems, missing parts? Please call Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday. 1-800-431-3000 THANK YOU We appreciate the trust and confidence you have placed in HD Supply through the purchase of this ceiling fan.
  • Page 2 Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation.
  • Page 3 Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
  • Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire connecting nuts Hanger pin Locking pin...
  • Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Light kit assembly (inside canopy) Receiver Ball/downrod assembly Remote control Canopy Extension lead wire Decorative motor collar cover Battery Fan-motor assembly Blade IMPORTANT: This product and/or components are governed by one or more of the following U.S.
  • Page 6 Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock or NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped personal injury, mount to outlet box marked “Acceptable ceiling. The maximum angle allowable is 30° away from for fan support of 35 lbs.
  • Page 7 Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Route the wires exiting the top of the fan motor assembly (E) Remove the canopy ring (FF) from the canopy (C) by turning the through the center of the canopy ring (FF). Make sure the slots ring counter clockwise until it unlocks.
  • Page 8 Assembly - Hanging the Fan Attaching the fan to the Hanging the fan electrical box □ Carefully lift the fan-motor assembly (E) up to the slide-on WARNING: To reduce the risk of fire, electric shock or personal mounting bracket (A). injury, mount to outlet box marked “Acceptable for fan support □...
  • Page 9 Assembly - Hanging the Fan (continued) Preparing the remote control Installing the receiver NOTE: The remote control has already been paired to the WARNING: To reduce the risk of fire or electric shock, ceiling fan for your convenience. If you have two of the same remember to disconnect power.
  • Page 10 Assembly - Hanging the Fan (continued) Wiring the receiver to the Wiring the fan to the receiver household wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 8 in. lead wires for use with the electricity off at the main fuse box before wiring.
  • Page 11 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) □ Align the locking slots of the canopy (C) with the two screws (II) in the mounting bracket (A). Push up to engage the slots and turn clockwise to lock in place. □...
  • Page 12 Assembly - Attaching the Accessories Attaching the light kit fitter assembly □ Connect the wires from the light kit assembly (G) to the wires from the fan motor assembly (E) by connecting the molded adaptor plugs together. Carefully tuck all wires and splices into the switch cup and connect the safety cable (SS) from the light kit assembly (G) to the hook from motor assembly (E).
  • Page 13 Operating Your Fan and Remote Control Remote Control - Your fan is equipped with a remote control to operate A. Warm weather the speed and lights of your new ceiling fan. Speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on.
  • Page 14 Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □...
  • Page 15 Questions, problems, missing parts? Please call Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday. 1-800-431-3000 Retain this manual for future use. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 16 Parte #: 268 528, 267 493 Modelo #: 32318, 32319 USN #: 324 561 541, 324 562 522 GUÍA DE USO Y MANTENIMIENTO VENTILADOR DE TECHO MENA, DE 54 PLG (1.4 M) ¿Preguntas, problemas o piezas faltantes? llama al Servicio al Cliente de lunes a viernes entre 8 a.m. y 6 p.m., (hora del Este de EE. UU.) 1-800-431-3000 GRACIAS POR TU COMPRA Apreciamos la confianza que has depositado en HD Supply al comprar este ventilador de techo.
  • Page 17 Tabla de contenido Tabla de contenido .............. 2 Ensamblaje ................7 Información de seguridad........... 2 Funcionamiento ..............13 Garantía ................3 Mantenimiento y limpieza ..........14 Preinstalación ..............3 Solución de problemas ............. 14 Instalación ................6 Información de seguridad LEE Y GUARDA ESTAS INSTRUCCIONES.
  • Page 18 Garantía El proveedor garantiza de por vida que el motor del ventilador no presenta defectos de fabricación ni de materiales al momento del envío desde la fábrica hasta después de la fecha de adquisición por el comprador original. El proveedor garantiza, por un período de tres años a partir de la fecha de adquisicion por el comprador original, que el kit de luces, sin incluir ningun vidrio, no presentará...
  • Page 19 Preinstalación (continuación) SE INCLUYEN HERRAJES NOTA: Los herrajes no se muestran en tamaño real. Pieza Descripción Cantidad Tuercas plásticas de conexión de cables Pasador de soporte Pasador de cierre...
  • Page 20 Preinstalación (continuación) CONTENIDO DEL PAQUETE Pieza Descripción Cantidad Pieza Descripción Cantidad Soporte de montaje deslizante Soporte del kit de luces (dentro de la cubierta) Receptor Conjunto de tubo bajante/esfera Control remoto Cubierta Extensión de cable terminal Cubierta decorativa del collarín del motor Batería Conjunto motor-ventilador Aspa...
  • Page 21 Instalación OPCIONES DE MONTAJE NOTA: Tal vez necesites un tubo bajante más largo para mantener ADVERTENCIA: Para reducir el riesgo de incendio, descarga eléctrica la altura mínima adecuada de las aspas al instalar el ventilador o lesiones personales, instala sólo en una caja eléctrica clasificada en un techo inclinado.
  • Page 22 Ensamblaje - Montaje estándar en techo Preparación para el montaje Disposición de los cables □ □ Inserta los cables que salen por la parte superior del conjunto Retira el aro de cubierta (FF) de la cubierta (C), girándolo en motor-ventilador (E) a través del centro del aro de la cubierta (FF). Asegura sentido a las manecillas del reloj hasta soltarlo.
  • Page 23 Ensamblaje - Cómo colgar el ventilador Cómo fijar el ventilador a la caja Cómo colgar el ventilador eléctrica □ Hay que levantar con cuidado el conjunto motor-ventilador (E) ADVERTENCIA: Para reducir el riesgo de incendio, descarga eléctrica o hasta el soporte de montaje deslizante (A). lesiones personales, instala solo en una caja eléctrica clasificada como □...
  • Page 24 Ensamblaje - Cómo colgar el ventilador (continuación) Preparando el control remoto Cómo instalar el receptor NOTA: El control remoto ya ha sido configurado con el ADVERTENCIA: Para reducir el riesgo de incendio o de descarga eléctrica, recuerda desconectar la electricidad. El cableado ventilador de techo para tu conveniencia.
  • Page 25 Ensamblaje - Cómo colgar el ventilador (continuación) Cómo cablear el receptor al Cómo cablear el ventilador cableado del hogar al receptor ADVERTENCIA: Para evitar una posible descarga eléctrica, desconecta NOTA: El ventilador viene con cables terminales de 8 plg (20.32 cm) la electricidad en la caja principal de fusibles antes de realizar el para usar con el conjunto de tubo bajante/esfera (B) de 6 plg (15.24 cm) cableado.
  • Page 26 Ensamblaje - Cómo colgar el ventilador (continuación) Cómo montar el ensamblaje de motor- ventilador (montaje estándar) □ Alinea las ranuras de cierre de la cubierta (C) con los dos tornillos (II) del soporte de montaje (A). Empuja hacia arriba para enganchar las ranuras y gira de izquierda a derecha para asegurarlas en su lugar.
  • Page 27 Ensamblaje — Cómo montar los accesorios Cómo instalar el kit de luces □ Conecta los cables del soporte del kit de luces (G) a los cables del conjunto motor-ventilador (E) juntando los enchufes de adaptador moldeado. Coloca con cuidado todos los cables y empalmes dentro de la caja del interruptor y conecta el cable de seguridad (SS) del kit de luces (G) al gancho del ensamblaje del motor (E).
  • Page 28 Cómo usar tu ventilador y control remoto Control remoto: tu ventilador está equipado con un control remoto que A. Clima cálido regula la velocidad y las luces de tu ventilador de techo. Las configuraciones de velocidad para clima cálido o frío dependen de factores tales como tamaño de la habitación, altura del techo, cantidad de ventiladores y otros.
  • Page 29 Mantenimiento y limpieza ADVERTENCIA: Asegura que la corriente esté apagada antes de limpiar el ventilador. □ Debido al movimiento natural del ventilador, algunas conexiones pueden aflojarse. Revisa dos veces al año las conexiones de soporte, los soportes y los accesorios de las aspas. Comprueba que estén seguros. No es necesario desmontar el ventilador del techo. □...
  • Page 30 ¿Preguntas, problemas o piezas faltantes? llama al Servicio al Cliente de lunes a viernes entre 8 a.m. y 6 p.m., (hora del Este de EE. UU.) 1-800-431-3000 Conserva este manual para uso en el futuro. Este equipo fue sometido a prueba y se determinó que cumple con los límites establecidos para un dispositivo digital Clase B según la Parte 15 de las Normas FCC. Estos límites fueron establecidos para dar protección razonable contra la interferencia dañina en uso residencial.
