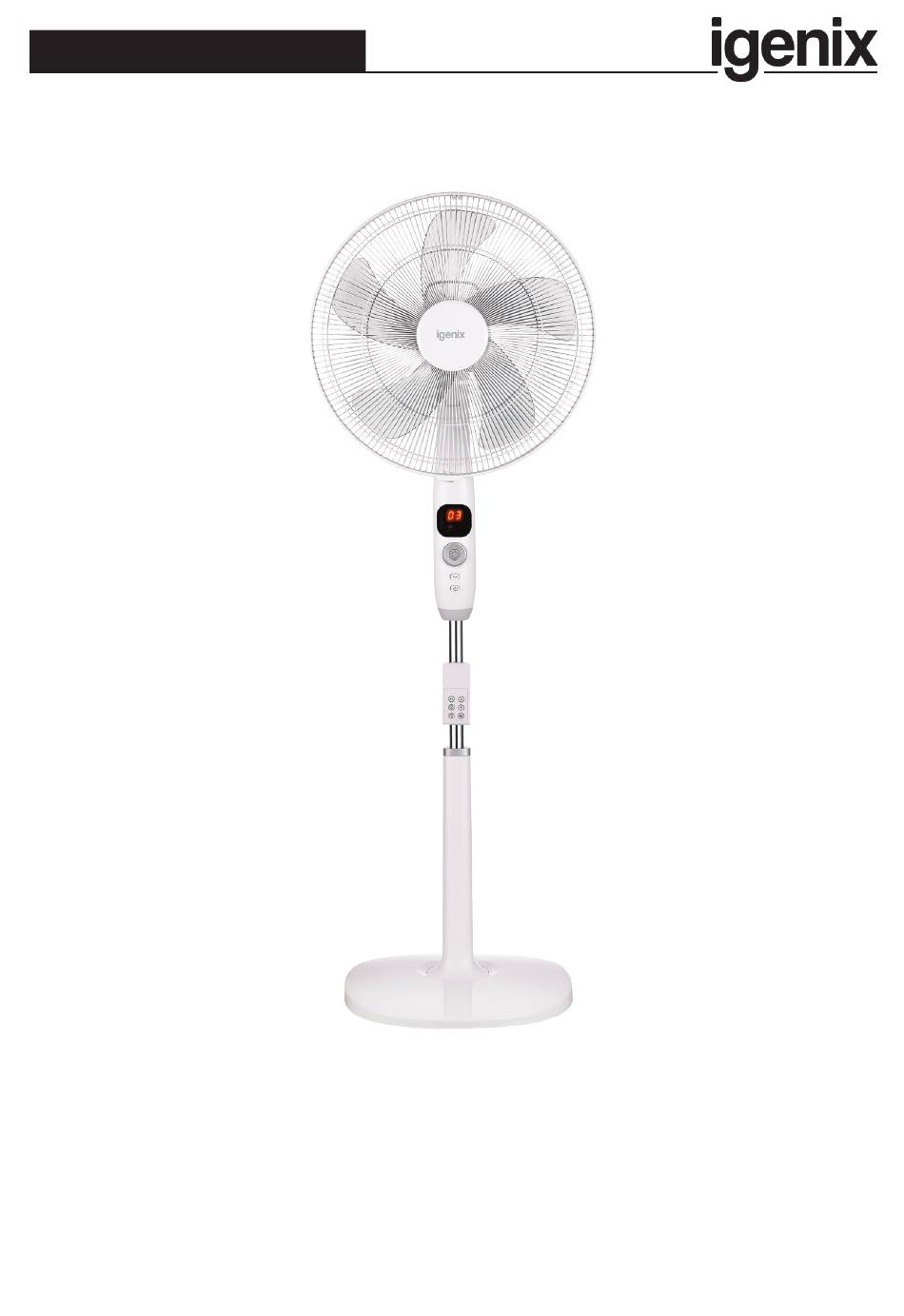

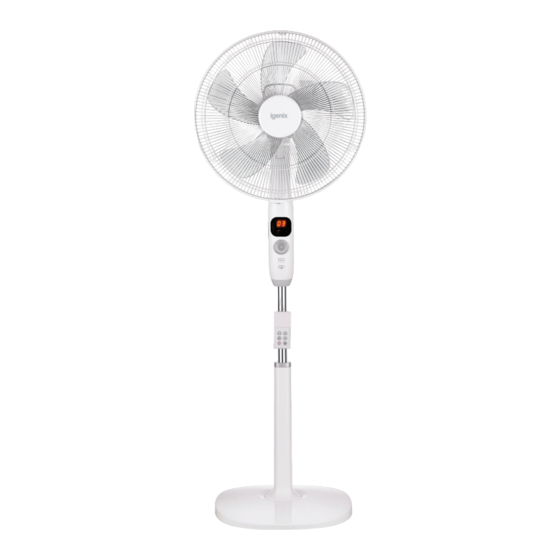

- Page 1 USER MANUAL 16 Inch DC Motor Pedestal Fan White DF1670 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ..........3-4 Specification .................5 Assembly Instructions ............6-7 Operating Instructions ............8-9 Cleaning and Maintenance ............. 10 Fuse Replacement ..............10 Trouble Shooting Guide ............11 Disposal Information ............... 11 Igenix Warranty Terms and Conditions ......12-13... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This appliance is intended for use in a domestic environment only. - Page 4 • Do not use the unit near a bath, shower, swimming pool or anywhere it could be splashed with water. • Do not expose the unit to direct sunlight. • Do not immerse the appliance or the electrical cord or plug in any type of liquid.
-
Page 5: Specification
SPECIFICATION Model No: DF1670 Brand Igenix Colour White Wattage (W) 25 W Frequency (Hz) 50 Hz Voltage (V) 220-240 V Product Dimensions (mm) H 1360 x W 400 x D 452 mm Net Weight (kg) 7.6 kg Oscillation Function Class... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS IMPORTANT: Remove parts from each seperate component before performing installation. Motor Shaft Motor Install by aligning Tighten Rear grill knob Pole Base Installation Align the column with the groove on the base and fix using the Base Nut: Base... - Page 7 Front and Rear Guard Installation 1. Align catch of the 2. Press guards 3. Self-Catch installation Front Guard with the sequentially with illustrated position of both hands the Rear Guard Guard Catch Front Grill Lock nut of blade: Lock nut of blade anticlockwise, then install the front fan cover...
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Remote Control MODE ON/OFF Timer SPEED Remote Batteries Battery IMPORTANT: Effective range of remote control: within 5m distance and 30 degree angle from front of product. * Note: Display will dim and not show LED after 30 seconds Display Speed/Timer Display Timer... - Page 9 Functions Natural - The wind will simulate the natural winds found outdoors and offer a unique natural wind setting. Sleep - The wind will be slumberous. You can chose this mode when you sleep. Silent - Speed to 0 - very light breeze, no noise. Instructions for Adjustment Height Adjustment Turn counter clockwise...
-
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Turn off the fan and remove the plug from the power supply before cleaning. • Use a dry, soft cloth to remove any dust from the fan. • If the fan is particularly dirty, use a soft damp cloth and wipe dry. •... -
Page 11: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Problem Possible Cause Possible Solution The appliance does not The appliance is not Plug the appliance in firmly. work. -
Page 12: Igenix Warranty Terms And Conditions
lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects. - Page 13 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
- Page 16 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
