Summary of Contents for iGenix DF1655

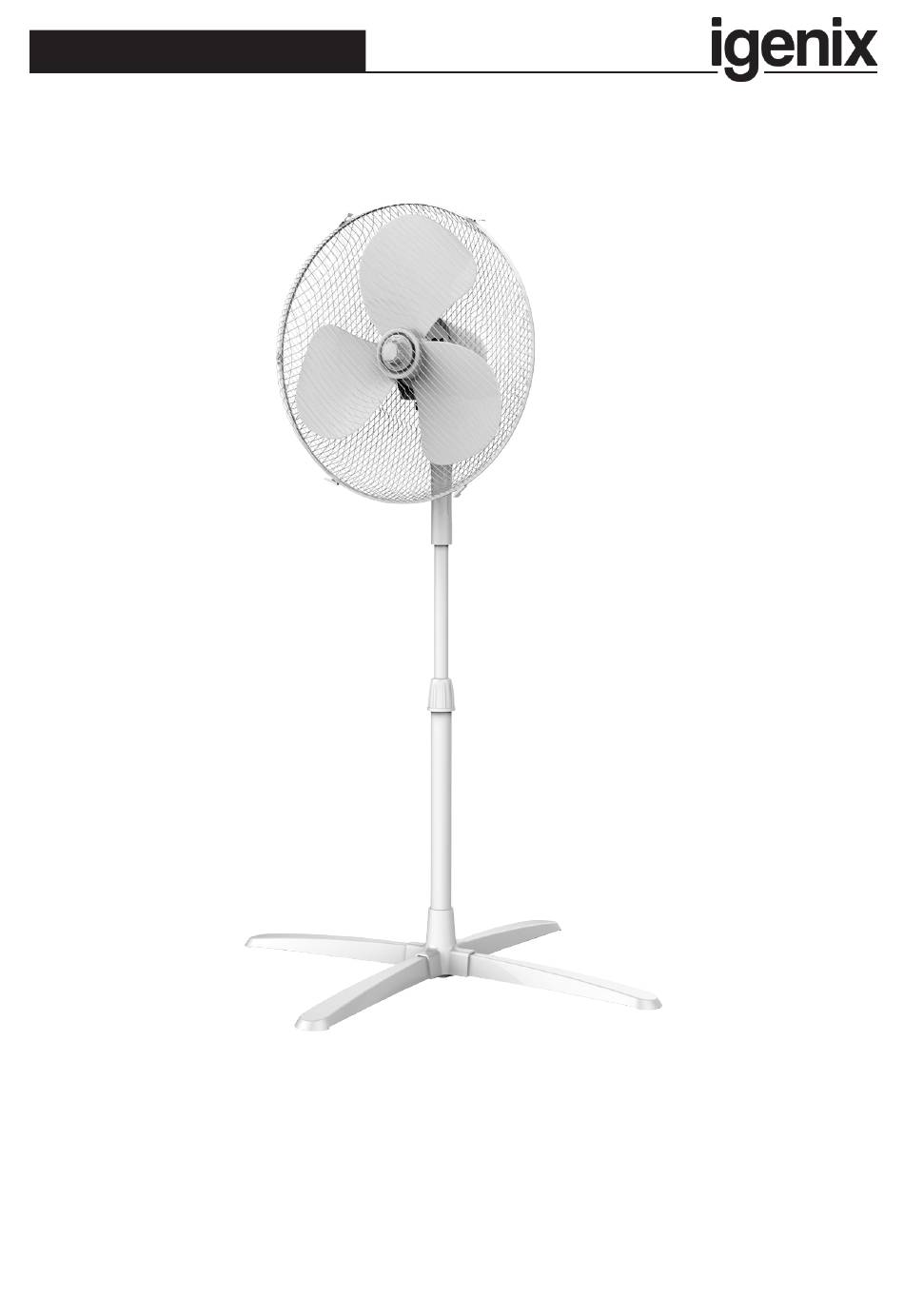

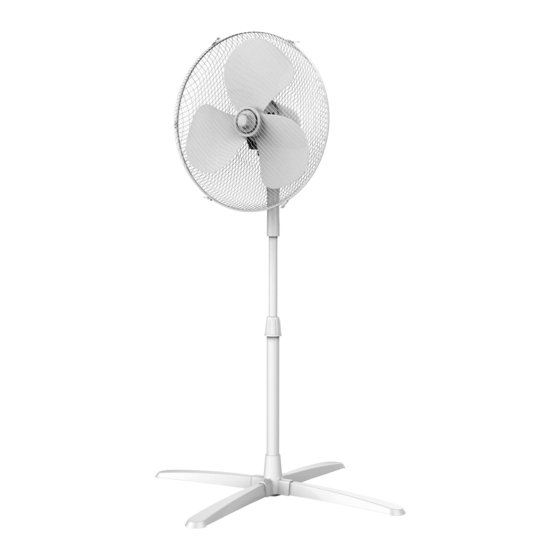

- Page 1 USER MANUAL 16 Inch White Pedestal Fan DF1655 PO Number: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ..........3-4 Specification .................5 Assembly Instructions ............6-8 Operating Instructions ...............9 Cleaning and Maintenance ............. 10 Fuse Replacement ..............10 Trouble Shooting Guide ............11 Disposal Information ............... 11 Igenix Warranty Terms and Conditions ......14-15... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This appliance is intended for use in a domestic environment only. - Page 4 sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Unplug the unit from the socket when not in use. Do not pull on the cord.
-
Page 5: Specification
SPECIFICATION Model No: DF1655 Brand Igenix Colour White Wattage (W) 40 W Frequency (Hz) 50 Hz Voltage (V) 220-240 V Product Dimensions (mm) H 1250 x W 700 x D 700 mm Net Weight (kg) 2.93 kg Oscillation Function Class... -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Front Grill Plastic Nut Fan Blade Motor Shaft Motor Housing Tighten Rear Grill Loosen Internal Pole Fan Blade Nut Fasten Height Adjustment Nut Extension Pole Cross Base Connector Stand... - Page 7 1. Take the unit out of the box, removing any packaging. 2. Insert the base of the extension pole into the top of the cross base connector (the side without the grooves). (Fig.1) 3. Insert the 4 stand feet into the cross base connector. The feet should have the flat edge facing the floor.
- Page 8 Grill and Fan Blade Assembly 1. Either unscrew the fan blade nut and plastic nut (if attached to the unit) or remove them from the packaging. Fix the rear grill to the motor shaft and secure it by screwing the plastic nut. (Fig.6) 2.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS On/Off and Speed Control Speed is controlled by the knob on the motor housing: 0 = Off 1 = Low 2 = Medium 3 = High Oscillation Adjustment Push the oscillation knob down to start oscillation. Pull the oscillation knob up to stop oscillation. -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Turn off the fan and remove the plug from the power supply before cleaning. • Use a dry, soft cloth to remove any dust from the fan. • If the fan is particularly dirty, use a soft damp cloth and wipe dry. •... -
Page 11: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Problem Possible Cause Possible Solution The appliance does not The appliance is not Plug the appliance in firmly. work. -
Page 14: Igenix Warranty Terms And Conditions
lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects. - Page 15 To qualify for the 2 year warranty you must register your product within 30 days of purchase. The full Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk...
- Page 16 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
