Summary of Contents for iGenix DF1655

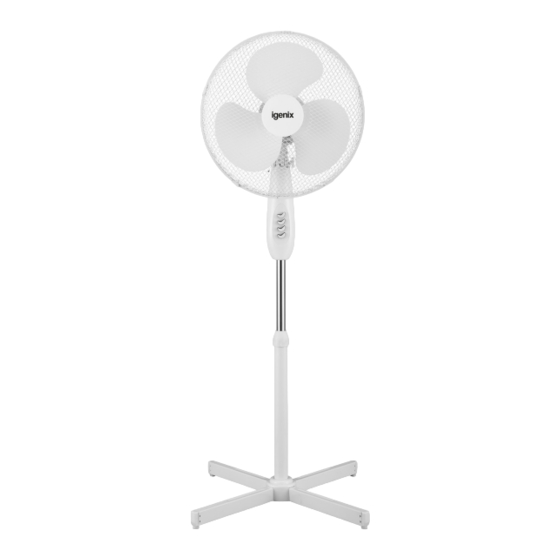

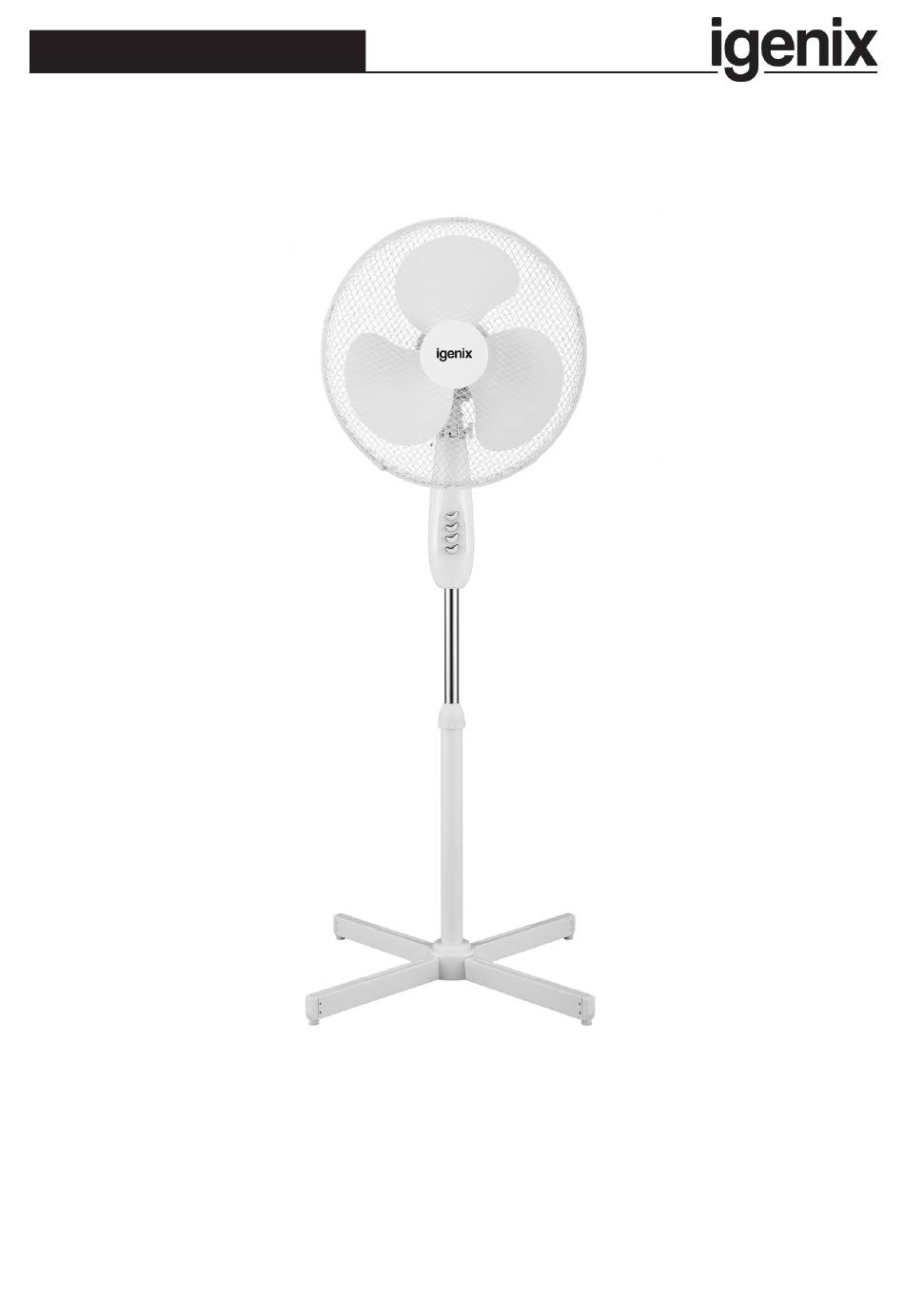

- Page 1 USER MANUAL 16 Inch White Pedestal Fan DF1655 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ..........3-4 Specification .................5 Appliance Overview ..............6 Assembly Instructions ............6-7 Operating Instructions ...............8 Cleaning and Maintenance ............9 Fuse Replacement ...............9 Trouble Shooting Guide ............10 Disposal Information ............... 10 Igenix Warranty Terms and Conditions ......14-15... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This appliance is intended for use in a domestic environment only. - Page 4 sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Unplug the unit from the socket when not in use. Do not pull on the cord.
-
Page 5: Specification
SPECIFICATION Model No: DF1655 Brand Igenix Colour White Wattage (W) 50 W Frequency (Hz) 50 Hz Voltage (V) 220-240 V Product Dimensions (mm) H 1240 x W 620 x D 620 mm Net Weight (kg) 2.5 kg Oscillation Function Class... -
Page 6: Appliance Overview
APPLIANCE OVERVIEW Fig 1: 1. Front Guard 2. Locking Screw 3. Blade Cap 4. Fan Blade 5. Locking Nut 6. Handle 7. Rear Guard 8. Holes Motor Spindle 9. Motor Spindle 10. Clips 11. Motor 12. Oscillation Control 13. Fan Control Box 14. - Page 7 Assembly • Loosen and remove the four bolts (18) from the two bars of the base (22 & 23). Cross the two bars as shown in fig 1. • Position the flange (21) on the base and align the holes. •...
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS On/Off and Speed Control The on/off and speed is controlled by the button switch. 0 = Off 1 = Low 2 = Medium 3 = High Height Setting • Loosen the height adjustment collar (16) by turning it anti-clockwise (fig 2). •... -
Page 9: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Turn off the fan and remove the plug from the power supply before cleaning. • Use a dry, soft cloth to remove any dust from the fan. • If the fan is particularly dirty, use a soft damp cloth and wipe dry. •... -
Page 10: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Problem Possible Cause Possible Solution The appliance does not The appliance is not Plug the appliance in firmly. work. -
Page 14: Igenix Warranty Terms And Conditions
lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects. - Page 15 Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk To register your product, please complete all sections of the form below and return to us at the following address: lgenix, 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR.
- Page 16 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
