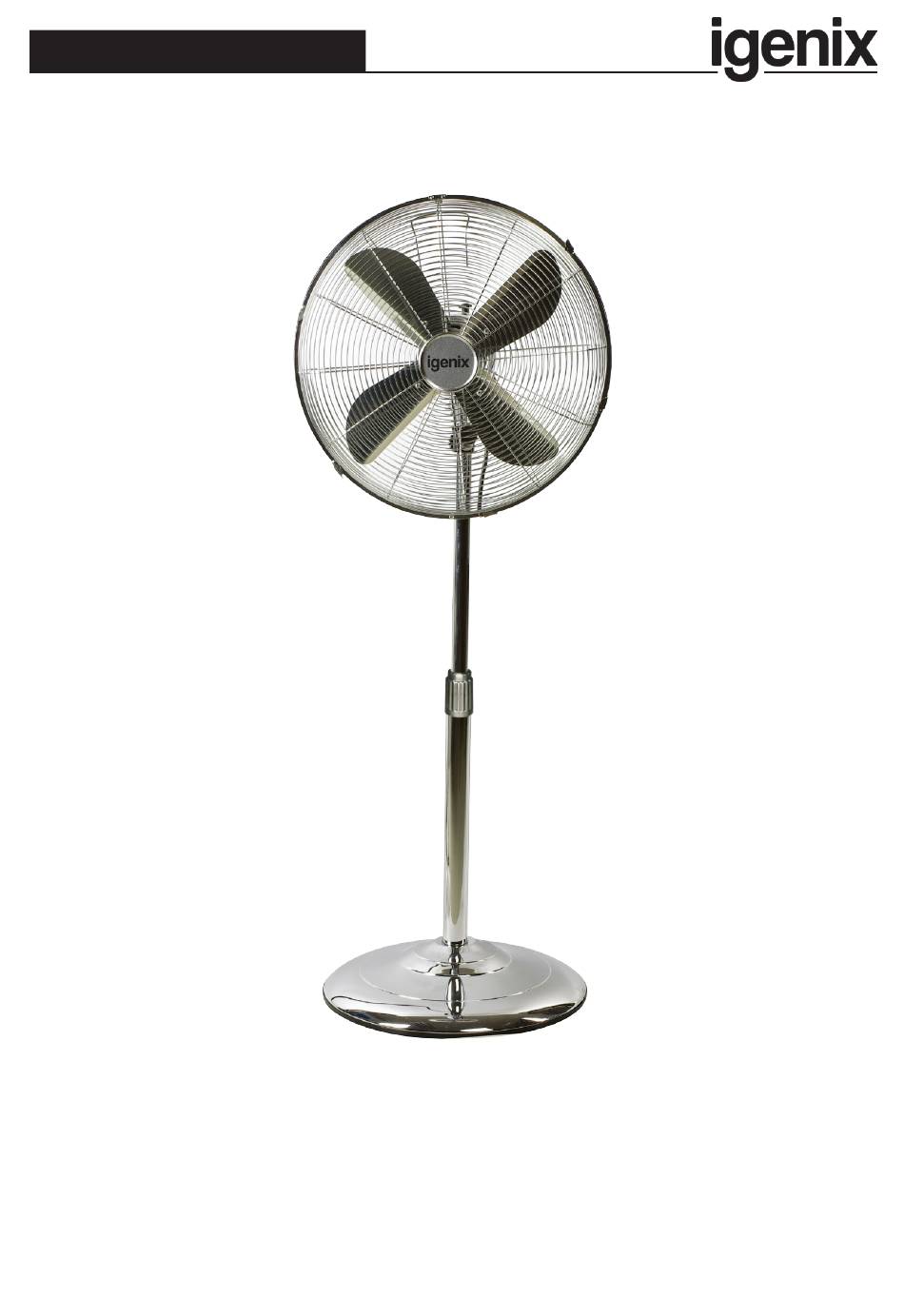

USER MANUAL
16 Inch Chrome Pedestal Fan
DF1660
Batch code:
Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF1660 and is the answer not in the manual?

Questions and answers

Related Manuals for iGenix DF1660

Summary of Contents for iGenix DF1660

  • Page 1 USER MANUAL 16 Inch Chrome Pedestal Fan DF1660 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ..........3-4 Specification .................5 Appliance Overview ..............6 Assembly Instructions ..............7 Operating Instructions ...............8 Cleaning and Maintenance ............8 Fuse Replacement ...............8 Trouble Shooting Guide .............9 Disposal Information ..............9 Igenix Warranty Terms and Conditions ......10-11...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This appliance is intended for use in a domestic environment only.
  • Page 4 • Do not use the unit near bath, shower, swimming pool or anywhere it could be splashed with water. • Do not expose the unit to direct sunlight. • Do not immerse the appliance or the electrical cord or plug in any type of liquid.

  • Page 5: Specification

    SPECIFICATION Model No: DF1660 Brand Igenix Colour Chrome Wattage (W) 45 W Frequency (Hz) 50 Hz Voltage (V) 220-240 V Product Dimensions (mm) H 1300 x W 400 x D 400 mm Net Weight (kg) 5.4 kg Oscillation Function Overheat Protection...

  • Page 6: Appliance Overview

    APPLIANCE OVERVIEW Fig 1: Fig 2: Fan Head (Motor) 1. Front Guard 10. Inner Tube 2. Blade 11. Height Adjustment Lock 3. Screws 12. Outer Tube 4. Rear Guard 13. Base 5. Fan Blade Screw 14. Base Weight 6. Oscillation Knob 15.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Fan Assembly • Position the rear guard over the motor shaft, ensuring that the notches are correctly aligned and then secure in place with the four screws. • Align the fan blade with the flat part on the motor shaft and slot into place and secure by tightening the fan blade screw fully.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS 1. Ensure the control knob is in the off position (0) and then plug in. 2. Adjust the fan speed by twisting the control knob 0 = Off I = Low II = Medium III = High 3. To oscillate fan, push the oscillate knob down, which is located at the top of the fan head (motor).

  • Page 9: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Problem Possible Cause Possible Solution The appliance does not The appliance is not Plug the appliance in firmly. work.

  • Page 10: Igenix Warranty Terms And Conditions

    lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects.
  • Page 11 Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk To register your product, please complete all sections of the form below and return to us at the following address: lgenix, 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR.
  • Page 12 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
