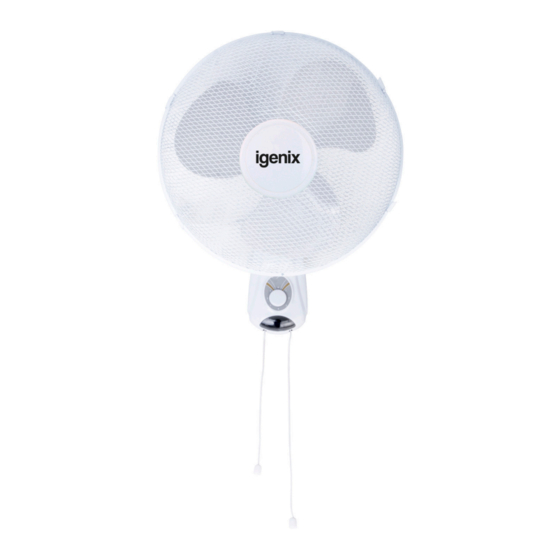

16 inch wall mounted fan white
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

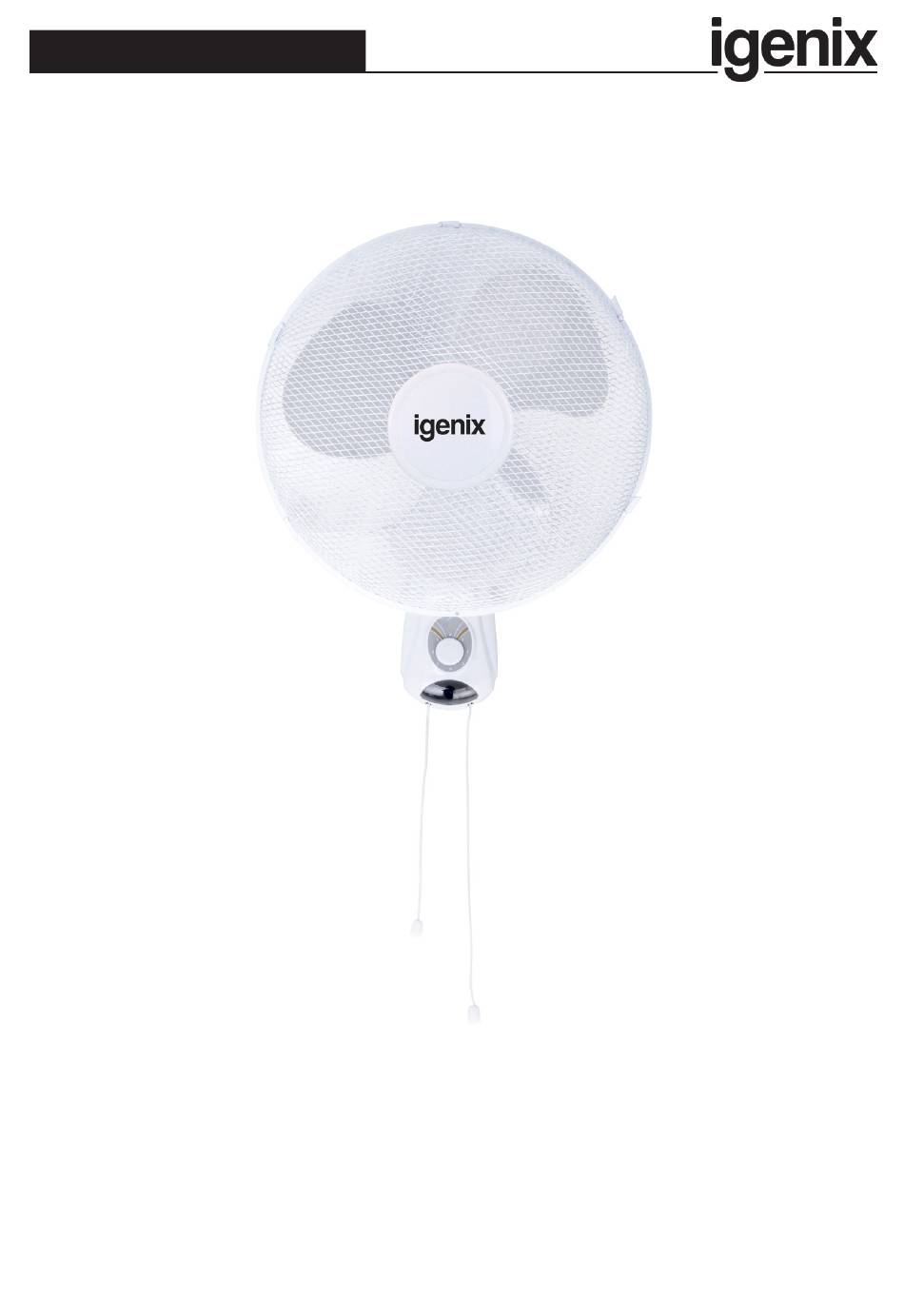

USER MANUAL
16 Inch Wall Mounted Fan White
DF1656
Batch code:
Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF1656 and is the answer not in the manual?

Questions and answers

Related Manuals for iGenix DF1656

Summary of Contents for iGenix DF1656

  • Page 1 USER MANUAL 16 Inch Wall Mounted Fan White DF1656 Batch code: Please read these instructions carefully before use and retain for future reference Before switching on your appliance, always check for any damage which may have been caused in transit...

  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions ..........3-4 Specification .................5 Appliance Overview ..............6 Assembly Instructions ..............7 Operating Instructions ...............8 Cleaning and Maintenance ............8 Fuse Replacement ...............8 Trouble Shooting Guide .............9 Disposal Information ..............9 Igenix Warranty Terms and Conditions ......10-11...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read and follow all of the instructions even if you feel you are familiar with the product, and find a place to keep this manual handy for future reference. Important: This appliance is intended for use in a domestic environment only.
  • Page 4 sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. • Unplug the unit from the socket when not in use. Do not pull on the cord.

  • Page 5: Specification

    SPECIFICATION Model No: DF1656 Brand Igenix Colour White Wattage (W) 45 W Frequency (Hz) 50 Hz Voltage (V) 220-240 V Product Dimensions (mm) H 530 x W 300 x D 430 mm Net Weight (kg) 2 kg Class Oscillation Function...

  • Page 6: Appliance Overview

    APPLIANCE OVERVIEW 1. Logo Panel 2. Front Guard 3. Fan Blade Cap 4. Fan Blade 5. Rear Guard Nut 6. Rear Guard 7. Fan Motor 8. Speed Pull Cord 9. Oscillation Pull Cord 10. Wall Mount Bracket 11. Wall Screws 12.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. Remove rear guard nut (5) from the fan motor (7). 2. Fit rear guard (6) by positioning it on the location pins at the top and bottom. Use the rear guard nut (5) to secure the rear guard to the motor shaft.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS 1. Plug the appliance into a suitable power socket and switch power socket on. 2. The appliance can be controlled by either the control dial or with the pull cords. 3. To switch on using the pull cord, pull the speed pull cord, at first it will start on the low speed, pull the same cord additional times for the desired fan speed - once for low, twice for medium, and three times for high.

  • Page 9: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE If you experience difficulties with the appliance, please check the suggestions below before contacting customer services on 01473 271272: Problem Possible Cause Possible Solution The appliance does not The appliance is not Plug the appliance in firmly. work.

  • Page 10: Igenix Warranty Terms And Conditions

    lgenix Warranty Terms & Conditions This product is guaranteed for a period of 12 months as standard from the date of purchase against mechanical and electrical defects. You can extend your warranty for a further 12 months by registering your product. Upon registration we will cover your product for a period of 24 months from the original purchase date against any mechanical or electrical defects.
  • Page 11 Terms & Conditions of our warranty policy are shown on the opposite page. They are also available on our website. www.igenix.co.uk To register your product, please complete all sections of the form below and return to us at the following address: lgenix, 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR.
  • Page 12 38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR Tel. 01473 271 272 Disclaimer: Igenix operate a policy of continual improvement and development. We therefore reserve the right to change/alter the specification and appearance of our appliances without prior notice. All diagrams and images shown in this manual are for illustration purposes only.
