DESCRIPTION

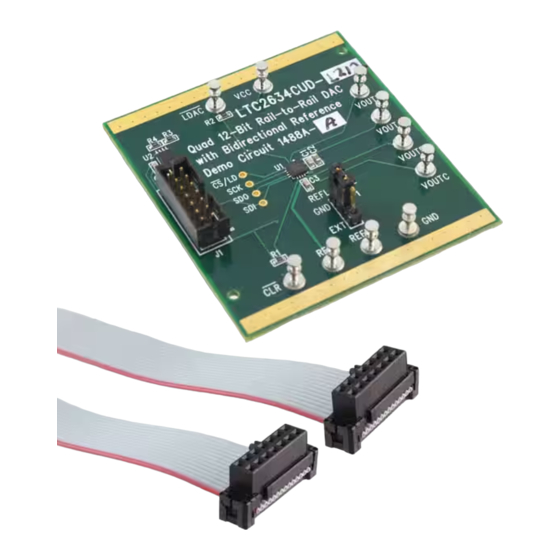

Demonstration circuit 1488A features the LTC
12-bit DAC. This device has an integrated, high accuracy,
low drift reference. It has a rail-to-rail output buffer and is
guaranteed monotonic. This DAC communicates through
the simple SPI/MICROWIRE compatible interface.
2634 quad
®
TO DC590
DEMOBOARD TYPE
LTC2634 VARIATION
DC1488A-A
LZ
DC1488A-B
LMI
DC1488A-C
HZ
DC1488A-D
HMI

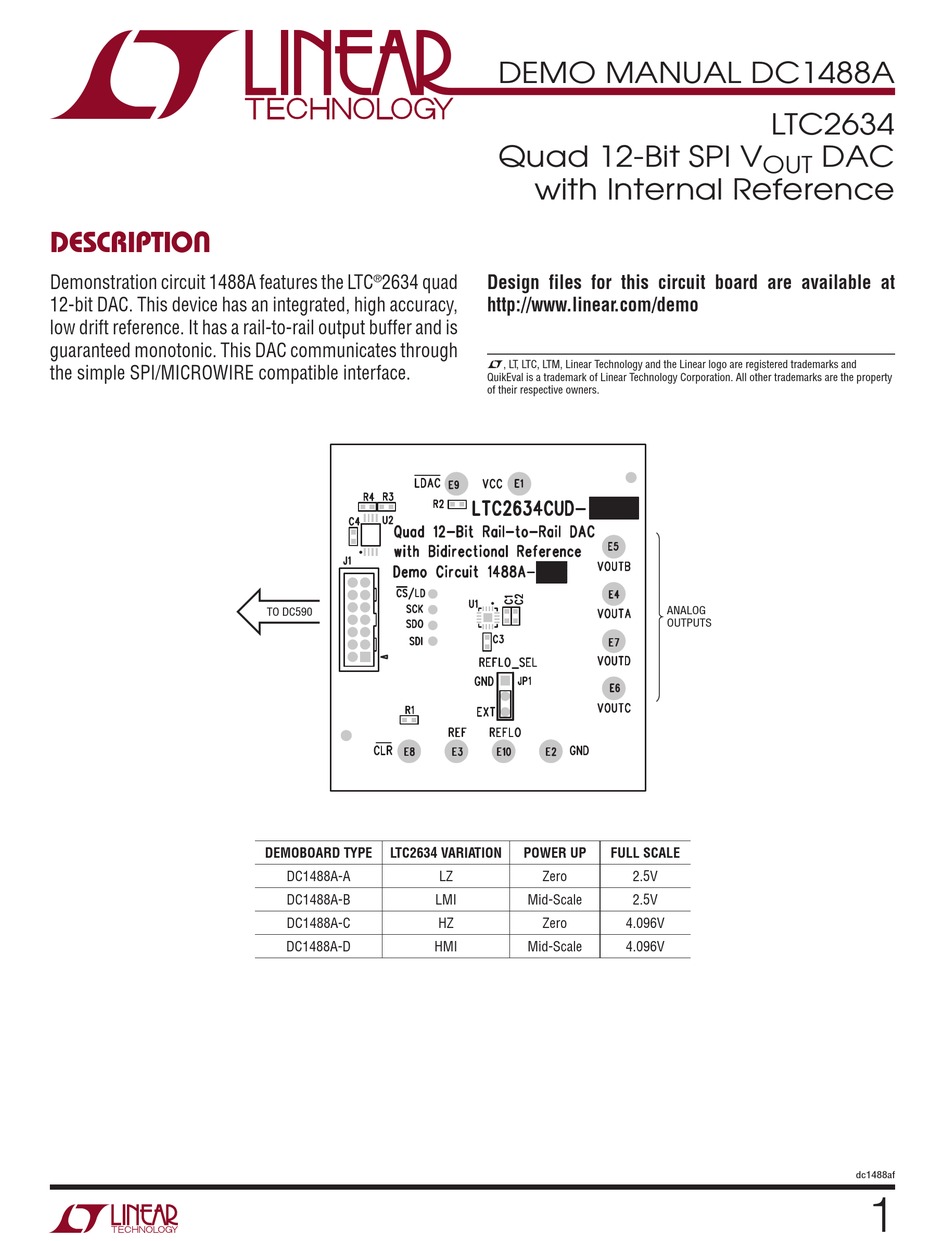

DEMO MANUAL DC1488A
Quad 12-Bit SPI V
with Internal Reference
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property
of their respective owners.
POWER UP
FULL SCALE
Zero
2.5V
Mid-Scale
2.5V
Zero
4.096V
Mid-Scale
4.096V
LTC2634
DAC
OUT
ANALOG
OUTPUTS
dc1488af
1
Advertisement
Table of Contents
Related Manuals for Linear Technology DC1488A Series
Summary of Contents for Linear Technology DC1488A Series
- Page 1 It has a rail-to-rail output buffer and is guaranteed monotonic. This DAC communicates through L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and the simple SPI/MICROWIRE compatible interface. QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
-
Page 2: Quick Start Procedure
DEMO MANUAL DC1488A QUICK START PROCEDURE HARDWARE SETUP Connect DC1488A to a DC590 USB serial controller using Analog Connections the supplied 14 conductor ribbon cable. Connect DC590 to DAC Outputs: The four DAC outputs from the LTC2634 a host PC with a standard USB A/B cable. Run the evalu- are brought out to turrets labeled V through V OUTA... -
Page 3: Schematic Diagram
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. - Page 4 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
- Page 5 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Analog Devices Inc. DC1488A-C DC1488A-B DC1488A-D DC1488A-A...
