Summary of Contents for Iqua PHB-2

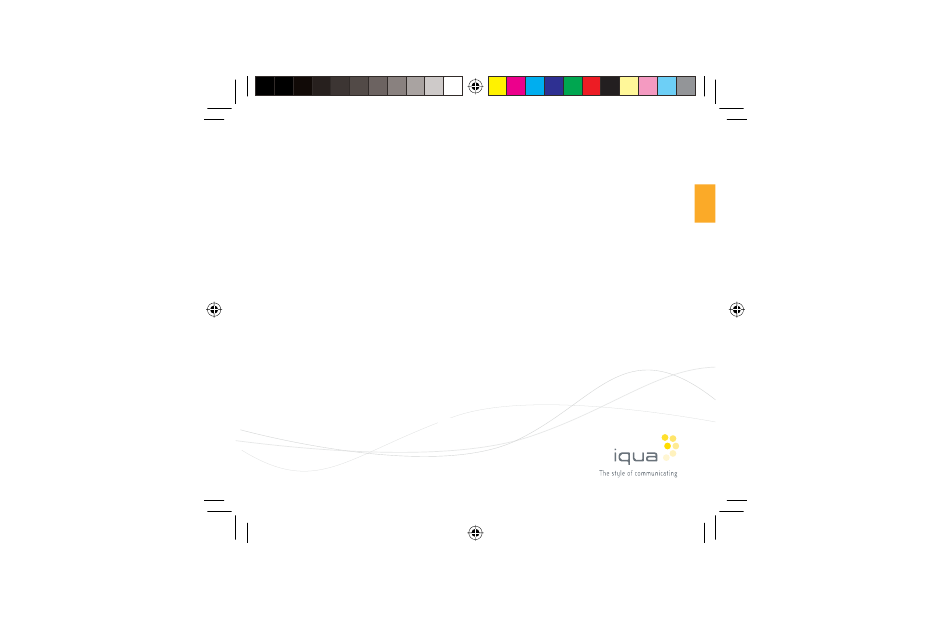

- Page 1 ® Bluetooth Headset Badge BHS-608 User Guide kansilehti_608.indd 1 kansilehti_608.indd 1 19.6.2005 20:55:59 19.6.2005 20:55:59...
-
Page 3: Table Of Contents
BHS-608_UG_en.fm Page 1 Wednesday, August 10, 2005 4:27 PM ENGLISH ® About Bluetooth Technology ....................2 Introduction ........................... 3 Getting Started ........................6 Charging the Battery ......................7 Pairing Smart Badge with Your Mobile Phone ............... 7 Disconnecting Smart Badge from a Phone ................9 Reconnecting the paired Smart Badge to a Phone ............... -
Page 4: About Bluetooth ® Technology
Headset or Handsfree profiles. For the latest compatibility information, please visit us at www.iqua.com. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by IQUA is licensed. Other trademarks and trade names belong to their respective owners. -
Page 5: Introduction
BHS-608_UG_en.fm Page 3 Wednesday, August 10, 2005 4:27 PM Introduction Thanks for purchasing a Iqua Bluetooth Smart Badge BHS-608. Your Smart Badge is a stylish product that enables comfortable hands-free communication with compatible mobile phones that supports Bluetooth wireless technology. - Page 6 BHS-608_UG_en.fm Page 4 Wednesday, August 10, 2005 4:27 PM (1) Power key Power on/off and mute button, switches the headset on and off or mutes the on-going call. (2) Indicator Light • Power on - green light flashes 5 times and beeps once •...
- Page 7 BHS-608_UG_en.fm Page 5 Wednesday, August 10, 2005 4:27 PM (6) Send / End key • Answer incoming call • Switch between the headset and phone mode by pressing the button for a long time • Redial the last number dialed by pressing the button twice when no call is being made •...
-
Page 8: Getting Started
BHS-608_UG_en.fm Page 6 Wednesday, August 10, 2005 4:27 PM Getting Started Remove all of the components from the package: 1. Smart Badge 2. USB cable 3. Plastic window 4. Carrying Case 5. Travel Charger 6. User Guide Figure 2... -
Page 9: Charging The Battery
BHS-608_UG_en.fm Page 7 Wednesday, August 10, 2005 4:27 PM Charging the Battery Before using Smart Badge, you must charge the product for approximately 5 hours. Once the battery is fully charged, it will provide up to 40 hours of talk time and up to 600 hours of standby time. - Page 10 BHS-608_UG_en.fm Page 8 Wednesday, August 10, 2005 4:27 PM Activate the Bluetooth connection from the phone. For more information, see your phone's User Guide. Set the phone to search for Bluetooth devices as instructed in your phone's User Guide. Select BHS-608 from the list. Enter the pin code 0000 to connect (or "pair") your Smart Badge and your phone Your Smart Badge will beep once, after which a blinking blue indicator light will indicate that the Bluetooth connection is active.
-
Page 11: Disconnecting Smart Badge From A Phone
BHS-608_UG_en.fm Page 9 Wednesday, August 10, 2005 4:27 PM Disconnecting Smart Badge from a Phone To disconnect your Smart Badge from your phone, do any one of the following: • Turn off the Smart Badge. • Disconnect the Smart Badge in the phone menu. •... -
Page 12: Powering Up
BHS-608_UG_en.fm Page 10 Wednesday, August 10, 2005 4:27 PM Powering Up To turn on the Smart Badge Press and hold down the Power key for 2 seconds. The Smart Badge will beep and the green indicator light start to blink. The blinking will continue for approximately 10 minutes or until the headset is connected to a compatible phone. -
Page 13: Rejecting A Call
BHS-608_UG_en.fm Page 11 Wednesday, August 10, 2005 4:27 PM Rejecting a Call When you receive an incoming call that you do not want to answer, simply press the Send/ End key twice. Redialing the Last Dialed Number Press the Send/End key twice when no call is in progress. Muting an on-going Call You can mute or unmute the on-going call by briefly pressing the Power key. -
Page 14: Switching The Call Between Phone And Headset Mode
BHS-608_UG_en.fm Page 12 Wednesday, August 10, 2005 4:27 PM Switching the Call between Phone and Headset Mode Press and hold the Send/End key or use the Respect function in your phone. Switching between on-going calls and waiting calls When a call is being made and another call is coming in, simply press the Volume down key and hold it down for 2 seconds or use the respect function in your phone. -
Page 15: Warning
BHS-608_UG_en.fm Page 13 Wednesday, August 10, 2005 4:27 PM Warning Headset – Please turn off your Smart Badge before putting it in your pocket or bag. If it is not turned off and the Send/End key is pressed accidentally, the headset may answer a call with you knowing it. -
Page 16: Product Specifications
BHS-608_UG_en.fm Page 14 Wednesday, August 10, 2005 4:27 PM Product Specifications Bluetooth Specification: Version 1.2 Bluetooth Profile Supported: Headset and Handsfree Profiles Rang of Frequency: 2.4GHz Spectrum Dimensions: 100mm (L) x 70mm (W) x 13mm (H) Weight: 45 g (main body) Nominal Charging Time: Within 5 hours Talk time:... - Page 17 BHS-608_UG_en.fm Page 15 Wednesday, August 10, 2005 4:27 PM 12 MONTH LIMITED WARRANTY IQUA Ltd. warrants that this product is free from material and workmanship defects for a period of 12 months from date of purchase provided the following terms of this warranty are satisfied.
- Page 18 IQUA Ltd. reserves the right to make changes or improvements in design or manufacture without having any obligation to install such changes in existing and sold products.
