Land Pride RCB5710 Operator's Manual

Rotary cutters
Hide thumbs

Advertisement

Quick Links

Download this manual

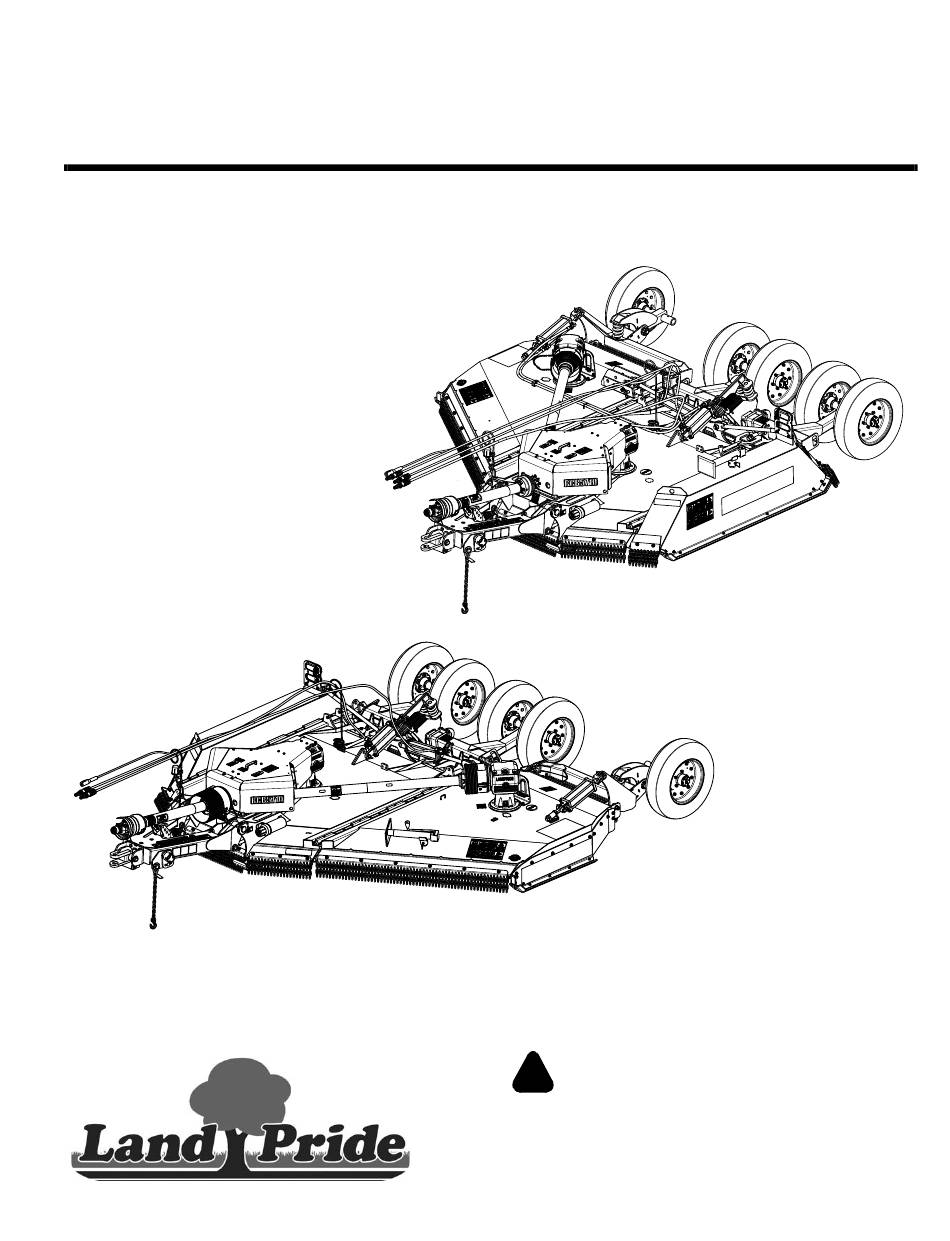

Rotary Cutters
RCB(M)5710 & RCB(M)L5710
74114
RCB(M)L5710 Rotary Cutter
Table of Contents
74099
RCB(M)5710 Rotary Cutter
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
337-049M
Operator's Manual
Printed 6/16/20
