3. Quick Start

Introduction to the Structure of the Oscilloscope

This chapter makes a simple description of the operation and function of the oscilloscope,
enabling you to be familiar with the use of the oscilloscope in the shortest time.

Front Panel

The front panel has knobs and function buttons. Through the function buttons, you can
enter different function menus or obtain a specific function application directly.
1. LCD touchscreen
2. CH1 – CH2 buttons: Access to setting menu of CH1 – CH2.
3. Power button: Power on/off
4. The A knob:
When one of the CH1 – CH2buttons is lighted, this knob is used to adjust the vertical
position of current channel,
When HOR button is lighted, this knob is used to adjust the horizontal positions of all
channels (including mathematical operations).
When Trigger button is lighted, this knob is used to adjust trigger level.
5. HOR button: When the button light is off, press to light on, the A and B knob are for
horizontal system. Press to switch between the normal mode and the waveform
Multicomp-Pro
1
13

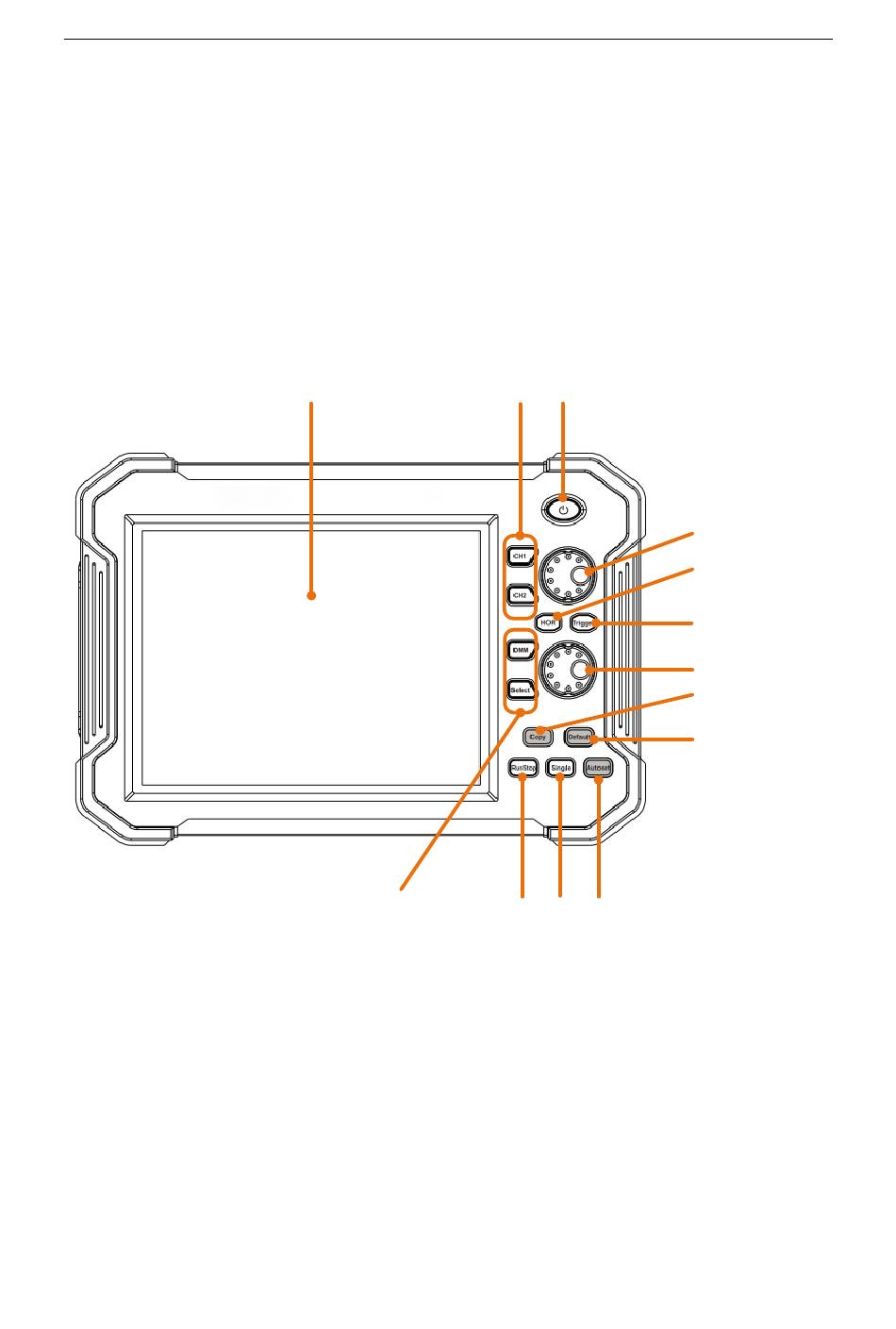

Figure 3-1 Front panel
4
2 3
12 11
10
4
5
6
7
8
9
