1. Click the
call out the trigger menu in the bottom. The trigger setting can be changed.
2. When the Trigger button is lit, use the A knob to change the trigger level setting.
By turning the A knob, the trigger indicator in the screen will move up and down.
With the movement of the trigger indicator, it can be observed that the trigger
level value displayed in the screen changes accordingly.
Note: Turning the A knob can change trigger level value and it is also the hotkey
to set trigger level as the vertical mid point values of the amplitude of the trigger
signal.
3. Click the
which is mainly applied to the "Normal" and "Single" trigger modes.

Touchscreen Controls

You can control the oscilloscope by different gestures. The touchable icon at the top right
of the screen is used to enable (
The instruction of touchscreen controls is as below.
 Run/Stop: Click the
waveform sampling.
 Force trigger: Click the
signal, which is mainly applied to the "Normal" and "Single" trigger modes.
 Autoset: Click the
 Select a menu item: Touch the menu items in the bottom menu, or in the right menu,
or in the left menu.
 Switch menu items: If there are options that can be switched on the menu, you can
repeatedly touch the area of the menu item to switch, or push the corresponding
button to switch. See figure below:
Multicomp-Pro
Upper knob: adjust trigger level
When the Trigger button is lit

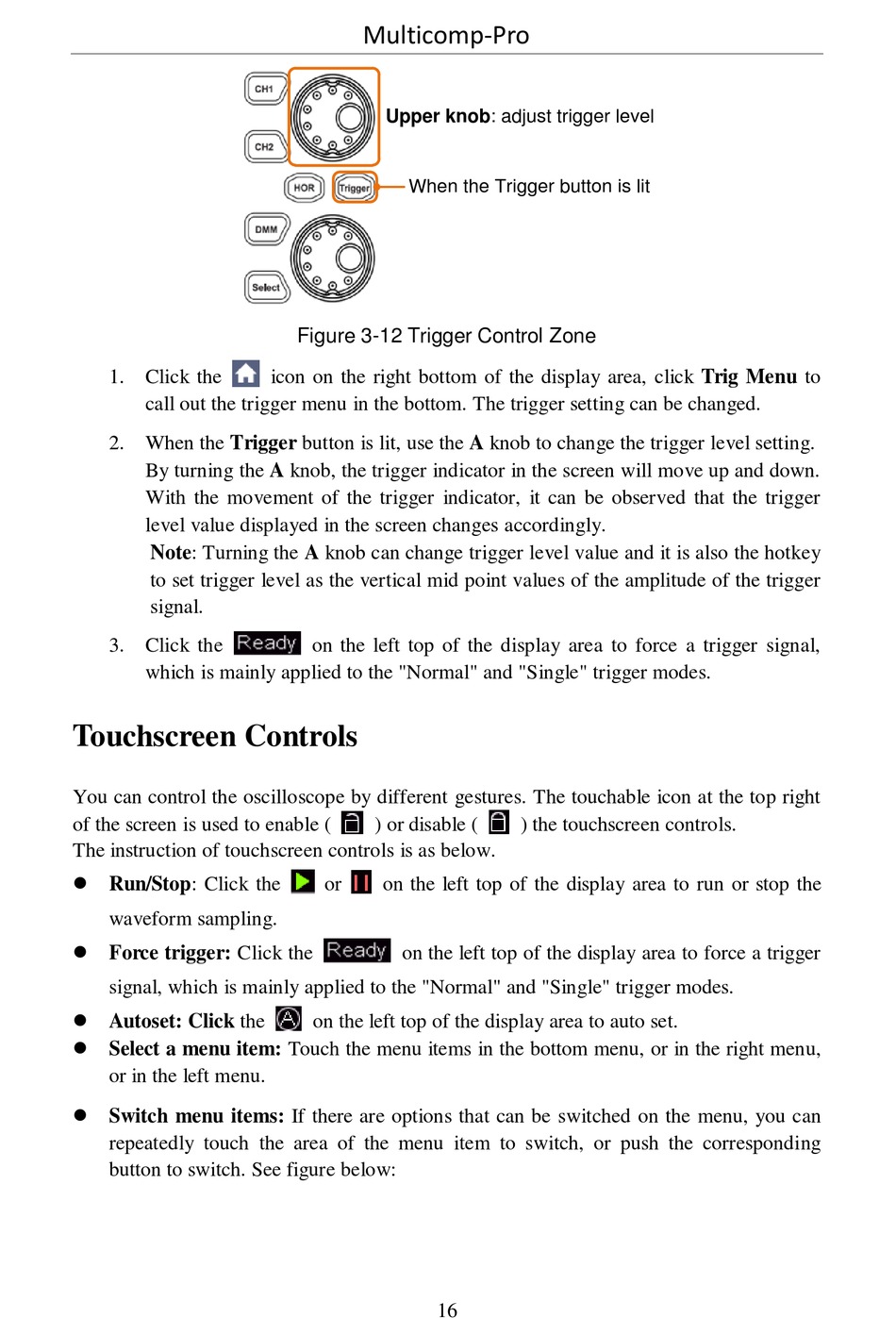

Figure 3-12 Trigger Control Zone
icon on the right bottom of the display area, click Trig Menu to
on the left top of the display area to force a trigger signal,
) or disable (
or on the left top of the display area to run or stop the
on the left top of the display area to force a trigger
on the left top of the display area to auto set.
16
) the touchscreen controls.
