multicomp pro MP720644 Quick Manual page 13

How to Set the Probe Attenuation
probe with the CH1 channel. If a probe hook tip is used, ensure that it keeps in
close touch with the probe. Connect the probe tip with the signal connector of the
probe compensator and connect the reference wire clamp with the ground wire
connector of the probe connector, and then push the Autoset button on the front
panel.
2. Check the displayed waveforms and regulate the probe till a correct
compensation is achieved (see Figure 3-6 and Figure 3-7).
Overcompensated

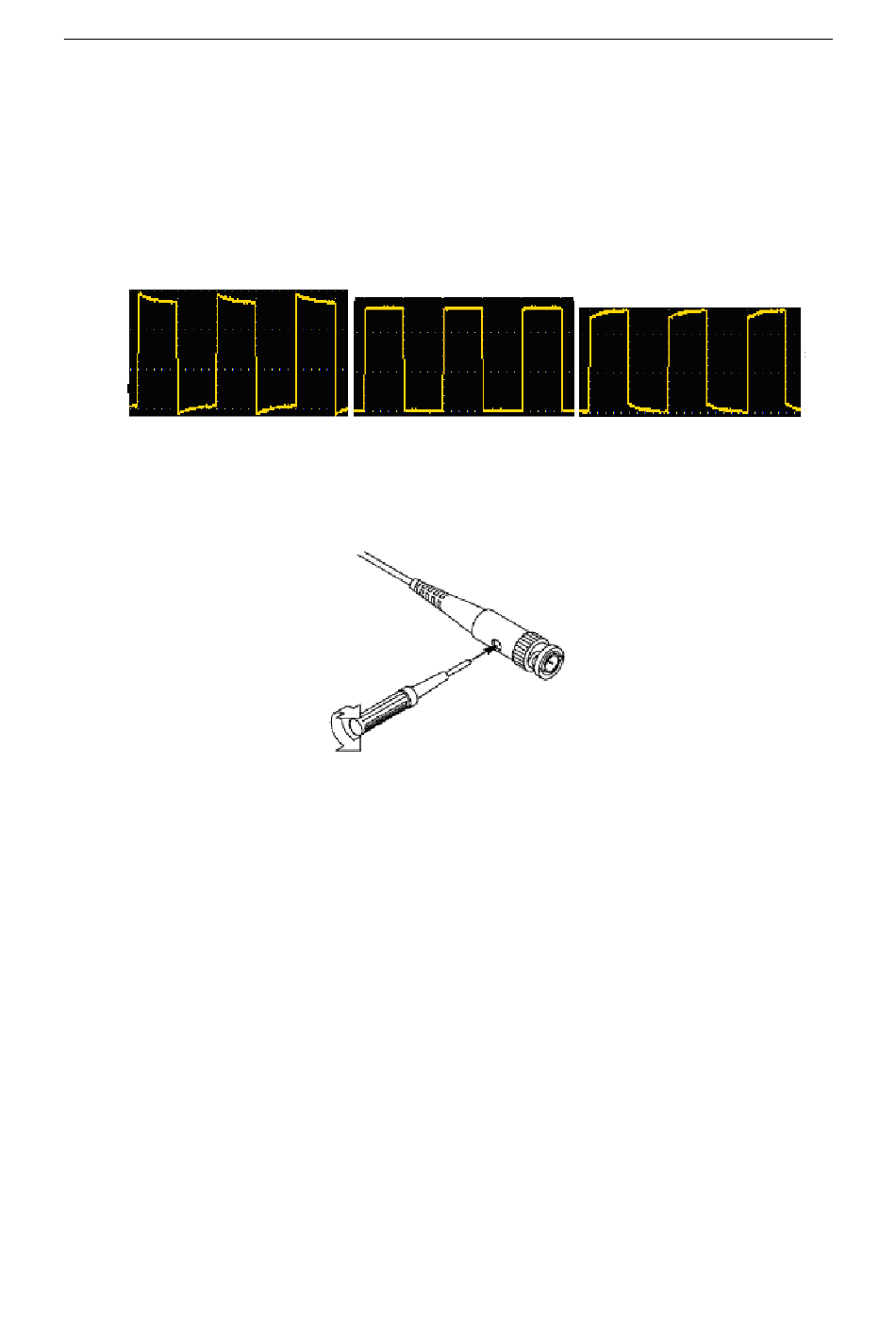

Figure 3-6 Displayed Waveforms of the Probe Compensation
3. Repeat the steps mentioned if needed.
Multicomp-Pro
Coefficient
Compensated correctly
Figure 3-7 Adjust Probe
11
" on P11), and connect the
Under compensated
