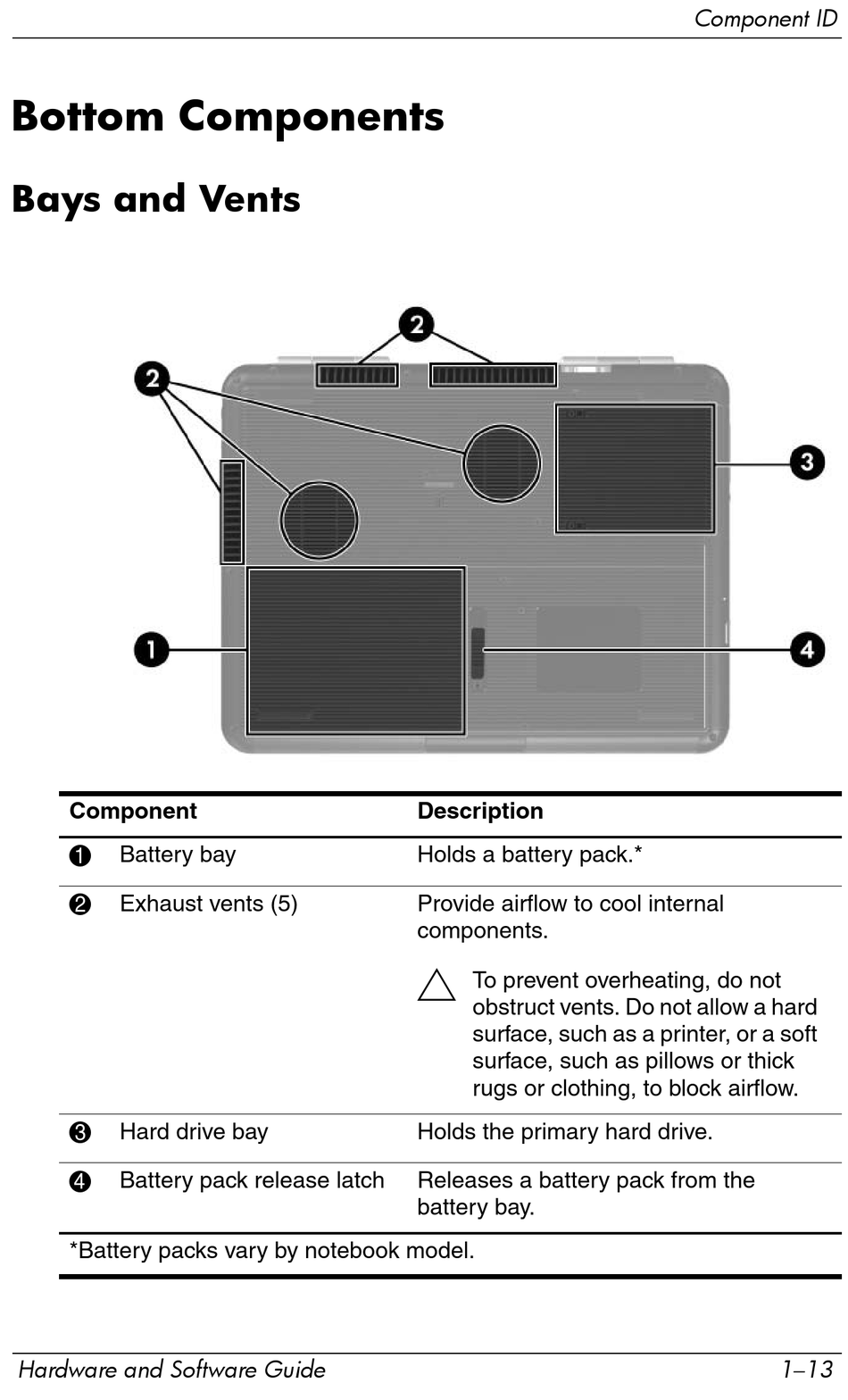

Bottom Components
Bays and Vents
Component
1
Battery bay
2
Exhaust vents (5)
3
Hard drive bay
4
Battery pack release latch
*Battery packs vary by notebook model.
Hardware and Software Guide
Description
Holds a battery pack.*
Provide airflow to cool internal
components.
Ä
To prevent overheating, do not
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as pillows or thick
rugs or clothing, to block airflow.
Holds the primary hard drive.
Releases a battery pack from the
battery bay.
Component ID
1–13
