Summary of Contents for KKT KOLBE KF905EDF
- Page 1 Instruction and Installation Manual for your ceramic hob Model: KF905EDF Version: 1.0 / 140506...
- Page 2 Safety Warnings Your safety is important to us. Please • Failure to install the appliance correctly read this information before using your could invalidate any warranty or liability cooktop. claims. This appliance is designed for private and Operation and maintenance home use and intended for heating food.
- Page 3 • Failure to use caution could result in abrasive cleaning agents to clean your injury or cuts. cooktop, as these can scratch the Induc- tion glass. Important safety instructions • If the power supply cable is damaged, it must only be replaced by a qualified •...
- Page 4 For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. Instruction and Installation manual Ceramic hob - Modell: KF905EDF Version: 1.0...
-
Page 5: Table Of Contents
Table of content Overview 1. Product overview 2. Product informations 3. Before using your new hob 4. Using the Touch Controls 5. Choosing the right Cookware 6. Using the Ceramic hob 6.1 Start cooking 6.2 After cooking 7. Double zone function 8. -
Page 6: Product Overview

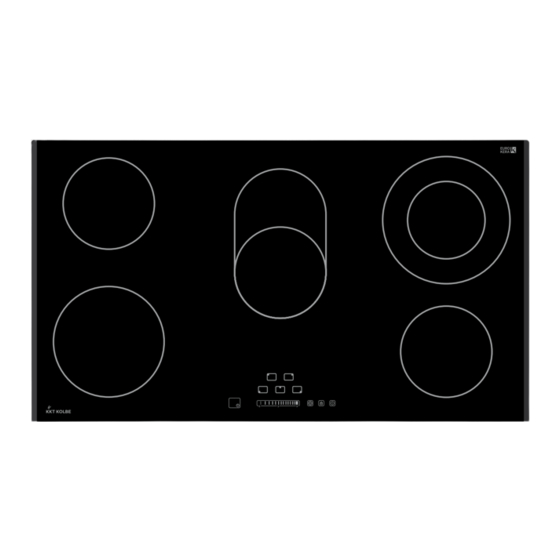

Product overview 1. Product overview Top view Zone Zone max. max. 1200W 1000W/ 2200W Zone max. 1100W/ 2000W Zone Zone max. max. 1800W 1200W Keylock Control panel control Heating zone selection controls ON/OFF- control Dual Timer Power/Timer Zone control slider touch Control control... -
Page 7: Product Informations
Before using your hob 2. Product Information The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The ceramic cooker hob centers on customers and adopts personalized design. -
Page 8: Using The Ceramic Hob
Using your Ceramic Hob Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. - Page 9 Using your Ceramic Hob Ajust heat setting by touching the the slider control. mehr Leistung • If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.
-
Page 10: Double Zone Function
The Double Zone Function 7. The Double Zone Function • The function only work in 3# and 4# cooking zone • The dual cooking zone has two cooking areas that you can use a central section and an outer section. You can use the central section (A) independently or both sections (B) at once. -
Page 11: Locking The Controls
Locking the controls 8. Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control. -
Page 12: Using The Timer
Using the Timer 9. Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, it will not turn any cooking zone off when the set time is up. •... -
Page 13: Setting The Timer To Turn One Or More Cooking Zones Off
Using the Timer 5. When the time is set, it will begin to count down immediately. The display will show the remaining time 6. Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the setting time finished. 9.2 Setting the timer to turn one or more cooking zones off If the timer is set on one zone:... -
Page 14: Cooking Guidelines
Cooking Guidelines 10. Cooking Guidelines Risk of fire! Be careful when frying, as oil and grease heat very quickly. Oil and grease can easily catch fire at extremely high temperatures even. Cooking Tips • When food comes to the boil, reduce the power setting. •... -
Page 15: Care & Cleaning
Care and Cleaning 12. Care and Cleaning The following settings should only be considered as guidelines. The exact procedure depends on several factors, including your cookwa- re and the amount you want to cook. Experiment a little with the hob to find the right settings for you. -
Page 16: Hints And Tipps
Cooking guidelines What? How? Important! Spillovers on the 1. Switch the power to the • The cooktop may beep and touch controls cooktop off. turn itself off, and the touch 2. Soak up the spill controls may not function 3. Wipe the touch control area while there is liquid on them. -
Page 17: Technical Specification
Technical Specification 14. Technical Specification KF905EDF Model Cooking Zones 220-240V ~ Supply Voltage Installed Electric Power 7600-9200W 900x520x51 Product Size L×W×H(mm) 870x490 Building-in Dimensions A×B (mm) Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice. - Page 18 Installation Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.
- Page 19 Installation A: Screw B: Bracket C: Screw hole D: Base Adjust the bracket position to suit for different work surface’s thickness. Cautions • The ceramic cooker hob must be installed by qualified personnel or tech- nicians. We have professionals at your service. Please never conduct the operation by yourself.
-
Page 20: Connecting The Hob To The Mains Power Supply
Connecting the hob to the main power supply 16. Connecting the hob to the mains power supply The power supply should be connected in compliance with the rele- vant standard, or a single-pole circuit breaker. The method of connection is shown below. •... - Page 21 Disposal This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
- Page 22 Vielen Dank fürs Lesen. Wir wünschen Ihnen viel Spaß beim Kochen. Thanks for reading. We wish you much fun while cooking. Version: 1.0 / 140506...
