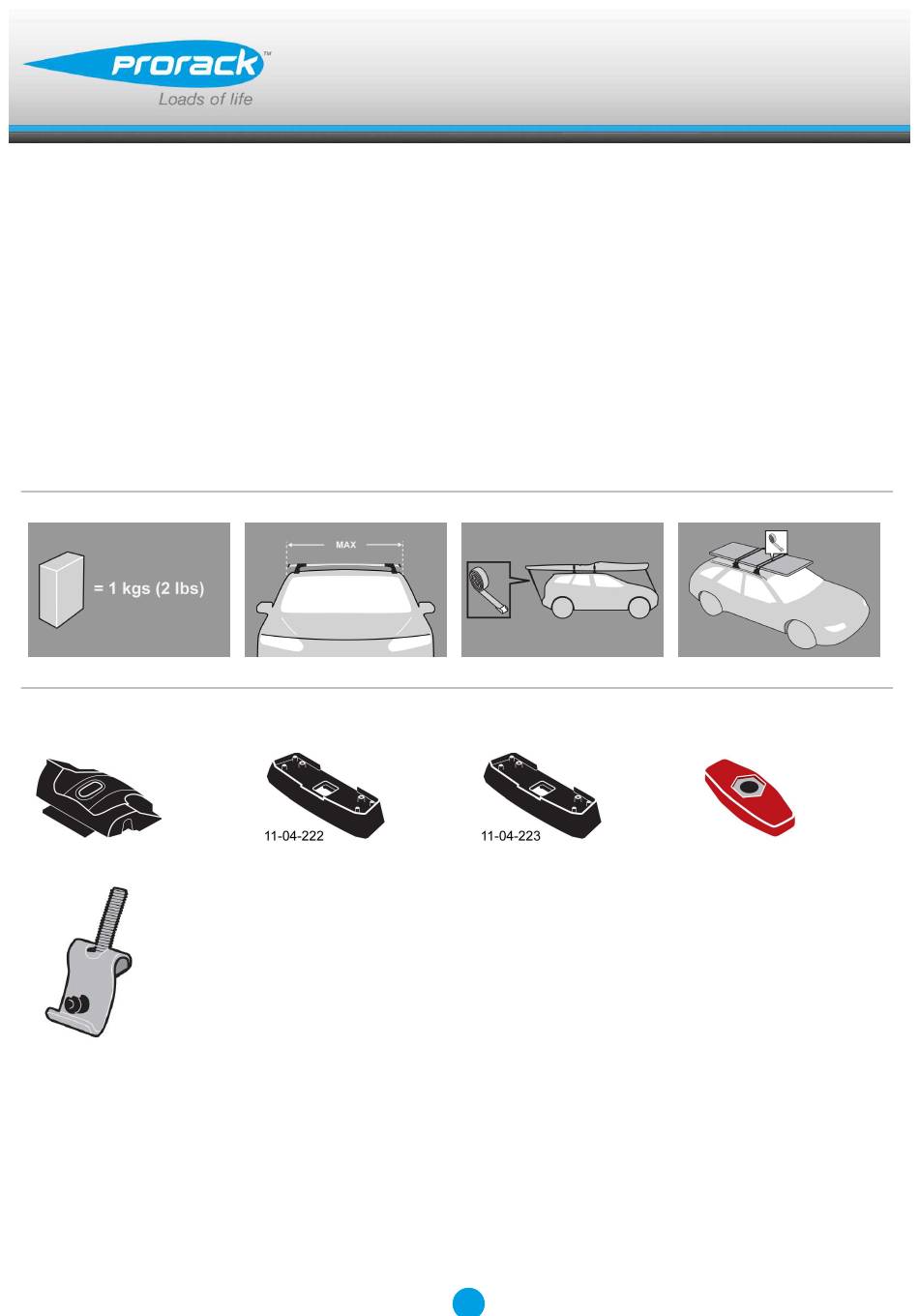

- Page 1 K386 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 6F...
- Page 2 Fitting Kit K386 MAX kgs (lbs) Suzuki SX4 , 4dr Sedan 06-+ 40 kgs (88 lbs) 40 kgs (88 lbs) SX4 , 4dr Sedan 06-13 40 kgs (88 lbs) 40 kgs (88 lbs) SX4 , 4dr Sedan 08-13 40 kgs (88 lbs)
-
Page 3: First Time Installation
Fitting Kit K386 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K386 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 5 Fitting Kit K386 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K386 Refer to the underside of the pad for the part number. Letters refer to the pad part numbers and position. Note: Pads may be different to that shown. Pad Part Number: A = 11-04-222 B = 11-04-223 Fit rubber pads (supplied with fitting kit) to foot.
- Page 7 Fitting Kit K386 Fitment Open or remove fixed-point covers. Store items away in a safe place. Hook clamps into the fixed points on the vehicle. Ensure internal clamp sits upright. Repeat for all four positions. Mount crossbars over clamps.
- Page 8 Fitting Kit K386 Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K386 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K386 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
- Page 12 Fitting Kit K386 SX4, 4dr Sedan 06-+ (CN) -120mm 570mm 769mm 752mm -4 -3/4ths" 22 7/16ths" 30 1/4ths" 29 5/8ths" SX4, 4dr Sedan 06-13 (EU) -120mm 570mm 769mm 752mm -4 -3/4ths" 22 7/16ths" 30 1/4ths" 29 5/8ths" SX4, 4dr Sedan 08-13 (US)
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Fitting Kit K386 Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
