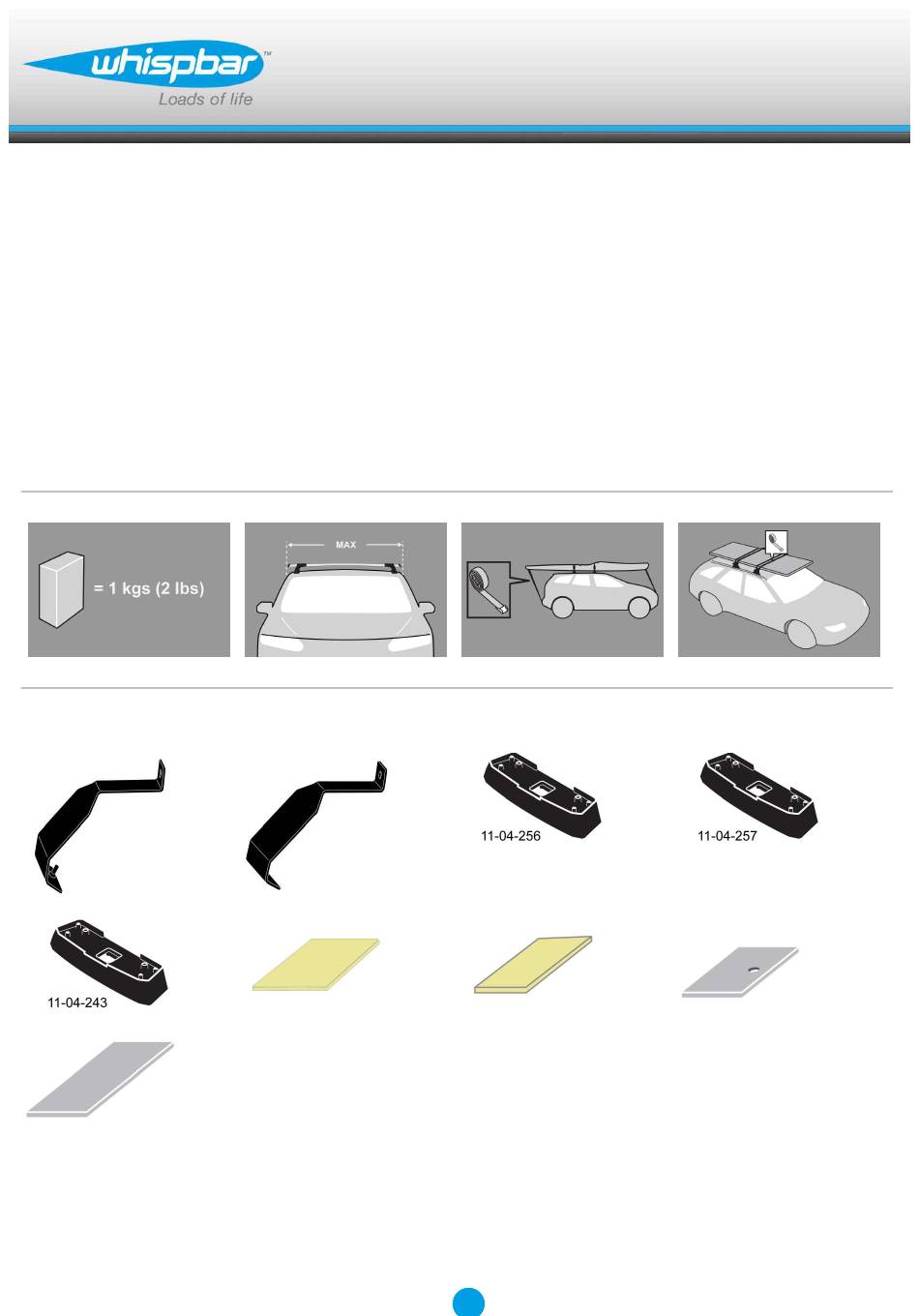

- Page 1 K720W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 1A...
- Page 2 Fitting Kit K720W MAX kgs (lbs) Skoda Citigo , 5dr Hatch 12-+ 50 kgs (110 lbs) 50 kgs (110 lbs) Citigo , 5dr Hatch 12-14 50 kgs (110 lbs) 50 kgs (110 lbs) Seat Mii , 5dr Hatch 12-+ 50 kgs (110 lbs) 50 kgs (110 lbs) Volkswagen UP! , 5dr Hatch 12-+...
-
Page 3: First Time Installation

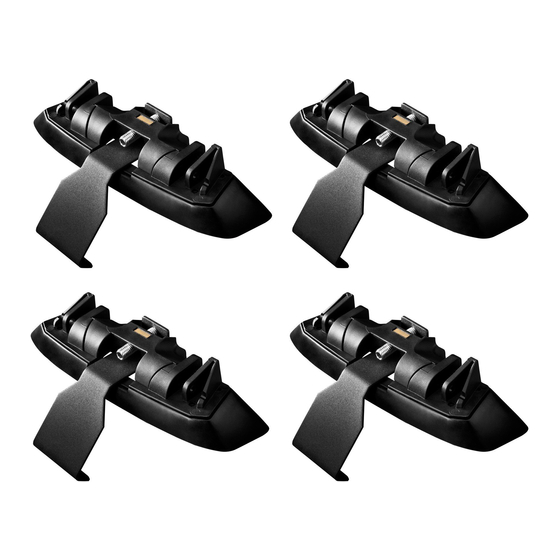

Fitting Kit K720W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. NOTE: Clamp images in these instructions may not be representative of the clamps in this kit... - Page 4 Fitting Kit K720W Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally.
- Page 5 Fitting Kit K720W Remove locking screw. Apply protective strip as shown. Trim if required. A = Clear B = Grey It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps.
- Page 6 Fitting Kit K720W Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 7 Fitting Kit K720W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 243 B = 256 C = 257 Place rubber pads (supplied with fitting kit) on the vehicle roof.
- Page 8 Fitting Kit K720W Fitment Clamps directly to edge of roof under the doors Please check the rear of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Adjust the legs on the crossbar so that they are positioned equally from the ends of the crossbar, and the clamps engage firmly on...
- Page 9 Fitting Kit K720W Locate vehicle fixed point for the rear bar as indicated on rear window. Install front clamp as shown. Install rear clamp as shown.
- Page 10 Fitting Kit K720W Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle.
- Page 11 Fitting Kit K720W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K720W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 13 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
- Page 14 Fitting Kit K720W Citigo, 5dr Hatch 12-+ (EU) -200mm 500mm 852mm 849mm -7 -7/8ths" 19 11/16ths" 33 9/16ths" 33 7/16ths" Citigo, 5dr Hatch 12-14 (NZ) -200mm 500mm 852mm 849mm -7 -7/8ths" 19 11/16ths" 33 9/16ths" 33 7/16ths" Mii, 5dr Hatch 12-+ (EU) -200mm 500mm 852mm...
-
