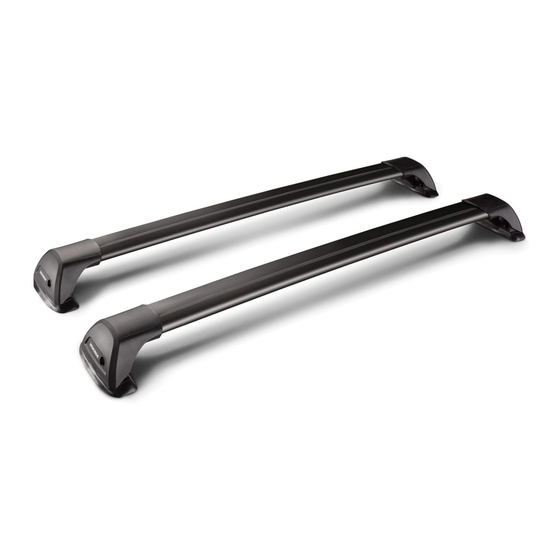

Summary of Contents for Yakima Prorack K368

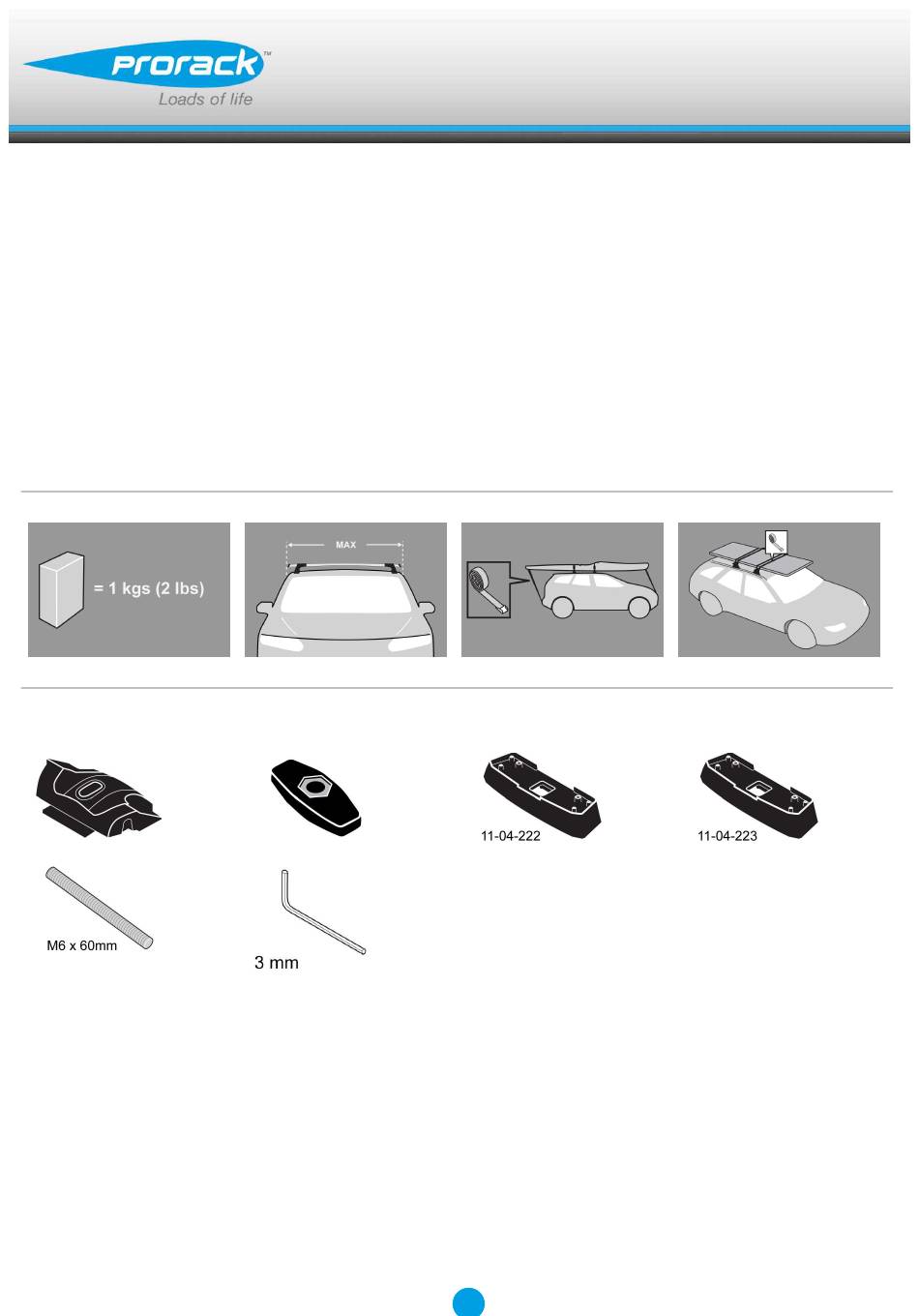

- Page 1 K368 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 7G...
- Page 2 Fitting Kit K368 MAX kgs (lbs) Subaru Forester 2.5i, 5dr SUV 14-+ 75 kgs (165 lbs) 75 kgs (165 lbs) Impreza , 4dr Sedan 07-12 75 kgs (165 lbs) 75 kgs (165 lbs) Impreza Mk3, 4dr Sedan 07-12 75 kgs (165 lbs) 75 kgs (165 lbs) Impreza Mk3, 4dr Sedan 07-12 75 kgs (165 lbs)
- Page 3 Fitting Kit K368 Legacy , 5dr Wagon 13-+ 75 kgs (165 lbs) 80 kgs (176 lbs) Legacy , 5dr Wagon Sep 09-13 75 kgs (165 lbs) 80 kgs (176 lbs) Liberty , 5dr Wagon 13-15 75 kgs (165 lbs) 80 kgs (176 lbs) Liberty , 5dr Wagon Sep 09-13 75 kgs (165 lbs) 80 kgs (176 lbs)
-
Page 4: First Time Installation
Fitting Kit K368 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. Use keys to remove covers. - Page 5 Fitting Kit K368 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Set bars to length (revert to rear of these instructions).
- Page 6 Fitting Kit K368 Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 7 Fitting Kit K368 Refer to the underside of the pad for the part number. Letters refer to the pad part numbers and position. Pad Part Number: A = 222A B = 223A Fit rubber pads (supplied with fitting kit) to foot.
- Page 8 Fitting Kit K368 Fitment Open or remove fixed-point covers. Select grubscrews and screw into the vehicle's fixed points. Use mounting nuts closer to the roof centre. Do not over tighten. Repeat for all four positions. Place crossbar foot over grubscrews.
- Page 9 Fitting Kit K368 Tighten the plastic knob. The side with the nut showing should be facing up. Ensure the plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 10 Fitting Kit K368 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 11: Maintenance
Fitting Kit K368 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 12 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
- Page 13 Fitting Kit K368 Forester, 5dr SUV 14-+ (US) -240mm 610mm 873mm 825mm -9 -7/16ths" 24" 34 3/8ths" 32 1/2ths" Impreza, 4dr Sedan 07-12 (ZA) -250mm 460mm 848mm 792mm -9 -13/16ths" 18 1/8ths" 33 3/8ths" 31 3/16ths" Impreza, 4dr Sedan 07-12 (EU) -250mm 460mm 848mm...
- Page 14 Fitting Kit K368 Impreza, 5dr Hatch 12-+ (ZA) -270mm 430mm 910mm 855mm -10 -5/8ths" 16 15/16ths" 35 13/16ths" 33 11/16ths" Impreza, 5dr Hatch 12-+ (US) -270mm 430mm 910mm 855mm -10 -5/8ths" 16 15/16ths" 35 13/16ths" 33 11/16ths" Impreza, 5dr Hatch 12-14 (ZA) -270mm 430mm 910mm...
- Page 15 Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
- Page 16 Fitting Kit K368 Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
