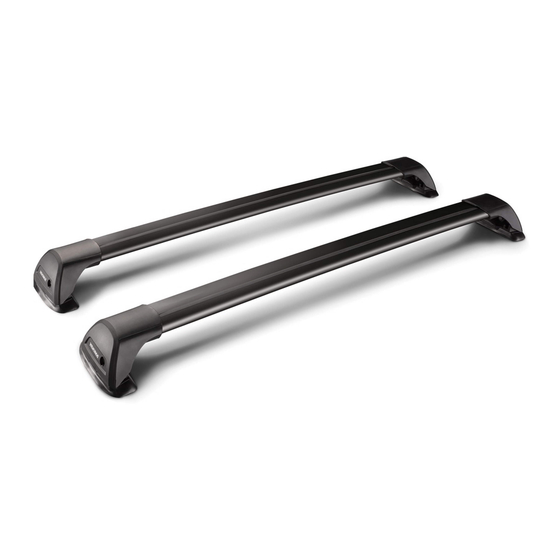

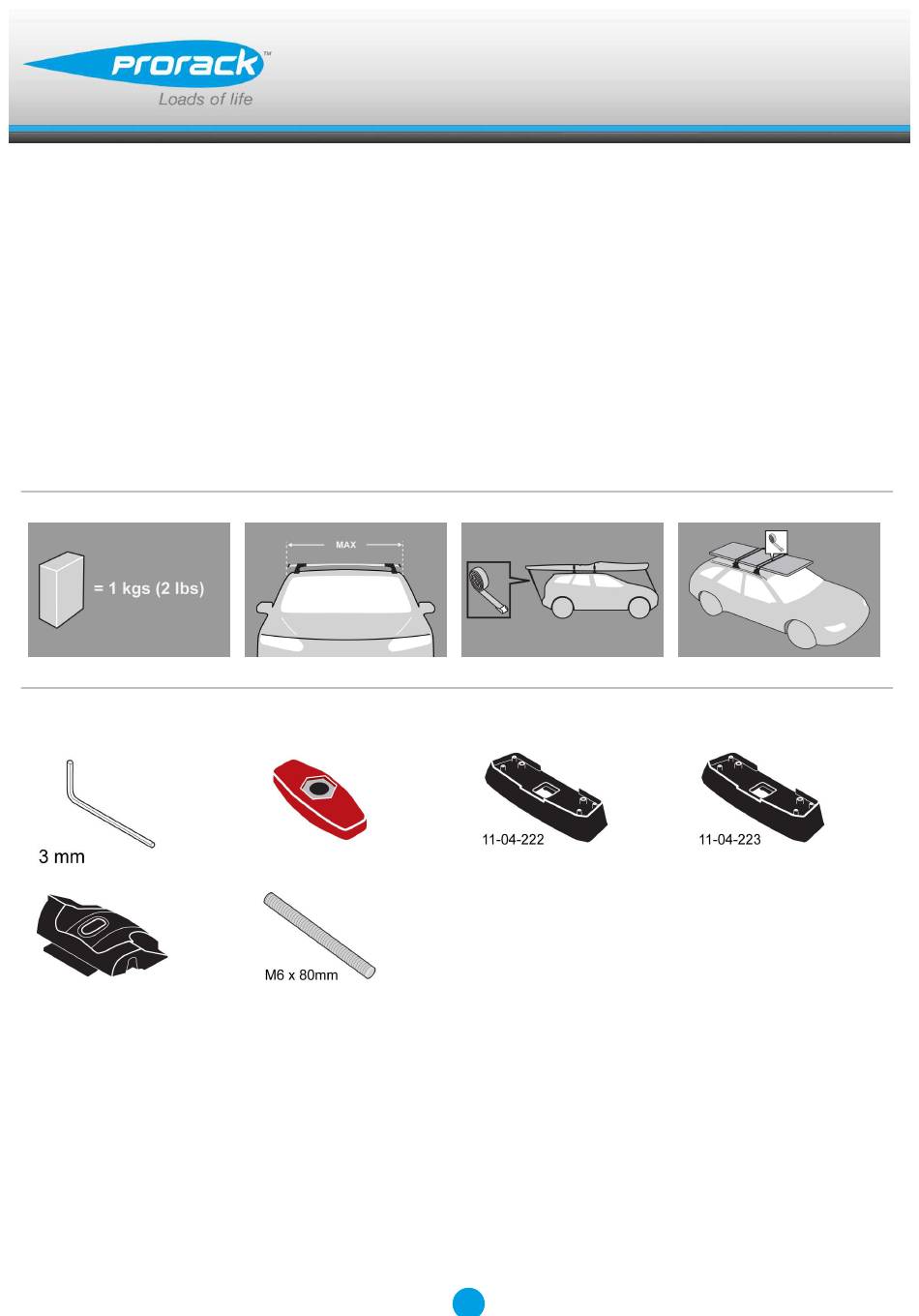

- Page 1 K370 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4C...
- Page 2 Fitting Kit K370 MAX kgs (lbs) Ford Mondeo , 4dr Sedan 01-07 75 kgs (165 lbs) 75 kgs (165 lbs) Mondeo , 4dr Sedan 01-07 75 kgs (165 lbs) 75 kgs (165 lbs) Mondeo , 4dr Sedan Sep 01-Sep 07 75 kgs (165 lbs) 75 kgs (165 lbs) Mondeo , 5dr Hatch 01-07...
-
Page 3: First Time Installation
Fitting Kit K370 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. Use keys to remove covers. - Page 4 Fitting Kit K370 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted equally. Set bars to length (refer to the crossbar instructions for crossbar adjustment).
- Page 5 Fitting Kit K370 Tighten adjusting screw to 5 Nm (3.7 ft lb). Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 6 Fitting Kit K370 Refer to the underside of the pad for the part number. Letters refer to the pad part numbers and position. Pad Part Number: A = 11-04-222 B = 11-04-223 Fit rubber pads (supplied with fitting kit) to foot.
- Page 7 Fitting Kit K370 Fitment Open or remove fixed-point covers. Select grubscrews and screw into the vehicle's fixed points. Do not over tighten. Repeat for all four positions. Place crossbar foot over grubscrews.
- Page 8 Fitting Kit K370 Tighten the red plastic knob. The side with the nut showing should be facing up. Ensure the red plastic knob is in the position shown when fully tightened. Repeat for all legs. Check crossbar is securely attached to the vehicle.
- Page 9 Fitting Kit K370 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 10: Maintenance
Fitting Kit K370 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. Set crossbars a minimum distance of 700mm (27 1/2") apart where no other distance is specified in the fitting... - Page 11 Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz...
- Page 12 Fitting Kit K370 Mondeo, 4dr Sedan 01-07 (ZA) -370mm 320mm 848mm 834mm -14 -9/16ths" 12 5/8ths" 33 3/8ths" 32 13/16ths" Mondeo, 4dr Sedan 01-07 (EU) -370mm 320mm 848mm 834mm -14 -9/16ths" 12 5/8ths" 33 3/8ths" 32 13/16ths" Mondeo, 4dr Sedan Sep 01-Sep 07 (NZ) -370mm 320mm 848mm...
-
