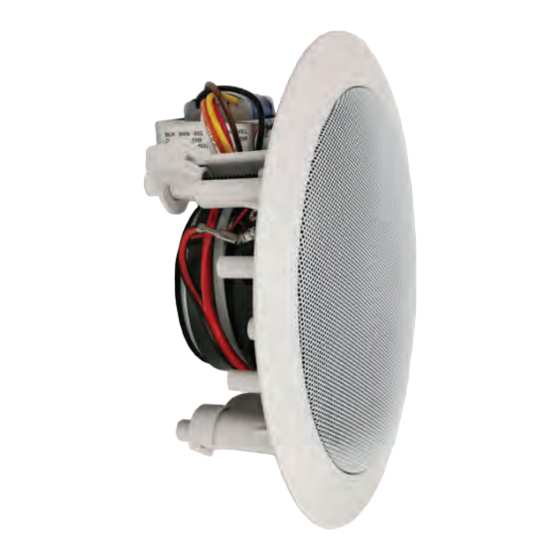

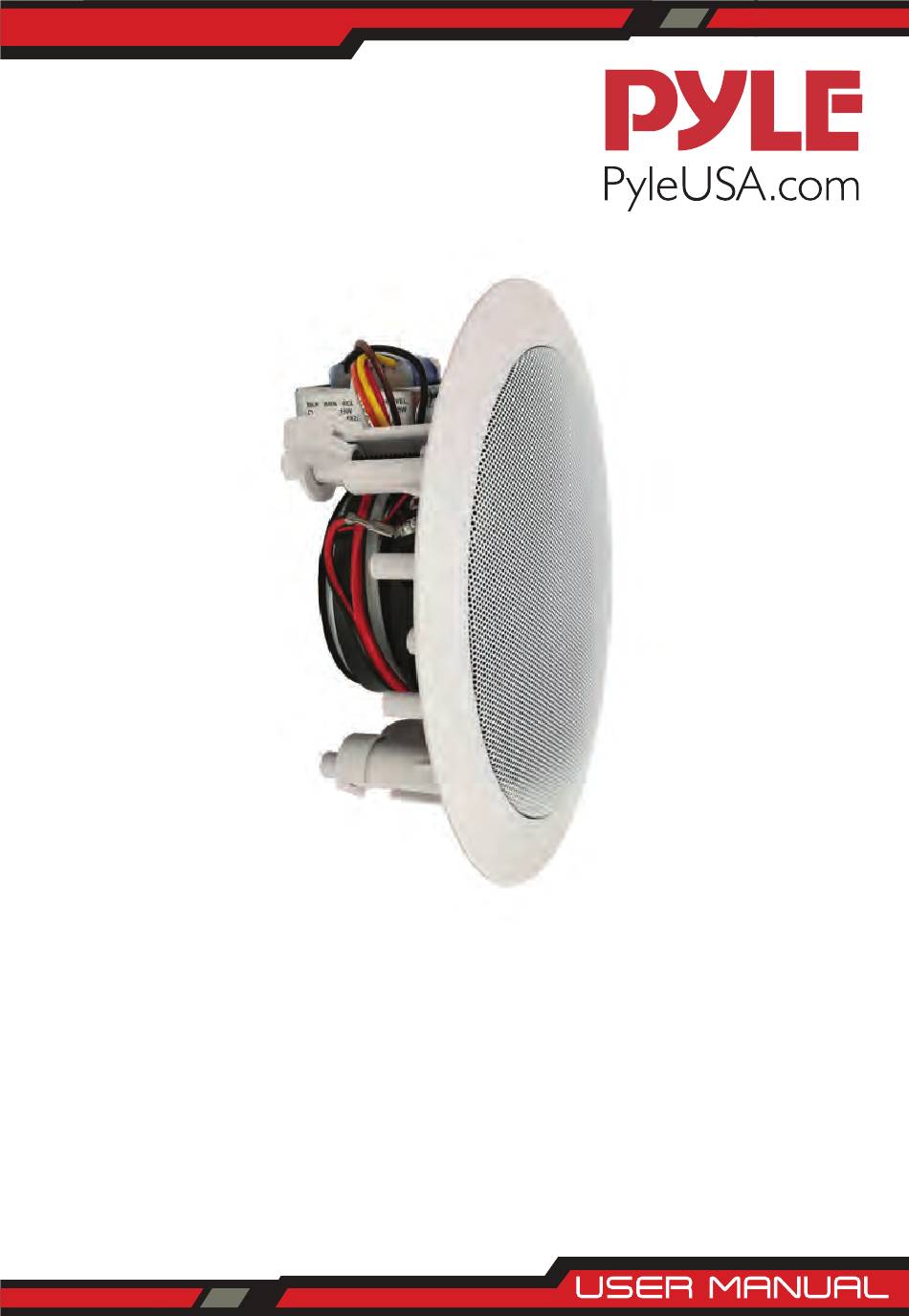

- Page 1 PDIC53T 5.25’’ In-Wall / In-Ceiling 70V Speaker Flush Mount Low-Profile Speaker with 70 Volt Transformer (300 Watt)
- Page 2 PDIC53T SPL 120.0 110.0 100.0 90.0 80.0 70.0 60.0 50.0 Frequency Response PDIC53T IMP 30.0 20.0 10.0 20HZ Frequency Response ” 6.42 (163mm) ” 7.95 (202mm) Side View www.PyleUSA.com www.PyleUSA.com...
- Page 3 • Speaker Installation Cutting guide www.PyleUSA.com...
- Page 4 1. Position the cutting guide against the required speaker placement and trace around. 2. Cut out the traced area using a pad saw or other suitable tool. 3. Take the speaker unit out of the packaging and remove the grille. Connect the speaker wire to the appropriate “ ”...
- Page 5 PDIC53T 5.25’’ In-Wall / In-Ceiling 70V Speaker Flush Mount Low-Pro le Speaker with 70 Volt Transformer (300 Watt) Features: In-Wall / In-Ceiling Speaker System • Built-in 70 Volt Transformer Tapping • Flush Mount, Slim Low-Pro le Design • 2-Way Full Range Stereo Sound •...
