Summary of Contents for Pyle PDIC68FG

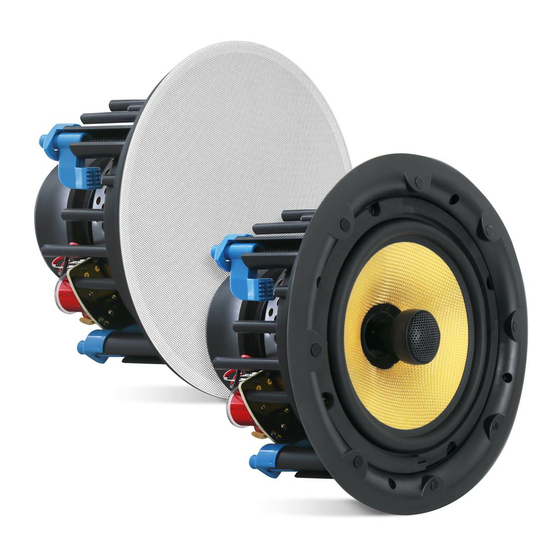

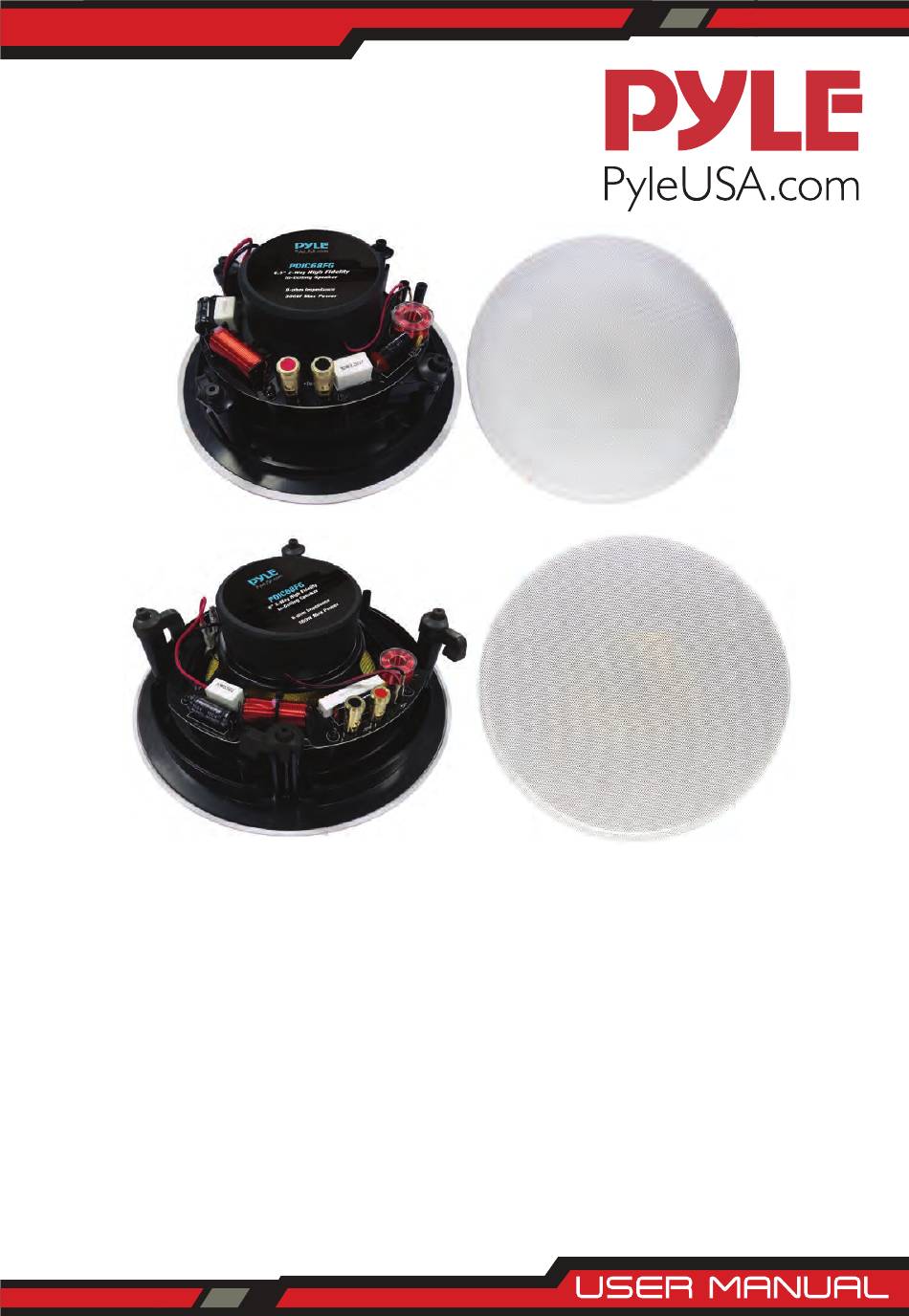

- Page 1 PDIC68FG - 6.5" inch PDIC88FG - 8" inch PDIC68FG - PDIC88FG 6.5’’ In-Wall/In-Ceiling Hi-Fi Speakers Dual In-Wall / In-Ceiling Hi-Fi Speakers High Performance Full Range Stereo Speaker System with Magnetic Grills...
- Page 2 PDIC68FG SPL 120.0 110.0 100.0 90.0 80.0 70.0 60.0 50.0 Frequency Response PDIC68FG IMP 40.0 30.0 20.0 10.0 20HZ Frequency Response ” 7.9 (201mm) ” 9.21 (234mm) Side View www.PyleUSA.com...
- Page 3 PDIC88FG SPL 120.0 110.0 100.0 90.0 80.0 70.0 60.0 50.0 Frequency Response PDIC88FG IMP 30.0 20.0 10.0 Frequency Response ” 9.53 (242mm) ” 11.06 (281mm) Side View www.PyleUSA.com...
- Page 4 • Speaker Installation Cutting guide www.PyleUSA.com...
- Page 5 1. Position the cutting guide against the required speaker placement and trace around. 2. Cut out the traced area using a pad saw or other suitable tool. 3. Take the speaker unit out of the packaging and remove the grille. Connect the speaker wire to the appropriate “ ”...
- Page 6 PDIC68FG - PDIC88FG 6.5’’ In-Wall/In-Ceiling Hi-Fi Speakers Dua In-Wall / In-Ceiling Hi-Fi Speakers - High Performance Full Range Stereo Speaker System with Magnetic Grills MODEL PDIC68 PDIC88 Speaker Size 6.5’’ inch 8’’ inch Power Output 300 Watt MAX 360 Watt MAX...
- Page 7 Integrated Clamp-Type Mounting Brackets • Quick Connect Spring-Loaded Speaker Terminals • Environmentally Friendly ABS Construction • Perfect for Custom Audio Applications • Used for Home, O ce & Business • What’s in the Box: (2) Hi-Fi Speakers • (2) Magnetic Speaker Grills •...
