Summary of Contents for Pyle PDIC6LT

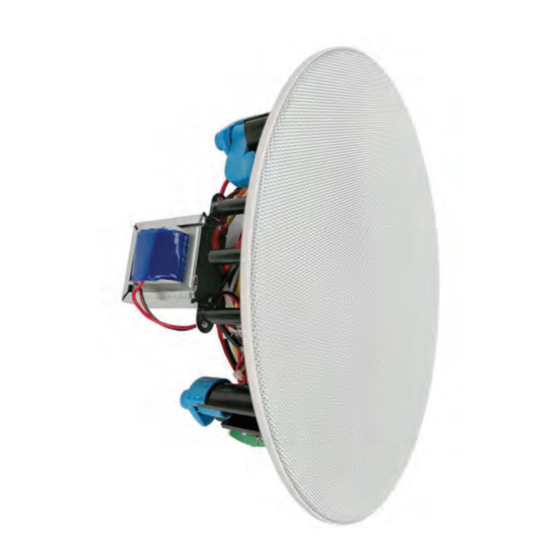

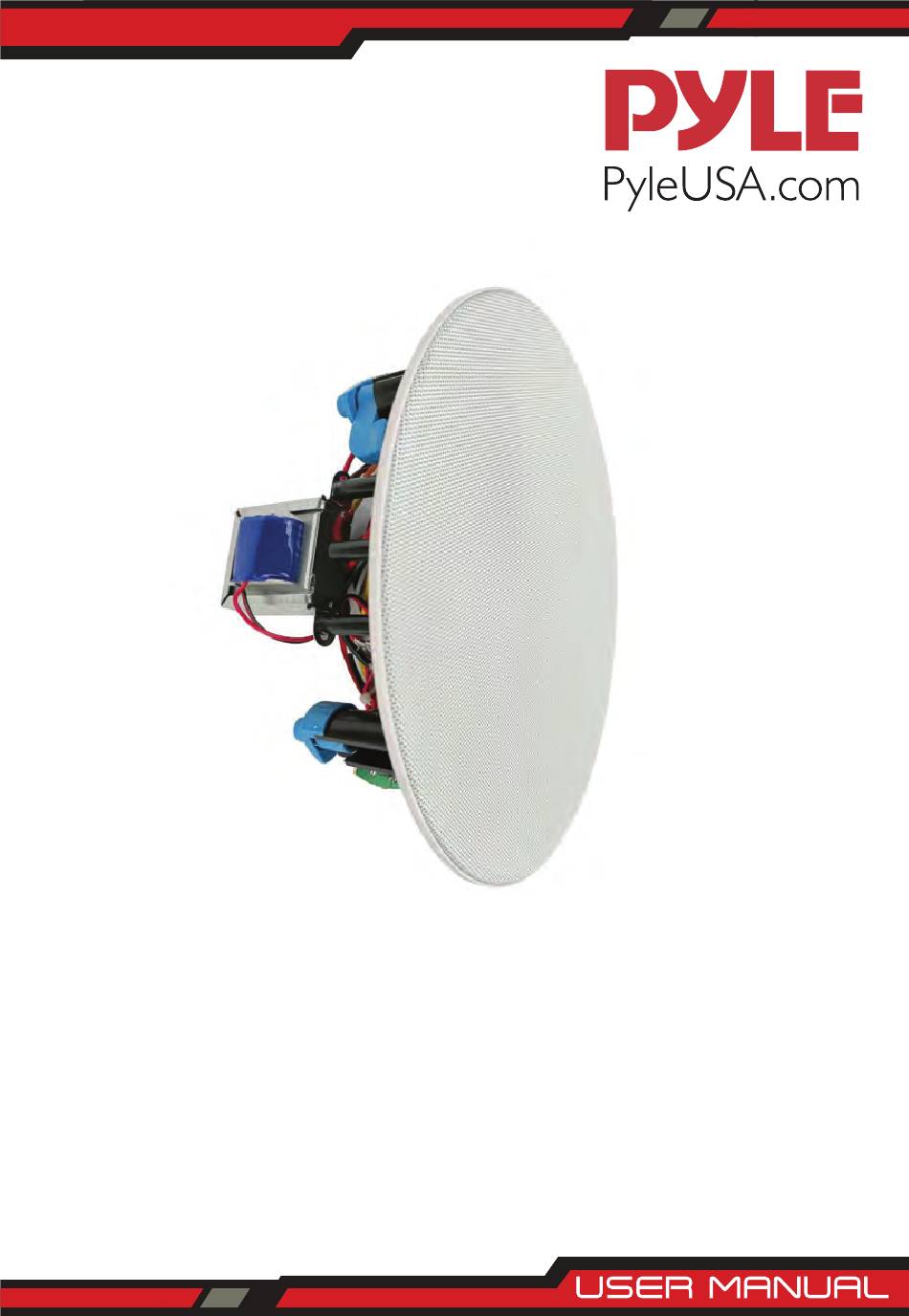

- Page 1 PDIC6LT 6.5’’ In-Wall / In-Ceiling 70V Speaker Flush Mount Low-Profile Speaker with 70 Volt Transformer, Magnetic Grill (500 Watt)
- Page 2 PDIC6LT SPL 120.0 110.0 100.0 90.0 80.0 70.0 60.0 50.0 Frequency Response PDIC6LT IMP 30.0 20.0 10.0 20HZ Frequency Response ” 8.03 (204mm) Side View ” 9.21 (234mm) www.PyleUSA.com...
- Page 3 • Speaker Installation Cutting guide www.PyleUSA.com...
- Page 4 1. Position the cutting guide against the required speaker placement and trace around. 2. Cut out the traced area using a pad saw or other suitable tool. 3. Take the speaker unit out of the packaging and remove the grille. Connect the speaker wire to the appropriate “ ”...
- Page 5 PDIC6LT 6.5’’ In-Wall / In-Ceiling 70V Speaker Flush Mount Low-Pro le Speaker with 70 Volt Transformer, Magnetic Grill (500 Watt) Features: • In-Wall / In-Ceiling Speaker System • Built-in 70 Volt Transformer Tapping • High-Impedance, Line-Matching Transformer • 2-Way Full Range Stereo Sound •...
