• Added the SR61TDPM • Modified the USB driver download procedure (procedure is now available in Knowledge Central) • Added Intermec Ready-to-Work indicator information. • Modified Understanding the Lights. • Added more info on Vibrate Alert. • Added all optional accessories available.
Safety Information Your safety is extremely important. Read and follow all warnings and cautions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.
Web Support Visit the Intermec web site at www.intermec.com to download our current manuals (in PDF). To order printed versions of the Intermec manuals, contact your local Intermec representative or distributor. Visit the Intermec technical knowledge base (Knowledge Central) at www.intermec.com and click Support >...
(as PDF files) that you can download for free. To download documents 1 Visit the Intermec web site at www.intermec.com. 2 Click the Products tab. 3 Using the Products menu, navigate to your product page. For example, to find the CN3 computer product page, click Computers >...
Before You Begin 4 Click the Manuals tab. If your product does not have its own product page, click Support > Manuals. Use the Product Category field, the Product Family field, and the Product field to help you locate the documentation for your product.
Page 12
Before You Begin SR61T Tethered Scanner User’s Guide...
Introducing the SR61T This chapter provides an overview of the SR61T Tethered Scanner. This chapter covers these topics: • What is the SR61T Tethered Scanner • Supported Interfaces • Powering the SR61T • Connecting the Interface Cable • Removing the Interface Cable •...

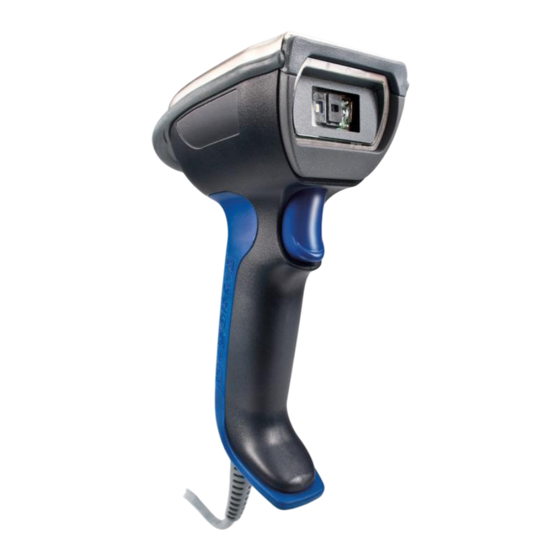

Chapter 1 — Introducing the SR61T What is the SR61T Tethered Scanner The SR61T Tethered Scanner is a small, rugged handheld scanner. The SR61T is lightweight, ergonomically designed, and it interfaces seamlessly with Intermec computers and other host computers. Scanner window Status light Intermec Ready-to-...
Chapter 1 — Introducing the SR61T Intermec Technologies Corp. Patent 5V 1,7A MODEL, : SR61T MFD, : XXXXXXXXX 20XX CN: SR61T2D-XXX IC:ICES-003 CLASS B SN: XXXXXXXXXXX XXXXXXXX SR61T2D-XXX SR61T Scan Engine Option: The scan engine option of your SR61T can be found in the first part of the configuration number.
Chapter 1 — Introducing the SR61T Connecting the Interface Cable The cable you use depends on the interface and host device. However all cables are connected to the scanner in the same way. 1 Insert cable. Press firmly until inserted all the way. 2 Tighten the screw on the cable to secure it.
236-190-xxx SR61T Power Supply Cable Part Number Universal Intermec power supply 5V 851-089-xxx Note: A power cord is also needed to plug in the power supply. The power cord needed depends on your country and is sold separately. SR61T Tethered Scanner User’s Guide...
Chapter 1 — Introducing the SR61T Optional Accessories The following accessories are optional. Desktop Stand SR61T Desktop Stand (P/N 203-878-xxx): The desktop stand provides you with a convenient way to store the SR61T when you are not using it. Hands-Free Stand SR61T Hands-Free Stand (P/N 203-877-xxx): The hands-free stand provides you with a convenient way to store the SR61T when you are not using it or scan items without having to hold your scanner.
Chapter 1 — Introducing the SR61T Wall or Vehicle Mount Holder SR61T Wall or Vehicle Mount Holder (P/N 203-876-xxx): The wall or vehicle mount holder provides you with a convenient way to store the SR61T when you are not using it. You can either attach the holder to a wall with screws or attach the holder to a vehicle with tie-wraps.
Chapter 1 — Introducing the SR61T Dangle Suspension SR61 Dangle Suspension (P/N 825-181-xxx): The dangle suspension provides you with a convenient way to secure the scanner to your vehicle or work station. Belt Holster SR61 Belt Holster (P/N 825-179-xxx): The belt holster (P/N 825-179-xxx) provides you with a convenient way to carry the scanner when you are not using SR61T Tethered Scanner User’s Guide...
Chapter 1 — Introducing the SR61T Wrist Strap SR61 Wrist Strap: P/N 825-184-xxx: The wrist strap provides you with a convenient way to keep the scanner securely hanging from your wrist when you’re not using it. SR61T Tethered Scanner User’s Guide...
Scanning With the SR61T This chapter explains how to scan bar codes and includes the following sections: • Understanding the Lights • Understanding the Beeps • Scanning Bar Codes...
Chapter 2 — Scanning With the SR61T Understanding the Lights The SR61T uses the Intermec Ready-to-Work™ light and Status light to communicate information about your scanner. The lights described in this section are new and do not correspond to the legacy SR61T models (SR61TV, SR61TA, SR61TL or SR61TE).
Chapter 2 — Scanning With the SR61T Status Light The status light on the SR61T flashes red or green depending on the status of the scanner. Default Status Light Description Light State What it Means Series of green Power-up flashes (USB At power-up the status light flashes to indicate the interface only) activated USB interface:...
(such as PDF417). For more information see EasySet. Note: You can modify many of the default settings for the light, beeps and crackle using EasySet version 5.6.4.0 or higher. EasySet is available on the Intermec web site at www.intermec.com/EasySet. SR61T Tethered Scanner User’s Guide...
Chapter 2 — Scanning With the SR61T Using Vibrate Alert The vibrate alert functions makes the scanner vibrate in addition to the lights and beeps. This feature can be useful in these situations: • You are in a noisy environment, such as a busy warehouse, where it can be difficult to hear the beep.
If you are using bar code labels that are encoded in a different symbology, you need to enable the symbology on your SR61T. Use EasySet version 5.6.4.0 or later to enable and disable symbologies for your scanner. EasySet is available on the Intermec web site at www.intermec.com/EasySet. SR61T Tethered Scanner User’s Guide...
Page 29
Chapter 2 — Scanning With the SR61T To scan a bar code label with a laser scanner or 1D linear imager 1 Point the SR61T at the bar code label and hold the SR61T at a slight angle 15 to 25 cm (6 to 10 in) from the label. 2 Pull the trigger, and direct the red beam so that it falls across all bars in the bar code label.
Page 30
Chapter 2 — Scanning With the SR61T To scan omni-directionally with the 2D, 2D high performance or near- far range area imager 1 Point the scanner window at the bar code label and hold the SR61T steady a few inches from the label. 2 Pull the trigger.
Chapter 2 — Scanning With the SR61T • If you are scanning with a near-far range area imager at a near distance (< 30 cm / 11.8 in), position the red aiming beam just to the right of the center of the bar code label. bar code center axis SR61TXR Aiming Beam...
Page 32
Chapter 2 — Scanning With the SR61T SR61T Tethered Scanner User’s Guide...
SR61T Interfaces This chapter explains the different interfaces available with the SR61T: • USB Interface • RS-232 Interface • Keyboard Wedge Y-Cable Interface • Wand Emulation Interface...
Chapter 3 — SR61T Interfaces USB Interface The SR61T can be connected to a USB host using one of the USB cables. The SR61T is USB 2.0 and operates at full speed. Power is provided either by the host or by the external power supply connected to the USB cable.
Chapter 3 — SR61T Interfaces 4 Turn on your host device. Note: If you are using a non-powered USB cable, you may get a message that the host does not provide enough power. For example when you connect the USB cable to a keyboard hub or if there are other USB devices connected.
Page 36
Chapter 3 — SR61T Interfaces German Windows Spanish Windows Italian Windows Swedish Windows UK English Windows Japanese Windows Brazilian Portuguese Windows Czech Republic Windows Slovakian Windows Hungarian 101-Key SR61T Tethered Scanner User’s Guide...
For a first time setup when using the virtual COM USB cable mode you will be prompted to download the driver. The USB driver is available for download in Knowledge Central on the Intermec web site. To download the USB virtual COM driver: 1 Go to http://intermec.custhelp.com.
Chapter 3 — SR61T Interfaces RS-232 Interface The SR61T can be connected to a host using one of the RS-232 cables. Power is provided either by the host or by the external power supply connected to the RS-232 cable. See the “Required Accessories”...
Chapter 3 — SR61T Interfaces 4 Turn on the host device. 5 If necessary, use the configuration bar codes in the next section to configure your SR61T serial parameters to match the PC. The default serial parameters for the SR61T are: Serial Parameter Default Setting Baud rate...
Chapter 3 — SR61T Interfaces Keyboard Wedge Y-Cable Interface The SR61T can be connected to a host using a keyboard wedge or Y- cable. Power is provided either by the host or by the external power supply connected to the cable. See the “Required Accessories”...
The type of cable depends on the host device or intermec computer your are using. No power supply is necessary. Note: You can connect the following Intermec computers using a wand emulation cable: 2420, 2425, 2435, 2455, 2475, 2480, 2481, 2485, 2486.
Configuring the SR61T This chapter provides some basic configuration bar codes and information on how to configure the SR61T using the EasySet configuration application. This chapter includes: • Basic Setup with Configuration Bar Codes • Configuring Your Scanner with EasySet...
Chapter 4 — Configuring the SR61T Basic Setup with Configuration Bar Codes This chapter provides you with configuration bar codes for a basic setup. For more configuration options, use EasySet (see “Configuring Your Scanner with EasySet” on page 33). Resetting Your Scanner To reset your scanner, read the reset factory defaults configuration bar code.
Chapter 4 — Configuring the SR61T None Carriage Return Enter Configuring Your Scanner with EasySet EasySet is an Intermec configuration application that provides you with two ways to configure your scanner. Online setup—send configuration commands from EasySet • directly to the product.
Page 46
Device Manager (Open the Windows Control Panel and click on System. Click on the Hardware tab and then click on the Device Manager button.). The Intermec Virtual COM port is listed under Ports (COM & LPT). For USB Keyboard HID interface: The Online setup dialog box appears.
Chapter 4 — Configuring the SR61T Offline Setup with EasySet To configure your scanner offline by scanning bar codes 1 Start EasySet. The first time you start EasySet, the Select product dialog box appears. If the Select product dialog box does not appear, choose Product > Select or click on the product icon in the upper left corner.
Troubleshooting and Maintaining the SR61T Use this chapter to solve problems you may have while using the SR61T. This chapter contains these topics: • Troubleshooting the SR61T • Maintaining the SR61T...
Outside the U.S.A. and Canada, contact your local Intermec representative. For help, go to www.intermec.com > About Us > Contact Us. Before you call Intermec Product Support, make sure you have the following information: • SR61T firmware version • SR61T decode version •...
Chapter 5 — Troubleshooting and Maintaining the SR61T Get sub-system version Problems and Possible Solutions Use this section to find possible solutions to problems you may have. Problems and Possible Solutions Problem Possible Solution You pull the trigger, but The SR61T receives power from either a host or an nothing happens.
Page 52
Chapter 5 — Troubleshooting and Maintaining the SR61T Problems and Possible Solutions (continued) Problem Possible Solution You scan a bar code and The beep duration, volume, frequency, and the status light turns number may be configured so the SR61T does not on, but the SR61T does beep.
COM port. To upgrade the SR61T firmware 1 Download the latest SR61T firmware update package from the Intermec web site at www.intermec.com. a Go to Support > Downloads. b From the Product Category drop-down list, choose Bar Code Scanners.
Page 54
Chapter 5 — Troubleshooting and Maintaining the SR61T e Click the link to download the firmware upgrade package and save it to your PC. Unzip the .zip file. 2 Connect your SR61T to a host PC with the appropriate cable Note: If using a USB cable, you must use the USB Virtual Com USB cable mode.
Page 55
Chapter 5 — Troubleshooting and Maintaining the SR61T 7 Select the cable and click Next. 8 Use Browse to browse to the location of the firmware upgrade file (.bin), select the file, and click Open. Click Next. SR61T Tethered Scanner User’s Guide...
Page 56
Note: You can find the COM port by opening the Windows Device Manager (Open the Windows Control Panel and click on System. Click on the Hardware tab and then click on the Device Manager button.). The Intermec Virtual COM port is listed under Ports (COM & LPT). 11 Click Start download.
If something happens to your scanner and it does not turn on despite using the correct cables and power supply, the only way to recover the scanner is to reinstall the firmware. This is only possible when using the download cable (contact your Intermec representative). SR61T Tethered Scanner User’s Guide...
Chapter 5 — Troubleshooting and Maintaining the SR61T Cleaning the SR61T Clean the scanner window as often as needed for the environment in which you are using the SR61T. To clean the scanner window, you can use soapy water or isopropyl alcohol. Opening the SR61T voids the warranty and may cause damage to the internal components.
Appendix A — Specifications and Reading Distances Specifications Use this section to find technical information about the SR61T Physical Dimensions Length 19.4 cm (7.6 in) Height 13.1 cm (5.2 in) Width 7.2 cm (2.8) Weight 320 g (11.2 oz) Electrical Specifications x 5V, 1.7A Electrical rating Typical Power Consumption...
Page 61
Appendix A — Specifications and Reading Distances Temperature and Environmental Specifications Operating -20°C to 50°C (-4°F to 122°F) @ 3.3V Storage -40°C to 70°C (-40°F to 158°F) Relative humidity 5 to 95% non-condensing Shock 2000G, half sinus, 0.7 ms, 6 directions Vibrations 8G, from 10Hz to 500Hz, 2hr/axis, 3 axes Environmental rating...
Page 62
Appendix A — Specifications and Reading Distances Bar Code Symbologies for 2D Models (SR61T2D, SR61THP, SR61TDPM and SR61TXR) Australian Post Infomail Aztec Intelligent mail Interleaved 2 of 5 Canada Post Japan Post Codabar Matrix 2 of 5 Codablock A Maxicode Codablock F Micro PDF417 Code 11...
Appendix A — Specifications and Reading Distances Bar Code Symbologies for 1D Models (SR61T1D and SR61TL) GS1 DataBar Expanded* Telepen GS1 DataBar Limited* TLC 39 * = These symbologies are only available with SR61TL (laser scanner). Reading Distances The reading distances for each scanner are typical distances measured in an office environment with extended reading activated by default (200 lux).
