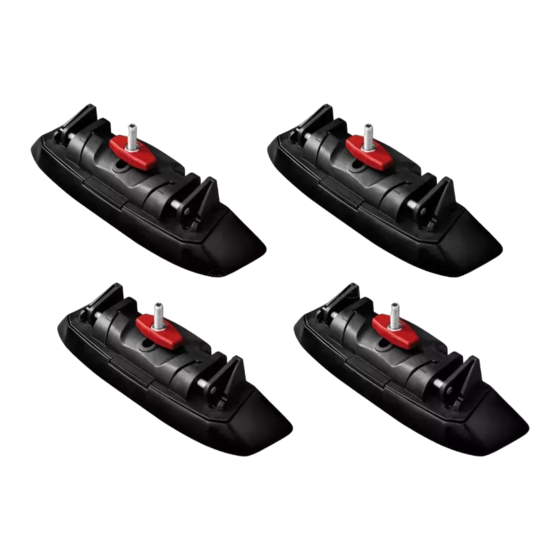

- Page 1 K953W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 3C...
- Page 2 Fitting Kit K953W MAX kgs (lbs) Mercedes Citan LWB, 5dr Van 12-+ 75 kgs (165 lbs) 100 kgs (220 lbs) Citan XLWB, 5dr Van 12-+ 75 kgs (165 lbs) 100 kgs (220 lbs)
- Page 3 Fitting Kit K953W Citan LWB, 5dr Van 12-+ (EU) 1440mm 905mm 905mm 0 3/16ths" 56 11/16ths" 35 5/8ths" 35 5/8ths" Citan XLWB, 5dr Van 12-+ (EU) 830mm 1800mm 905mm 905mm 905mm 0 3/16ths" 32 11/16ths" 70 7/8ths" 35 5/8ths" 35 5/8ths"...
-
Page 4: First Time Installation

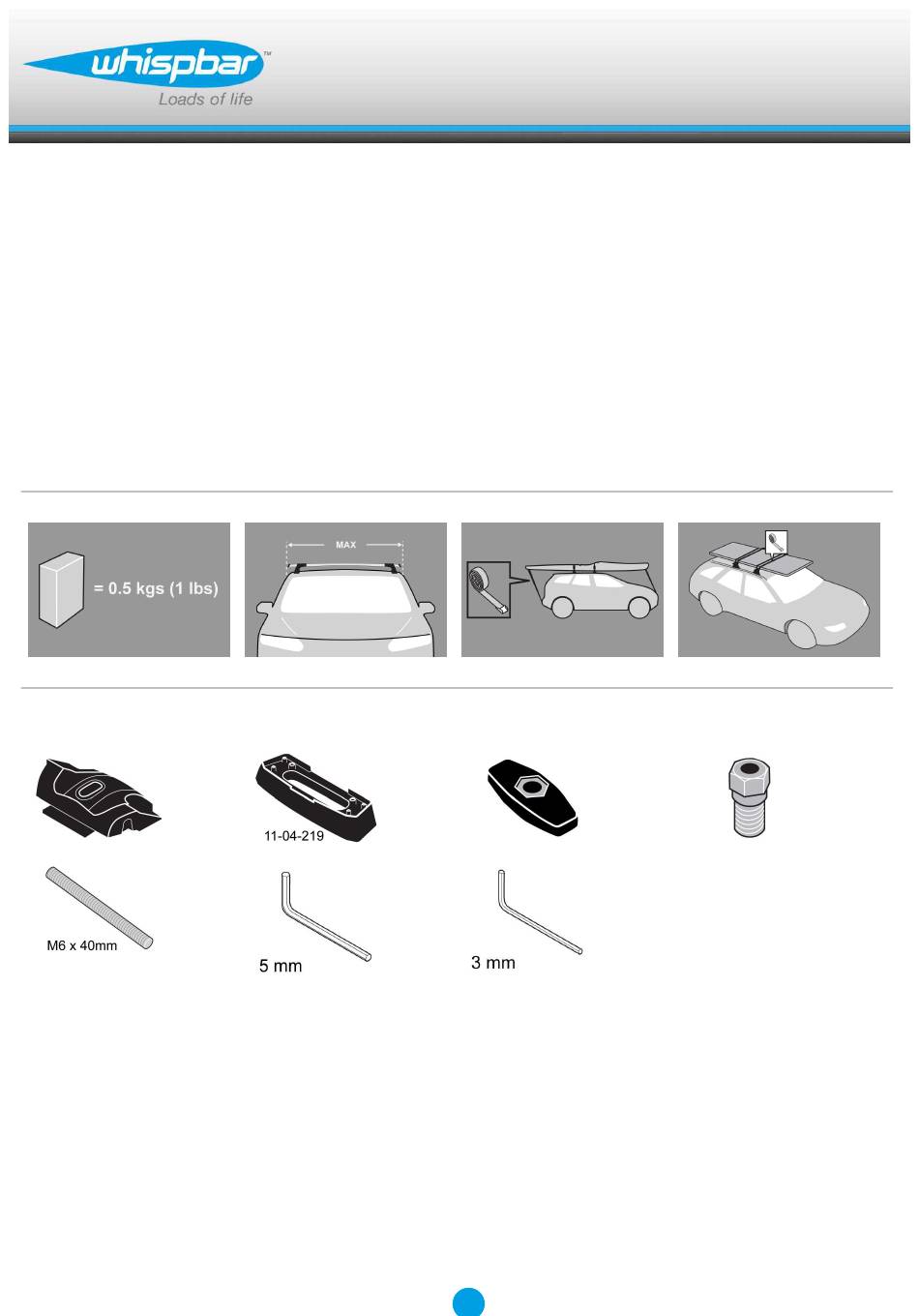

Fitting Kit K953W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K953W Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 6 Fitting Kit K953W Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit)
- Page 7 Fitting Kit K953W Fitment Use 5 mm Allen Key to remove fixed-point covers. Install adaptor onto vehicle. Fit rubber seal from fixed-point over adaptor (if available). Screw grubscrew into adaptor using hex key. Tighten firmly. Repeat for all four positions.
- Page 8 Fitting Kit K953W Place rubber pads (supplied with fitting kit) on the vehicle roof. Pad may vary in shape to that shown. Place crossbar foot over grubscrews. Tighten the plastic knob. The side with the nut showing should be facing up.
- Page 9 Fitting Kit K953W Ensure the plastic knob is in the position shown when fully tightened. Repeat for all four positions. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 10: Maintenance
Fitting Kit K953W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 11 Fitting Kit K953W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 12: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 13 Yakima or the Whispbar dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
