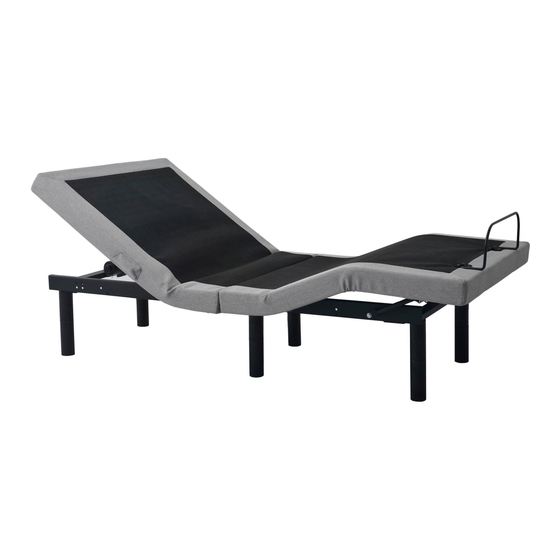

Malouf STRUCTURES M555 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the STRUCTURES M555 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Malouf STRUCTURES M555

Summary of Contents for Malouf STRUCTURES M555

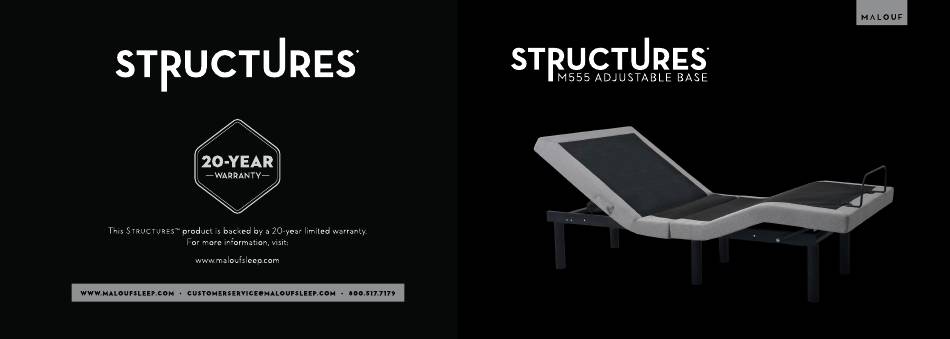

  • Page 1 OWNER’S MANUAL...
  • Page 2 OWNER’S MANUAL PACEMAKERS • Some pacemakers may detect motion by this product as a false sense of movement or exercise. This may or may not affect WARNINGS IMPORTANT: PLEASE READ ALL SAFETY INSTRUCTIONS THOROUGHLY your pacemaker. Talk to a physician to address any concerns. BEFORE USING THIS PRODUCT.
  • Page 3 RF exposure requirement and void user’s right to operate the device. POWER RATINGS • INPUT: AC 100-240V - 50/60Hz, 1.5 Amp • OUTPUT: DC 29V-2A • This•product•is•designed•to•have•no•maintenance•requirements•by•the•user.•Please•do•not•open• any•motor•compartments,•alter•the•wiring,•modify•the•base,•or•change•the•product•in•any•way•as• it•will•void•the•warranty.••• For•any•questions•or•concerns•regarding•this•product•please•contact•malouf •directly. ®...
  • Page 4 OWNER’S MANUAL CONTENTS Overview 1•-•2 Assembly 3•-•10 Remote Control 11•-•16 Massage 17•-•18 Electrical Components and Backup Battery 19•-•24 Synchronizing Two Bases 25•-•28 Test All Functions / Additional Help 29•-•32 Warranty Information 33•-•34...
  • Page 5 Head Motor Foot Motor OWNER’S MANUAL Back Massage Underbed OVERVIEW LED Light Control Box USB Ports Foot Massage Underbed LED Light Get to Know Your Product Retainer•Bar Power Supply Box Before•beginning•assembly•of•the•Structures ™•M555•Adjustable•Base,•please• take•a•moment•to•familiarize•yourself•with•the•parts•and•location•of•components.• See•the•adjacent•image•for•a•detailed•overview. Wireless Remote Control (12) 3-Inch Legs If•any•parts•or•components•are•missing,•or•are•different•than•shown•in•the•...
  • Page 6 OWNER’S MANUAL ASSEMBLY Before You Begin A•minimum•of•two•people•are•required•to•assemble•this•adjustable•base. Open•box•on•the•floor•in•the•flat•position,•bottom•facing•up,•to•avoid•damage. Step 1: Place•the•box•in•the•room•the•bed•will•be•used•with•the•bottom•of•the•box•facing•up.• Carefully•remove•the•binding•straps•and•packaging•material,•taking•care•not•to•puncture•the• box•with•any•sharp•objects.• Step 2: Remove•the•bed•base•from•the•box•and•set•mattress•(top)•side•down•on•the•floor•(see image A).•Remove•all•plastic•and•zip•ties.•All•components•and•parts•are•located•in•the•underside•of• the•base.•Remove•attached•parts•and•set•aside•in•preparation•for•assembly•(see image B).• Check•to•make•sure•all•parts•have•been•included•and•are•not•damaged•(see page 2 for a list of all parts and components). King Size Only...
  • Page 7 OWNER’S MANUAL Middle•Leg•on•King•Size•Only Head ASSEMBLY Step 3: Hand•tighten•all•six•legs•(seven•for•King•size)•into•the•bed•frame•until•secure.•Note• that•there•are•two•location•options•for•each•leg,•an•outside•placement•or•an•inside• placement.•Tighten•the•legs•in•the•location•of•your•choosing,•maintaining•a•consistent• inside•or•outside•location•throughout.•Take•care•not•to•over•tighten•(see image A).• To•reach•a•15-inch•height•from•floor•to•top•of•deck•one•should•use•a•3-inch•+•3-inch•+• 6-inch•leg•assembly. Note: Ensure the bottom of each leg has an end cap attached (see image B). Step 4: Install•the•power•cord•by•connecting•the•cord•jack•to•the•receptacle•on•the•bed• motor•(see image C).•Be•sure•the•cord•is•connected•completely•and•securely. Foot...
  • Page 8 OWNER’S MANUAL ASSEMBLY Step 5: With•two•to•four•people,•lift•the•bed•by•the•metal•frame•and•turn•it•over•so•the• mattress•(top)•side•is•facing•up•(see image A).•Take•caution•not•to•lift•the•bed•with•the• fabric,•or•to•use•the•legs•as•pivot•points•causing•angled•pressure•as•this•may•cause• damage.•Move•the•bed•to•the•desired•location.
  • Page 9 OWNER’S MANUAL ASSEMBLY Step 6: To•install•the•mattress•retainer•bar,•insert•one•end•of•the•retainer•bar•in•its•respective• slot•until•it•slides•fully•into•place•(see image A).•Flex•retainer•bar•to•insert•the•other• end•on•the•other•side. Step 7: Plug•the•power•cord•into•the•wall•outlet•and•run•the•test•on•pages•29•–•30•of•this• manual.•You•may•want•to•familiarize•yourself•with•the•remote•control•functions•(pages 11 – 18)•prior•to•running•the•test.•...

  • Page 10: Remote Control

    OWNER’S MANUAL Programmable•Position Preset•Zero•Gravity•Position Preset•Anti•Snore•Position Preset•Lounge•Position Preset•TV/Read•Position REMOTE Remote•Lock/Unlock Overview CONTROL All•of•the•functions•of•the•bed•can•be•operated•with•the•remote•control.•The•remote• control•comes•with•pre-programmed•buttons•that•will•automatically•adjust•when•pressed,• Head•Up/Down Foot•Up/Down or•you•can•manually•control•adjustments•using•the•arrow•buttons•on•the•remote•control.• See•the•diagram•to•the•right•(see image A)•for•a•complete•list•of•remote•control•functions. *Head/Foot•Down Remote Control Battery Installation *Head/Foot•Up Preset•Flat•Position Remove•the•battery•cover•on•the•back•side•of•the•remote•control.•Insert•the•three• Timer•Setting•&•Massage•Off included•AAA•batteries•(see image B). Back•Massage•On/Intensity Foot•Massage•On/Intensity Programmable Buttons Massage•Off/Recall•Last•Setting Massage•Type Zero•Gravity,•Anti•Snore,•TV/Read,•and•Lounge•are•all•pre-programmed•positions•that•can• 4•massage•options:• be•adjusted•and•saved•to•match•your•preference.•Additionally,•the•M555•features•one• Rhythm, Wave, Pulse, or Constant memory•position•(MEM)•that•can•be•programmed•for•your•convenience.•Simply•adjust•...
  • Page 11 OWNER’S MANUAL REMOTE Overview CONTROL The•original•remote•that•comes•in•the•box•is•already•paired•to•the•foundation.•No•further• PAIRING action•is•required.•In•the•event•that•the•remote•is•not•paired•with•the•base,•begin•by• checking•the•following. Step 1: Ensure•the•remote•batteries•are•functioning.•Replace•if•necessary. Step 2: Ensure•the•power•cord•is•plugged•into•a•powered•source. The•blue•pairing•button•can•also•be• Step 3: used•to•lower•the•base•to•the•flat• position•in•case•of•an•emergency Press•and•hold•the•Head•Up•and•Foot•Up•buttons•simultaneously•(see image A).•Then• (see battery backup section on also•press•and•hold•the•blue•button•on•the•control•box•cord•until•you•hear•two•beeps• pages 23 – 24). (see image B).
  • Page 12 Press•and•hold to•lock•or•unlock REMOTE CONTROL Lock Safety Feature The•remote•control•can•be•locked•to•prevent•movement•of•the•bed.•When•the•remote• control•is•locked,•no•buttons•will•function•and•the•Lock•button•will•illuminate•red•when•a• button•is•pressed. To lock the remote control: Press•and•hold•the•Lock•button•for•5•–•7•seconds,•or•until•the•button•stops•flashing•red. To unlock the remote control: Press•and•hold•the•lock•button•for•5-7•seconds,•or•until•the•button•stops•flashing. The•remote•is•now•unlocked•and•ready•to•use.
  • Page 13 OWNER’S MANUAL NOTE: Allow the massage MASSAGE function to rest for 30 Massage Function minutes after each use. To•activate•the•massage•function,•press•the•desired•Back•or•Foot•button•once.•To•adjust•the• intensity•of•the•massage•function,•press•the•Back•or•Foot•button•again.•There•are•three•levels• of•intensity.• Massage Timer With•the•massage•function•in•use,•press•the•Timer•button•to•select•a•10,•20,•or•30•minute• massage.•The•light•below•will•illuminate•indicating•which•timer•setting•is•activated. Timer•Setting•&•Massage•Off Massage Type Back•Massage•On/Intensity Foot•Massage•On/Intensity (3•intensity•levels) (3•intensity•levels) There•are•four•massage•options:•oscillate,•wave,•pulse•or•constant.•Press•the•Type•button• Massage•Off/Recall•Last•Setting to•activate•an•alternate•massage•option.• Massage•Type 4•massage•options:• Underbed•LED•Lights Massage Off/Recall Last Setting Oscillate,•Wave,•Pulse Timer•Indicator•Lights or•Constant...
  • Page 14 OWNER’S MANUAL ELECTRICAL COMPONENT SETUP Overview The•electronic•components•are•pre-installed•and•no•assembly•is•necessary;• however,•some•setting•and•input•locations•are•important•for•proper•setup• Foot•Motor•Input Underbed•Light•Input and•functionality•(see images A and B to become familiar with input, setting Head•Motor•Input and part locations). Massage USB•Input...
  • Page 15 OWNER’S MANUAL ELECTRICAL COMPONENT SETUP USB Ports USB•ports•are•located•under•the•head•portion•of•the•bed•base•at•two•locations• (see image A).•To•access•the•USB•ports,•press•the•Head•Up•button•to•raise•the•bed• and•reveal•the•USB•ports.•Once•your•device•is•plugged•into•the•USB•port,•you•may• lower•or•adjust•the•bed•to•your•preference.

  • Page 16: Backup Battery

    OWNER’S MANUAL BACKUP Overview BATTERY Important: The backup battery is only to be used in case of a power outage. Batteries are not to be used for normal operation of the bed. The backup battery will not support repeated movement for an extended period of time. Backup Battery Use Use•two•9V•batteries•only•(not•included).•If•a•power•outage•occurs,•install•the•...

  • Page 17: Synchronizing Two Bases

    OWNER’S MANUAL SYNCHRONIZING OPTION 1: WIRELESS press•the•blue•Pairing•button•on•the•power• bases•and•remove•the•batteries• cord•for•Base•B.•You•should•hear•two•beeps.• from•each•remote.•After•five• TWO BASES minutes,•reconnect•Base•A•and•Base• Pair Single Remote to Operate Step 4: B•to•the•power•source•and•return• Two Bases Simultaneously (for Twin XL and the•batteries•to•Remote•A•and• Ensure•Remote•A•moves•both•bases•by• Split sizes only) Remote•B.•Then•repeat•steps•1-6.• pressing•any•button•on•the•remote•control. Step 1: Plug•Base•A•and•Base•B•into NOTE:•To operate the beds Pair Second Remote to Operate your•outlet.•...
  • Page 18 OWNER’S MANUAL SYNCHRONIZING TWO BASES (for Twin XL and OPTION 2: WIRED Split sizes only) Step 1: Place•two•Twin•XL•or•split•size•adjustable•bases•next•to•each•other•in•desired• location. Plug•in•Sync•Cable•(see image A)•to•the•control•box•of•each•base•into• the•“Program”•input•(see image B) on•the•control•box.• Step 2: With•the•connecting•cable•installed,•use•remote•and•test•all•functions•of•the•bed• base. (see pages 29-30). If•remotes•are•not•working,•troubleshoot•the•problem•by• following•the•instructions•on (pages 13-14). The•two•bases•are•now•connected•and•ready•for•normal•use.
  • Page 19 OWNER’S MANUAL TEST ALL Zero•Gravity•Preset Head/Foot•Up FUNCTIONS Anti•Snore•Preset Head/Foot•Down TV/Read•Preset Foot•Up Lounge•Preset Foot•Down Memory Back•Massage/Intensity Remote•Lock Foot•Massage/Intensity Head•Up Timer Massage•Off/Last Head•Down Overview Flat Massage•Type Underbed•LED•Lights To•ensure•proper•setup,•use•remote•and•test•all•functions•for•3•seconds. Important: Always return the base to the flat position when switching between preset options.
  • Page 20 OWNER’S MANUAL NOTES: ADDITIONAL If one or more functions of the bed have stopped working or one or more of the remote HELP control buttons activate the wrong function: Check•under•the•bed•base•to•verify•the•wired•connections•are•secure•and•there•are•no•cords• or•bedding•obstructing•the•movement•of•the•base.•If•the•remote•control•activates•the•wrong• function,•the•motors•are•plugged•into•the•wrong•input•on•the•control•box.•Switch•the•input• location•of•the•cords•on•the•control•box. The remote control lights no longer illuminate / the remote won’t operate the bed functions: Ensure•remote•lock•has•been•deactivated•(see pages 15 –...

  • Page 21: Limited Warranty

    YEARS 2 – 5: dealing, custom, trade, or otherwise. Malouf® shall not be liable for any consequential damages or losses arising from the During the years 2 – 5 from the date of purchase, Malouf® will offer replacement parts for purchase, installation and/or use of this product.
