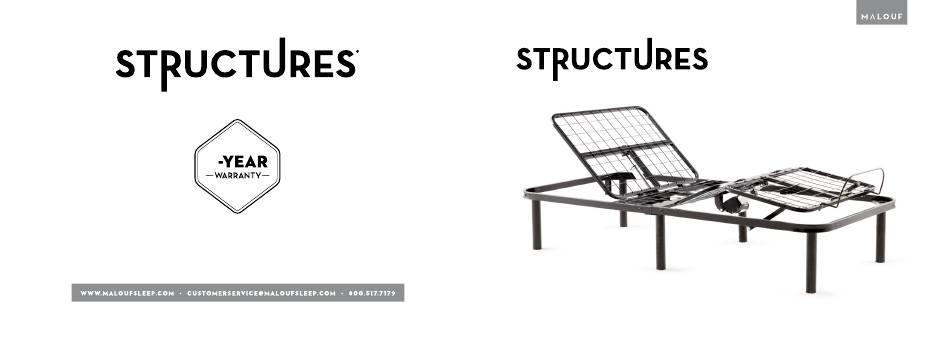

- Page 1 OWNER’S MANUAL N 15 0 A DJ USTA BL E BAS E This STRUCTURES product is backed by a 5-year limited warranty. ® For more information, visit: www.maloufsleep.com...
- Page 2 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE WARNINGS IMPORTANT: PLEASE READ ALL SAFETY INSTRUCTIONS THOROUGHLY BEFORE USING THIS PRODUCT. SAVE THESE INSTRUCTIONS. BEFORE USE SMALL CHILDREN / PETS Carefully remove packaging. Take care not to damage the bed frame or any included parts. Immediately dispose of all packing materials that may pose a suffocation risk.
- Page 3 • If a short-circuit occurs, a fuse in the electrical motor compartment will be blown in order to protect the electrical components. Should this occur, the customer should seek professional assistance by calling a licensed electrician or by contacting customer service at: 800.517.7179 For any questions or concerns regarding this product please contact malouf directly: ®...
- Page 4 N1 5 0 ADJ USTAB L E BA SE CONTENTS Overview 1 - 2 Assembly 3 - 8 Remote Control 9 - 10 For any questions or concerns regarding this product please contact malouf directly: ® 11 - 14 Test All Functions/Additional Help Warranty Information 15 - 16...

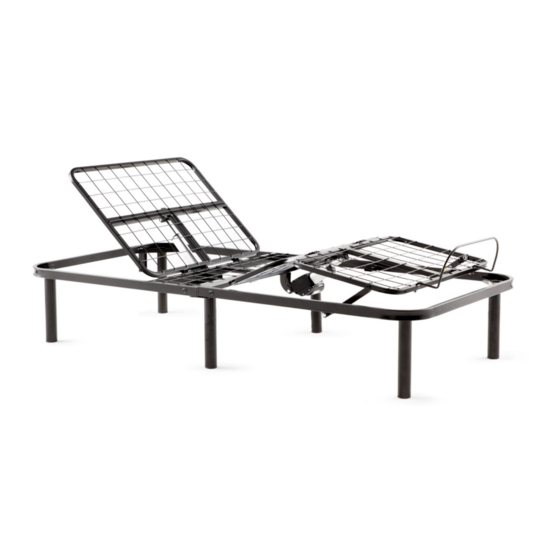

- Page 5 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE OVERVIEW Bed Motor Get to know your product Before beginning assembly of the Structures ™ N150 Adjustable Base, please take a moment to familiarize yourself with the parts and location of components. See the adjacent image for a detailed overview.
- Page 6 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE ASSEMBLY Step 1: Place the box in the room the bed will be used with the bottom of the box facing up. Carefully remove packaging material, taking care not to puncture the box with any sharp objects.
- Page 7 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE ASSEMBLY Step 4: Install the power cord by connecting the cord jack to the receptacle on the bottom of the bed frame (see image A). Be sure the cord is connected completely and securely. Step 5: Install remote by plugging cord jack into the receptacle cord on the bottom of the bed frame (see image B).
- Page 8 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE ASSEMBLY Step 7: Plug the power cord into the wall outlet and run the test on pages 11 – 12 of this manual. You may want to familiarize yourself with the remote control functions (pages 9 –...
- Page 9 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE REMOTE CONTROL Head Up Head Down Foot Up Foot Down Overview Head/Foot Up Head/Foot Down If you haven’t yet, plug the remote control into the receptacle underneath the bed near the bed motor.
- Page 10 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE TEST ALL FUNCTIONS Head Up Head Down Foot Up Foot Down Head/Foot Up Overview Head/Foot Down To ensure proper setup, use remote and test all functions for five (5) seconds.
- Page 11 OWNER’S MANUAL N1 5 0 ADJ USTAB L E BA SE ADDITIONAL If one or more functions of the bed have stopped working: HELP Check under the bed base to verify the wired connections are secure and there are no cords or bedding obstructing the movement of the base. The remote control won’t operate the bed functions: Make sure the remote control is plugged in completely to the input location underneath the bed.
- Page 12 The foregoing warranty shall be exclusive and in lieu of any other warranty, express or implied, including warranties of merchantability and fitness for a particular purpose and all other warranties otherwise arising by operation of law, course of dealing, custom, trade, or otherwise. Malouf® shall not be liable for any...
