OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Structures S750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Malouf Structures S750

Summary of Contents for Malouf Structures S750

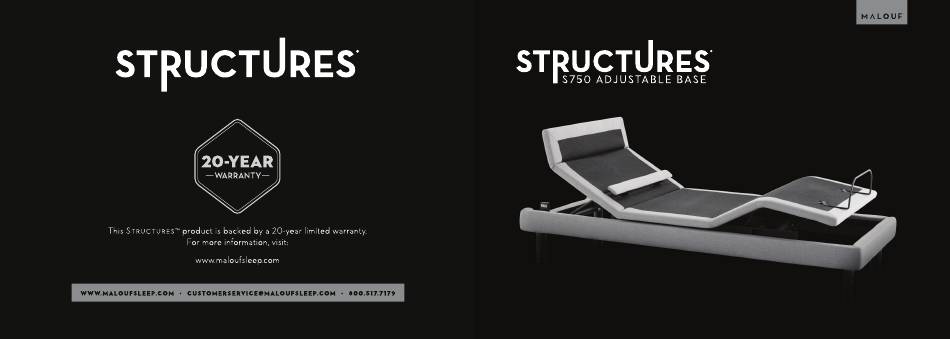

  • Page 1 OWNER’S MANUAL...
  • Page 2 OWNER’S MANUAL PACEMAKERS • Some pacemakers may detect motion by this product as a false sense of movement and/or exercise. This may or may not WARNINGS IMPORTANT: PLEASE READ ALL SAFETY INSTRUCTIONS THOROUGHLY affect your pacemaker. Talk to a physician to address any concerns. BEFORE USING THIS PRODUCT.
  • Page 3 RF exposure requirement and void user’s right to operate the device. POWER RATINGS • INPUT: AC 100-240V - 50/60Hz, 1.5 Amp • OUTPUT: DC 29V-2A • This•product•is•designed•to•have•no•maintenance•requirements•by•the•user.•Please•do•not•open• any•motor•compartments,•alter•the•wiring,•modify•the•base,•or•change•the•product•in•any•way•as• it•will•void•the•warranty.••• For•any•questions•or•concerns•regarding•this•product•please•contact•malouf •directly: ®...
  • Page 4 OWNER’S MANUAL CONTENTS Overview 1•-•2 Assembly 3•-•8 Remote Control 9•-•16 Massage 17•-•18 Electrical Components and Backup Battery 19•-•24 Synchronizing Two Bases 25•-•26 Test All Functions / Additional Help 27•-•30 Warranty Information 31•-•32...

  • Page 5: Get To Know Your Product

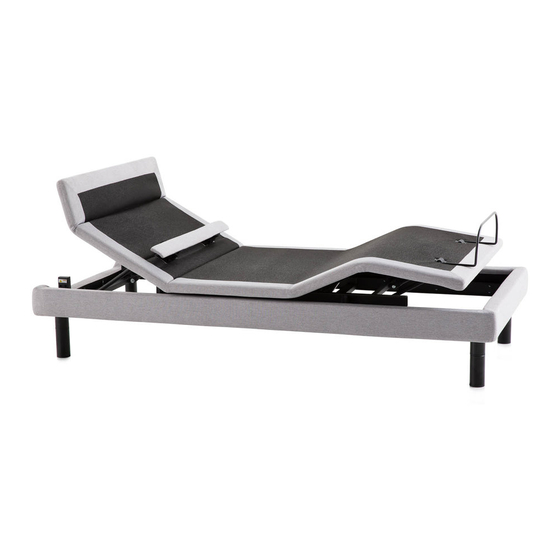

    Back Massage Head Motor Foot Motor OWNER’S MANUAL OVERVIEW Lumbar Foot Massage Head Tilt Control Box Underbed USB Ports LED Lights Get to know your product Power Cord Before•beginning•assembly•of•the•Structures ™•S750•Adjustable•Base,•please• Power Supply Box take•a•moment•to•familiarize•yourself•with•the•parts•and•location•of•components.• Retainer•Bar See•the•adjacent•image•for•a•detailed•overview. Wireless Remote Control If•any•parts•or•components•are•missing,•or•are•different•than•shown•in•the• adjacent•image,•do•not•attempt•to•complete•the•assembly•process•and•contact•...
  • Page 6 OWNER’S MANUAL ASSEMBLY Before you begin... A•minimum•of•two•people•are•required•to•assemble•this•adjustable•base. Open•box•on•the•floor•in•the•flat•position,•bottom•facing•up,•to•avoid•damage. Step 1: Place•the•box•in•the•room•the•bed•will•be•used•with•the•bottom•of•the•box•facing•up.• Carefully•remove•the•binding•straps•and•packaging•material,•taking•care•not•to•puncture• the•box•with•any•sharp•objects.• Step 2: Remove•the•bed•base•from•the•box•and•set•mattress•(top)•side•down•on•the•floor•(see image A).•Remove•all•plastic•and•zip•ties.•All•components•and•parts•are•located•in•the• underside•of•the•base.•Remove•attached•parts•and•set•aside•in•preparation•for•assembly• (see image B).•Check•to•make•sure•all•parts•have•been•included•and•are•not•damaged•(see page 2 for a list of all parts and components). Twin XL & Split Sizes Only...
  • Page 7 OWNER’S MANUAL ASSEMBLY Step 3: Hand•tighten•all•four•legs•into•the•bed•frame•until•secure.•The•legs•can•be•used• with•or•without•the•height•extension•piece.•Note•that•there•are•two•location•options• for•each•leg,•an•outside•placement•or•an•inside•placement.•Tighten•the•legs•in• the•location•of•your•choosing,•maintaining•a•consistent•inside•or•outside•location• throughout.•Take•care•not•to•over•tighten•(see image A). Step 4: With•two•to•four•people,•lift•the•bed•by•the•metal•frame•and•turn•it•over•so•the• mattress•(top)•side•is•facing•up•(see image B).•Take•caution•not•to•lift•the•bed•with•the• fabric,•or•to•use•the•legs•as•pivot•points•causing•angled•pressure•as•this•may•cause• damage.•Move•the•bed•to•the•desired•location.
  • Page 8 OWNER’S MANUAL ASSEMBLY Step 5: To•install•the•mattress•retainer•bar,•insert•one•end•of•the•retainer•bar•in•its•respective•slot• until•it•slides•fully•into•place•(see image A).•Flex•retainer•bar•to•insert•the•other•end•on•the• other•side.•The•retainer•bar•is•now•installed. Step 6: Plug•the•power•cord•into•the•wall•outlet•and•run•the•test•on•pages•27-28•of•this•manual.• You•may•want•to•familiarize•yourself•with•the•remote•control•functions•(pages 9 – 16)•prior• to•running•the•test.

  • Page 9: Remote Control

    OWNER’S MANUAL Programmable•Positions•1•&•2 Preset•“Zero•Gravity”•Position Preset•“Anti•Snore”•Position REMOTE Preset•“Lounge”•Position Preset•“TV/Read”•Position CONTROL Lumbar•Up Lumbar•Down Remote•Lock/Unlock Head•Tilt•Up Foot•Up/Down Head•Up/Down Head•Tilt•Down Preset•Flat•Position Timer•Indicator•Lights Timer•Setting•&•Massage•Off Overview Back•Massage•On/Intensity Foot•Massage•On/Intensity Massage•Type Massage•Off/Recall•Last•Setting All•of•the•functions•of•the•bed•can•be•operated•with•the•remote•control.•The•remote• 4•massage•options;• control•comes•with•pre-programmed•buttons•that•will•automatically•adjust•when•pressed,• Rhythm, Wave, Pulse, or Constant or•you•can•manually•control•adjustments•using•the•arrow•buttons•on•the•remote•control.• See•the•diagram•to•the•right•(image A)•for•a•complete•list•of•remote•control•functions. Underbed•Lights...

  • Page 10: Remote Control Battery Installation

    OWNER’S MANUAL NOTE: The•four•buttons•shown•here•are•pre-programmed• with•the•manufacturers•suggested•bed•positions.•No• REMOTE programming•is•necessary•by•the•user•unless•modified• bed•positions•are•desired. CONTROL The•“MEM•1”•and•“MEM•2”,•(or•Memory•1•and•Memory• Remote Control Battery Installation: 2)•button•is•programmable•for•custom•positions. Remove•the•battery•cover•on•the•back•side•of•the•remote•control.•Insert•three•AAA• batteries•(included)•as•shown•(see image B). Custom Programming Buttons The•“ZERO•GRAVITY”,•“ANTI•SNORE”,•“TV/READ”,•“LOUNGE”•and•“MEM•1”•and•“MEM• 2”•buttons•can•be•custom•programmed•to•positions•of•your•choosing•(see image A).•To• program•the•remote•preset•buttons: 1.•Adjust•the•bed•to•the•desired•position. 2.•Press•and•hold•the•desired•button•for•programming. 3.•The•“MASSAGE•TIMER”•lights•will•illuminate.•The•button•is•now•programmed.
  • Page 11 OWNER’S MANUAL REMOTE CONTROL PAIRING Step 1: Press•ANY•button Ensure•the•remote•batteries•are•installed•and•are•functioning•(see pages 11 - 12).•Ensure•the• to•pair•remote•to•base. power•cord•is•plugged•into•a•powered•source. Step 2: Once•the•base•is•plugged•in,•the•underbed•LED•lights•will•begin•to•flash•(see image A).•Press• any•button•on•the•remote,•and•the•LED•lights•should•turn•off•(see image B).•The•remote•is• now•paired. Backup Pairing If•remote•loses•pairing•with•the•base,•or•if•the•remote•is•lost/misplaced•and•a•new•remote• needs•to•be•paired,•disconnect•and•reconnect•the•power•cord•from•the•wall.•Then•follow• steps•1•and•2•above•to•finish•pairing•the•remote.
  • Page 12 REMOTE CONTROL Press•and•hold• to•lock/unlock Lock Safety Feature The•remote•control•can•be•locked•to•prevent•movement•of•the•bed.•When•the•remote• control•is•locked,•no•buttons•will•function•and•the•LOCK•button•will•illuminate•red•when•a• button•is•pressed. To lock the remote control: Press•and•hold•the•lock•button•for•5-7•seconds,•or•until•the•button•stops•flashing•red.•The• remote•is•now•locked. To unlock the remote control: Press•and•hold•the•lock•button•for•5-7•seconds,•or•until•the•button•stops•flashing.•The•remote• is•now•unlocked•and•ready•to•use.
  • Page 13 OWNER’S MANUAL NOTE: Allow the massage MASSAGE function to rest for thirty Massage Function: minutes after each use. To•activate•the•massage•function,•press•the•desired•“BACK”•and/or•"FOOT"•button•once.•To• adjust•the•intensity•of•the•massage•function,•press•the•“BACK”•and/or•"FOOT"•button•again.• There•are•three•levels•of•intensity.• Massage Timer: With•the•massage•function•in•use,•press•the•“TIMER”•button•to•select•a•10,•20,•or•30•minute• massage.•The•light•above•will•illuminate•indicating•which•timer•setting•is•activated. Massage Type: Timer•Setting•&•Massage•Off Timer•Indicator•Lights There•are•four•massage•type•options;•oscillate,•wave,•pulse•or•constant.•Press•the•“TYPE”• Head•Massage•On/Intensity Foot•Massage•On/Intensity button•to•activate•an•alternate•massage•option.• (3•intensity•levels) (3•intensity•levels) Massage Off/Recall Last Setting: Massage•Type 4•massage•options;•...
  • Page 14 OWNER’S MANUAL ELECTRICAL COMPONENT SETUP Power•Supply•Input Pair•Button Overview Control•Box•Connecting USB•Input Cable•Input The•electronic•components•are•pre-installed•and•no•assembly•is•necessary,• Underbed•Light•Input however,•some•setting•and•input•locations•are•important•for•proper•set•up• and•functionality•(see images A & B to become familiar with input, setting and part locations). Head•Motor•Input Multi-Function•Port•(MFP) Foot•Motor•Input Massage•Motor•Input Tilt•Motor•Input Lumbar•Motor•Input...

  • Page 15: Usb Ports

    OWNER’S MANUAL ELECTRICAL COMPONENT SETUP USB Ports USB•ports•are•located•under•the•head•portion•of•the•bed•base•at•two•locations•(see image A).•To•access•the•USB•ports,•press•the•“HEAD•UP”•button•to•raise•the•bed• and•reveal•the•USB•ports.•Once•your•device•is•plugged•into•the•USB•port,•you•may• lower•or•adjust•the•bed•to•your•preference.

  • Page 16: Installing Batteries

    OWNER’S MANUAL BACKUP Overview BATTERY Important: The backup battery is only to be used in case of a power outage. Batteries are not to be used for normal operation of the bed. The backup battery will not support repeated movement for an extended period of time. Backup Battery Use: Use•two•9V•batteries•only•(not•included).•If•a•power•outage•occurs,•install•the•...

  • Page 17: Synchronizing Two Bases

    OWNER’S MANUAL SYNCHRONIZING TWO BASES (for Twin XL and HOW TO CONNECT split sizes only) Step 1: Place•two•Twin•XL•or•split•size•adjustable•bases•next•to•each•other•in•desired• location. Plug•in•“Control•Box•Connecting•Cable”•(see image A)•to•the•control• box•of•each•base•into•the•“Sync”•input•(see image B) on•the•control•box.• Step 2: With•the•connecting•cable•installed,•use•remote•and•test•all•functions•of•the•bed• base. (see pages 27-28). If•remotes•are•not•working,•troubleshoot•the•problem•by• following•the•instructions•on (pages 13-14). The•two•bases•are•now•connected•and•ready•for•use.
  • Page 18 OWNER’S MANUAL TEST ALL Zero•Gravity•Preset Head•Tilt•Up FUNCTIONS Anti-Snore•Preset Head•Tilt•Down TV/Read•Preset Foot•Up Lounge•Preset Foot•Down Memory•1 Back•Massage/Intensity Memory•2 Foot•Massage/Intensity Remote•Lock Timer Lumbar•Up Massage•Off/Last Overview Lumbar•Down Massage•Type Head•Up Underbed•LED•Lights To•ensure•proper•setup,•use•remote•and•test•all•functions•for•3•seconds. Head•Down Important: Always return the base to the flat position when switching Flat between preset options.
  • Page 19 OWNER’S MANUAL NOTES: ADDITIONAL If one or more functions of the bed have stopped working or one or more of the remote HELP control buttons activate the wrong function: Check•under•the•bed•base•to•verify•the•wired•connections•are•secure•and•there•are•no•cords• or•bedding•obstructing•the•movement•of•the•base.•If•the•remote•control•activates•the•wrong• function,•the•motors•are•plugged•into•the•wrong•input•on•the•control•box.•Switch•the•input• location•of•the•cords•on•the•control•box. The remote control lights no longer illuminate / the remote won’t operate the bed functions: Ensure•remote•lock•has•been•deactivated•(see pages 15 - 16).•Make•sure•the•batteries•are•...

  • Page 20: Limited Warranty
