OWNER'S MANUAL
S 75 5 A DJ U STA B L E B A S E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Structures S755 and is the answer not in the manual?

Questions and answers

Pamela Sue Fendrych
May 9, 2025

I want to know how to connect a king headboard to two twin Malouf Structures S755 adjustable bases.

1 comments:
Mr. Anderson
May 19, 2025

To connect a king headboard to two twin Malouf Structures S755 adjustable bases (used together as a split king), remove the slats from your bed frame if using a platform frame. Then place the two twin XL bases inside the frame. Attach the king headboard to the bed frame or a compatible headboard bracket, ensuring it aligns with the combined width of the two bases. Use compatible hardware or brackets designed for split adjustable bases and king headboards.

This answer is automatically generated

Brandon Morse
March 17, 2025

The massage does not work on the back part of bed

1 comments:
Mr. Anderson
March 17, 2025

The massage feature on the back part of the Malouf Structures S755 bed may not be working due to the following reasons:

1. Power Connection Issues – Ensure the power cords are properly connected. Try plugging the base into a different electrical outlet or using a grounded surge protector.
2. Remote Control Issues – Check if the remote lock is deactivated. Ensure the batteries are installed correctly or replace them with three new AAA batteries.
3. Electronic Reset Needed – Unplug the base for 1 hour to reset the electronic components.
4. Massage Motor Input – Verify that the back massage motor input is properly connected.
5. Massage Settings – Make sure the massage function is turned on and set to an appropriate intensity level.

If the issue persists, further assistance may be required.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Malouf Structures S755

  • Page 1 OWNER’S MANUAL S 75 5 A DJ U STA B L E B A S E...
  • Page 2 OWNER’S MANUAL PACEMAKERS • Some pacemakers may detect motion by this product as a false sense of movement and/or exercise. This may or may not WARNINGS IMPORTANT: PLEASE READ ALL SAFETY INSTRUCTIONS THOROUGHLY affect your pacemaker. Talk to a physician to address any concerns. BEFORE USING THIS PRODUCT.
  • Page 3 RF exposure requirement and void user’s right to operate the device. POWER RATINGS • INPUT: AC 100-240V - 50/60Hz, 1.5 Amp • OUTPUT: DC 29V-2A • This•product•is•designed•to•have•no•maintenance•requirements•by•the•user.•Please•do•not•open• any•motor•compartments,•alter•the•wiring,•modify•the•base,•or•change•the•product•in•any•way•as• it•will•void•the•warranty.••• For•any•questions•or•concerns•regarding•this•product•please•contact•malouf •directly: ®...
  • Page 4 OWNER’S MANUAL CONTENTS Overview 1•-•2 Assembly 3•-•8 Remote Control 9•-•16 Massage 17•-•18 Electrical Components and Backup Battery 19•-•24 Synchronizing Two Bases 25•-•28 Test All Functions / Additional Help 29•-•32 Warranty Information 33•-•34...
  • Page 5: Get To Know Your Product

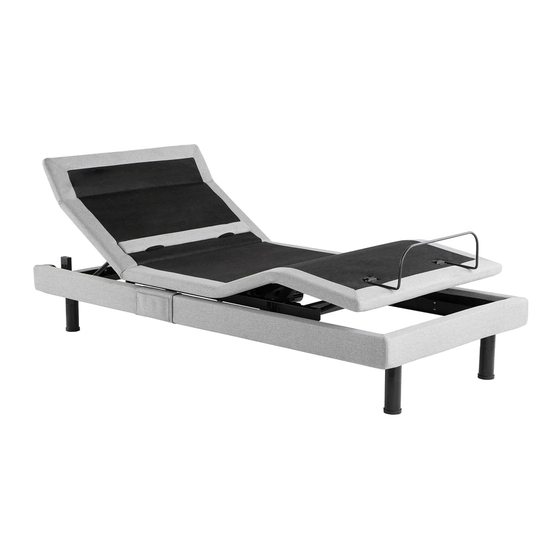

    Lumbar Motor Head Motor Foot Motor OWNER’S MANUAL OVERVIEW Back Massage Foot Massage Control Box Head Tilt Underbed LED Lights USB Ports (each side) (each side) Get to know your product Before•beginning•assembly•of•the•Structures ™•S755•Adjustable•Base,•please• Power Supply Box take•a•moment•to•familiarize•yourself•with•the•parts•and•location•of•components.• Retainer•Bar See•the•adjacent•image•for•a•detailed•overview. Wireless Remote Control If•any•parts•or•components•are•missing,•or•are•different•than•shown•in•the•...
  • Page 6 OWNER’S MANUAL ASSEMBLY Before you begin... A•minimum•of•two•people•are•required•to•assemble•this•adjustable•base. Open•box•on•the•floor•in•the•flat•position,•bottom•facing•up,•to•avoid•damage. Step 1: Place•the•box•in•the•room•the•bed•will•be•used•with•the•bottom•of•the•box•facing•up.• Carefully•remove•the•binding•straps•and•packaging•material,•taking•care•not•to•puncture• the•box•with•any•sharp•objects.• Step 2: Remove•the•bed•base•from•the•box•and•set•mattress•(top)•side•down•on•the•floor•(see image A).•Remove•all•plastic•and•zip•ties.•All•components•and•parts•are•located•in•the• underside•of•the•base.•Remove•attached•parts•and•set•aside•in•preparation•for•assembly• (see image B).•Check•to•make•sure•all•parts•have•been•included•and•are•not•damaged•(see Split Sizes Only page 2 for a list of all parts and components).
  • Page 7 OWNER’S MANUAL ASSEMBLY Step 3: Hand•tighten•all•four•legs•into•the•bed•frame•until•secure.•The•legs•can•be•used• with•or•without•the•height•extension•piece.•Note•that•there•are•two•location•options• for•each•leg,•an•outside•placement•or•an•inside•placement.•Tighten•the•legs•in• the•location•of•your•choosing,•maintaining•a•consistent•inside•or•outside•location• throughout.•Take•care•not•to•over•tighten•(see image A). Note: Ensure the bottom of each leg has an end cap attached (see image B). Step 4: With•two•to•four•people,•lift•the•bed•by•the•metal•frame•and•turn•it•over•so•the• mattress•(top)•side•is•facing•up•(see image C).•Take•caution•not•to•lift•the•bed•with•the• fabric,•or•to•use•the•legs•as•pivot•points•causing•angled•pressure•as•this•may•cause• damage.•Move•the•bed•to•the•desired•location.
  • Page 8 OWNER’S MANUAL ASSEMBLY Step 5: To•install•the•mattress•retainer•bar,•insert•one•end•of•the•retainer•bar•in•its•respective•slot• until•it•slides•fully•into•place•(see image A).•Flex•retainer•bar•to•insert•the•other•end•on•the• other•side.•The•retainer•bar•is•now•installed. Step 6: Plug•the•power•cord•into•the•wall•outlet•and•run•the•test•on•pages•29-30•of•this•manual.• You•may•want•to•familiarize•yourself•with•the•remote•control•functions•(pages 9 – 16)•prior• to•running•the•test.
  • Page 9: Remote Control

    OWNER’S MANUAL Programmable•Positions•1•&•2 Preset•“Zero•Gravity”•Position Preset•“Anti•Snore”•Position REMOTE Preset•“Lounge”•Position Preset•“TV/Read”•Position CONTROL Foot•Up/Down Head•Up/Down Preset•Flat•Position Head•Tilt•Up Lumbar•Up Head•Tilt•Down Lumbar•Down Underbed•Lights Remote•Lock/Unlock Overview Back•Massage•On/Intensity Foot•Massage•On/Intensity All•of•the•functions•of•the•bed•can•be•operated•with•the•remote•control.•The•remote• Massage•Type Massage•Off/Recall•Last•Setting control•comes•with•pre-programmed•buttons•that•will•automatically•adjust•when•pressed,• 4•massage•options;• or•you•can•manually•control•adjustments•using•the•arrow•buttons•on•the•remote•control.• Timer•Setting Rhythm, Wave, Pulse, or Constant See•the•diagram•to•the•right•(image A)•for•a•complete•list•of•remote•control•functions. Timer•Indicator•Lights...
  • Page 10: Remote Control Battery Installation

    OWNER’S MANUAL NOTE: The•four•buttons•shown•here•are•pre-programmed• with•the•manufacturers•suggested•bed•positions.•No• REMOTE programming•is•necessary•by•the•user•unless•modified• bed•positions•are•desired. CONTROL The•“MEM•1”•and•“MEM•2”,•(or•Memory•1•and•Memory• 2)•buttons•are•programmable•for•custom•positions. Remote Control Battery Installation: Remove•the•battery•cover•on•the•back•side•of•the•remote•control.•Insert•three•AAA• batteries•(included)•as•shown•(see image B). Custom Programming Buttons The•Zero•Gravity,•Anti•Snore,•TV/Read,•Lounge,•and•Mem•1•and•Mem•2•buttons•can• be•custom•programmed•to•positions•of•your•choosing•(see image A).•To•program•the• remote•preset•buttons: 1.•Adjust•the•bed•to•the•desired•position. 2.•Press•and•hold•the•Flat•button•and•then•simultaneously•press•the•position•button•you• want•to•reprogram...
  • Page 11 OWNER’S MANUAL REMOTE Overview CONTROL The•original•remote•that•comes•in•the•box•is•already•paired•to•the•foundation.•No•further• PAIRING action•is•required.•In•the•event•that•the•remote•is•not•paired•with•the•base,•begin•by• checking•the•following. Step 1: Ensure•the•remote•batteries•are•functioning.•Replace•if•necessary. Step 2: Ensure•the•power•cord•is•plugged•into•a•powered•source. Step 3: The•blue•pairing•button•can•also•be• used•to•lower•the•base•to•the•flat• Press•and•hold•the•Head•Up•and•Foot•Up•buttons•simultaneously•(see image A).•Then• position•in•case•of•an•emergency also•press•and•hold•the•blue•button•on•the•control•box•cord•until•you•hear•two•beeps• (see battery backup section on (see image B). pages 23 – 24).
  • Page 12 REMOTE CONTROL Lock Safety Feature The•remote•control•can•be•locked•to•prevent•movement•of•the•bed.•When•the•remote• control•is•locked,•no•buttons•will•function•and•the•Lock•button•will•illuminate•red•when•a• button•is•pressed. Press•and•hold• To lock the remote control: to•lock•or•unlock Press•and•hold•the•Lock•button•for•5•–•7•seconds,•or•until•the•button•stops•flashing•red. To unlock the remote control: Press•and•hold•the•lock•button•for•5-7•seconds,•or•until•the•button•stops•flashing. The•remote•is•now•unlocked•and•ready•to•use.
  • Page 13 OWNER’S MANUAL NOTE: Allow the massage MASSAGE function to rest for thirty Massage Function: minutes after each use. To•activate•the•massage•function,•press•the•desired•Back•and/or•Foot•button•once.•To•adjust• the•intensity•of•the•massage•function,•press•the•Back•and/or•Foot•button•again.•There•are• three•levels•of•intensity.• Massage Timer: With•the•massage•function•in•use,•press•the•Timer•button•to•select•a•10,•20,•or•30•minute• massage.•The•light•below•will•illuminate•indicating•which•timer•setting•is•activated. Massage Type: Remote•Lock/Unlock There•are•four•massage•type•options;•oscillate,•wave,•pulse•or•constant.•Press•the•Type• Back•Massage•On/Intensity Foot•Massage•On/Intensity button•to•activate•an•alternate•massage•option.• (3•intensity•levels) (3•intensity•levels) Massage•Off/Recall•Last•Setting Massage•Type Massage Off/Recall Last Setting: Timer•Setting 4•massage•options;•...
  • Page 14 OWNER’S MANUAL ELECTRICAL COMPONENT SETUP Overview Head•Motor•Input The•electronic•components•are•pre-installed•and•no•assembly•is•necessary,• Underbed•Light•Input however,•some•setting•and•input•locations•are•important•for•proper•set•up• and•functionality•(see images A & B to become familiar with input, setting USB•Input Sync•Cable•Input• (see pages 27-28) and part locations). Massage•Motor•Input Foot•Motor•Input Lumbar•Motor•Input Tilt•Motor•Input...
  • Page 15: Usb Ports

    OWNER’S MANUAL ELECTRICAL COMPONENT SETUP USB Ports USB•ports•are•located•under•the•head•portion•of•the•bed•base•at•two•locations• (see image A).•To•access•the•USB•ports,•press•the•Head•Up•button•to•raise•the•bed• and•reveal•the•USB•ports.•Once•your•device•is•plugged•into•the•USB•port,•you•may• lower•or•adjust•the•bed•to•your•preference.
  • Page 16: Backup Battery

    OWNER’S MANUAL BACKUP Overview BATTERY Important: The backup battery is only to be used in case of a power outage. Batteries are not to be used for normal operation of the bed. The backup battery will not support repeated movement for an extended period of time. Backup Battery Use Use•two•9V•batteries•only•(not•included).•If•a•power•outage•occurs,•install•the•...
  • Page 17: Synchronizing Two Bases

    OWNER’S MANUAL SYNCHRONIZING OPTION 1: WIRELESS Pair Second Remote to Operate Two Bases Simultaneously TWO BASES Pair Single Remote to Operate Two Bases Simultaneously Step 4: (for Twin XL and Split sizes only) On•Remote•B,•press•and•hold•the•Head•Down• and•Foot•Down•buttons•simultaneously.•The• Step 1: remote•backlit•LEDs•will•turn•on•and•remain• Ensure•both•bases•(A•and•B)•are• illuminated. plugged•into•a•power•source.
  • Page 18 OWNER’S MANUAL SYNCHRONIZING TWO BASES (for Twin XL and OPTION 2: WIRED Split sizes only) Step 1: Place•two•Twin•XL•or•split•size•adjustable•bases•next•to•each•other•in•desired• location. Plug•in•Sync•Cable•(see image A)•to•the•control•box•of•each•base•into• the•“Sync”•input•(see image B) on•the•control•box.• Step 2: With•the•connecting•cable•installed,•use•remote•and•test•all•functions•of•the•bed• base. (see pages 29-30). If•remotes•are•not•working,•troubleshoot•the•problem•by• following•the•instructions•on (pages 13-14). The•two•bases•are•now•connected•and•ready•for•normal•use.
  • Page 19 OWNER’S MANUAL TEST ALL Zero•Gravity•Preset Head•Tilt•Up FUNCTIONS Anti-Snore•Preset Head•Tilt•Down TV/Read•Preset Foot•Up Lounge•Preset Foot•Down Memory•1 Back•Massage/Intensity Memory•2 Foot•Massage/Intensity Remote•Lock Timer Lumbar•Up Massage•Off/Last Overview Lumbar•Down Massage•Type Head•Up Underbed•LED•Lights To•ensure•proper•setup,•use•remote•and•test•all•functions•for•3•seconds. Head•Down Important: Always return the base to the flat position when switching Flat between preset options.
  • Page 20 OWNER’S MANUAL NOTES: ADDITIONAL If one or more functions of the bed have stopped working or one or more of the remote HELP control buttons activate the wrong function: Check•under•the•bed•base•to•verify•the•wired•connections•are•secure•and•there•are•no•cords• or•bedding•obstructing•the•movement•of•the•base.•If•the•remote•control•activates•the•wrong• function,•the•motors•are•plugged•into•the•wrong•input•on•the•control•box.•Switch•the•input• location•of•the•cords•on•the•control•box. The remote control lights no longer illuminate / the remote won’t operate the bed functions: Ensure•remote•lock•has•been•deactivated•(see pages 15 - 16).•Make•sure•the•batteries•are•...
  • Page 21: Limited Warranty

    5 years after the warranty commencement date, WARRANTY and Malouf® shall bear the remainder of the cost of the replacement part. The purchaser shall bear all service, HOW LONG COVERAGE LASTS transportation, labor, and shipping costs associated with the repair or replacement of the defective part(s).
