OWNER’S MANUAL PACEMAKERS • Some pacemakers may detect motion by this product as a false sense of movement or exercise. This may or may not affect WARNINGS IMPORTANT: PLEASE READ ALL SAFETY INSTRUCTIONS THOROUGHLY your pacemaker. Talk to a physician to address any concerns. BEFORE USING THIS PRODUCT.
Page 3
RF exposure requirement and void user’s right to operate the device. POWER RATINGS • INPUT: AC 100-240V - 50/60Hz, 1.5 Amp • OUTPUT: DC 29V-2A • This product is designed to have no maintenance requirements by the user. Please do not open any motor compartments, alter the wiring, modify the base, or change the product in any way as it will void the warranty. For any questions or concerns regarding this product please contact malouf directly. ®...

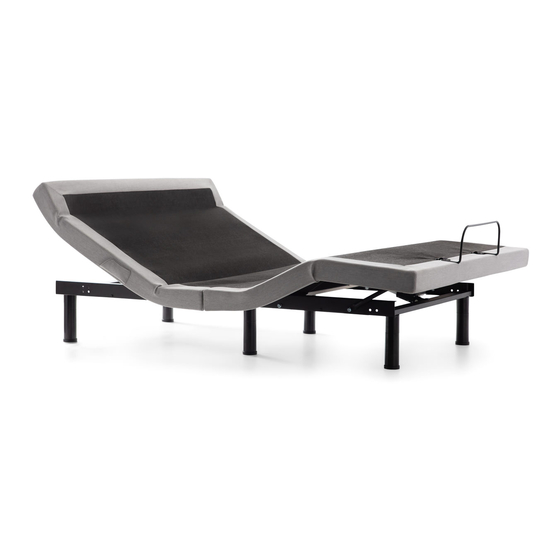

Head Motor Foot Motor Back Massage OWNER’S MANUAL Underbed OVERVIEW LED Light Foot Massage USB Ports Control Box Head Tilt Motor Underbed LED Light Get to Know Your Product Retainer Bar Power Supply Box Before beginning assembly of the Structures ™ S655 Adjustable Base, please take a moment to familiarize yourself with the parts and location of components. See the adjacent image for a detailed overview. Wireless Remote Control (12) 3-Inch Legs If any parts or components are missing, or are different than shown in the ...
OWNER’S MANUAL ASSEMBLY Before You Begin A minimum of two people are required to assemble this adjustable base. Open box on the floor in the flat position, bottom facing up, to avoid damage. Step 1: Place the box in the room the bed will be used with the bottom of the box facing up. Carefully remove the binding straps and packaging material, taking care not to puncture the box with any sharp objects. Step 2: Remove the bed base from the box and set mattress (top) side down on the floor (see image A). Remove all plastic and zip ties. All components and parts are located in the underside of the base. Remove attached parts and set aside in preparation for assembly (see image B). Check to make sure all parts have been included and are not damaged (see page 2 for a list of all parts and components). King Size Only...
Page 7
OWNER’S MANUAL Middle Leg on King Size Only ASSEMBLY Head Step 3: Hand tighten all six legs (seven for King size) into the bed frame until secure. Note that there are two location options for each leg, an outside placement or an inside placement. Tighten the legs in the location of your choosing, maintaining a consistent inside or outside location throughout. Take care not to over tighten (see image A). To reach a 15-inch height from floor to top of deck one should use a 3-inch + 3-inch + 6-inch leg assembly. Note: Ensure the bottom of each leg has an end cap attached (see image B). Step 4: Install the power cord by connecting the cord jack to the receptacle on the bed Foot motor (see image C). Be sure the cord is connected completely and securely.
Page 8
OWNER’S MANUAL ASSEMBLY Step 5: With two to four people, lift the bed by the metal frame and turn it over so the mattress (top) side is facing up (see image A). Take caution not to lift the bed with the fabric, or to use the legs as pivot points causing angled pressure as this may cause damage. Move the bed to the desired location.
Page 9
OWNER’S MANUAL ASSEMBLY Step 6: To install the mattress retainer bar, insert one end of the retainer bar in its respective slot until it slides fully into place (see image A). Flex retainer bar to insert the other end on the other side. Step 7: Plug the power cord into the wall outlet and run the test on pages 29 – 30 of this manual. You may want to familiarize yourself with the remote control functions (pages 11 – 18) prior to running the test. ...
Programmable Positions OWNER’S MANUAL Preset Zero Gravity Position Preset Anti Snore Position Preset TV/Read Position Preset Lounge Position REMOTE Overview CONTROL Head Up/Down Foot Up/Down All of the functions of the bed can be operated with the remote control. The remote control comes with pre-programmed buttons that will automatically adjust when pressed, or you can manually control adjustments using the arrow buttons on the remote control. See the diagram to the right (see image A) for a complete list of remote control functions. *Head/Foot Up *Head Tilt Up Remote Control Battery Installation Preset Flat Position *Head Tilt Down *Head/Foot Down Remove the battery cover on the back side of the remote control. Insert the three Underbed Lights Remote Lock/Unlock included AAA batteries (see image B). Back Massage On/Intensity Foot Massage On/Intensity Programmable Buttons Massage Type Zero Gravity, Anti Snore, TV/Read, and Lounge are all pre-programmed positions that Massage Off/Recall Last Setting 3 massage options: ...
Page 11
OWNER’S MANUAL REMOTE Overview CONTROL The original remote that comes in the box is already paired to the foundation. No further PAIRING action is required. In the event that the remote is not paired with the base, begin by checking the following. Step 1: Ensure the remote batteries are functioning. Replace if necessary. Step 2: Ensure the power cord is plugged into a powered source. The blue pairing button can also be Step 3: used to lower the base to the flat position in case of an emergency Press and hold the Head Up and Foot Up buttons simultaneously (see image A). Then (see battery backup section on also press and hold the blue button on the control box cord until you hear two beeps pages 23 – 24). (see image B).
Page 12
REMOTE CONTROL Lock Safety Feature The remote control can be locked to prevent movement of the bed. When the remote control is locked, no buttons will function and the Lock button will illuminate red when a button is pressed. Press and hold To lock the remote control: to lock or unlock Press and hold the Lock button for 5 – 7 seconds, or until the button stops flashing red. To unlock the remote control: Press and hold the lock button for 5-7 seconds, or until the button stops flashing. The remote is now unlocked and ready to use.
OWNER’S MANUAL MASSAGE Massage Function To activate the massage function, press the desired Back or Foot button once. To adjust the intensity of the massage function, press the Back or Foot button again. There are three levels of intensity. NOTE: Allow the massage Massage Timer function to rest for 30 minutes after each use. With the massage function in use, press the Timer button to select a 10, 20, or 30 minute massage. The light below will illuminate indicating which timer setting is activated. Massage Type Back Massage On/Intensity Foot Massage On/Intensity (3 intensity levels) (3 intensity levels) There are three massage options: wave, pulse or constant. Press the Type button to activate an alternate massage option. Massage Off/Recall Last Setting Massage Type Massage Off/Recall Last Setting Timer Setting & Massage Off 3 massage options: ...
Page 14
OWNER’S MANUAL ELECTRICAL COMPONENT SETUP Overview The electronic components are pre-installed and no assembly is necessary; Underbed Light Input Head Motor Input however, some setting and input locations are important for proper setup and functionality (see images A and B to become familiar with input, setting USB Input Foot Motor Input and part locations). Massage Head Tilt Motor Input...
Page 15
OWNER’S MANUAL ELECTRICAL COMPONENT SETUP USB Ports USB ports are located under the head portion of the bed base at two locations (see image A). To access the USB ports, press the Head Up button to raise the bed and reveal the USB ports. Once your device is plugged into the USB port, you may lower or adjust the bed to your preference.
Page 16
OWNER’S MANUAL BACKUP Overview BATTERY Important: The backup battery is only to be used in case of a power outage. Batteries are not to be used for normal operation of the bed. The backup battery will not support repeated movement for an extended period of time. Backup Battery Use Use two 9V batteries only (not included). If a power outage occurs, install the ...
Page 17
OWNER’S MANUAL SYNCHRONIZING OPTION 1: WIRELESS press the blue Pairing button on the power bases and remove the batteries cord for Base B. You should hear two beeps. from each remote. After five TWO BASES minutes, reconnect Base A and Base Pair Single Remote to Operate Step 4: B to the power source and return Two Bases Simultaneously (for Twin XL and the batteries to Remote A and Ensure Remote A moves both bases by Split sizes only) Remote B. Then repeat steps 1-6. pressing any button on the remote control. Step 1: Plug Base A and Base B into NOTE: To operate the beds Pair Second Remote to Operate your outlet. ...
OWNER’S MANUAL SYNCHRONIZING TWO BASES (for Twin XL and OPTION 2: WIRED Split sizes only) Step 1: Place two Twin XL or split size adjustable bases next to each other in desired location. Plug in Sync Cable (see image A) to the control box of each base into the “Sync Cable” input (see image B) on the control box. Step 2: With the connecting cable installed, use remote and test all functions of the bed base. (see pages 29-30). If remotes are not working, troubleshoot the problem by following the instructions on (pages 13-14). The two bases are now connected and ready for normal use.
OWNER’S MANUAL TEST ALL Zero Gravity Preset Flat FUNCTIONS Anti Snore Preset Head/Foot Up Head/Foot Down TV/Read Preset Lounge Preset Foot Up Memory 1 Foot Down Back Massage/Intensity Memory 2 Remote Lock Foot Massage/Intensity Head Up Timer Overview Massage Off/Last Head Down Head Tilt Up Massage Type To ensure proper setup, use remote and test all functions for 3 seconds. Head Tilt Down Underbed LED Lights Important: Always return the base to the flat position when switching between preset options.
Page 20
OWNER’S MANUAL NOTES: ADDITIONAL If one or more functions of the bed have stopped working or one or more of the remote HELP control buttons activate the wrong function: Check under the bed base to verify the wired connections are secure and there are no cords or bedding obstructing the movement of the base. If the remote control activates the wrong function, the motors are plugged into the wrong input on the control box. Switch the input location of the cords on the control box. The remote control lights no longer illuminate / the remote won’t operate the bed functions: Ensure remote lock has been deactivated (see pages 15 –...
Page 21
YEARS 2 – 5: dealing, custom, trade, or otherwise. Malouf® shall not be liable for any consequential damages or losses arising from the During the years 2 – 5 from the date of purchase, Malouf® will offer replacement parts for purchase, installation and/or use of this product.
