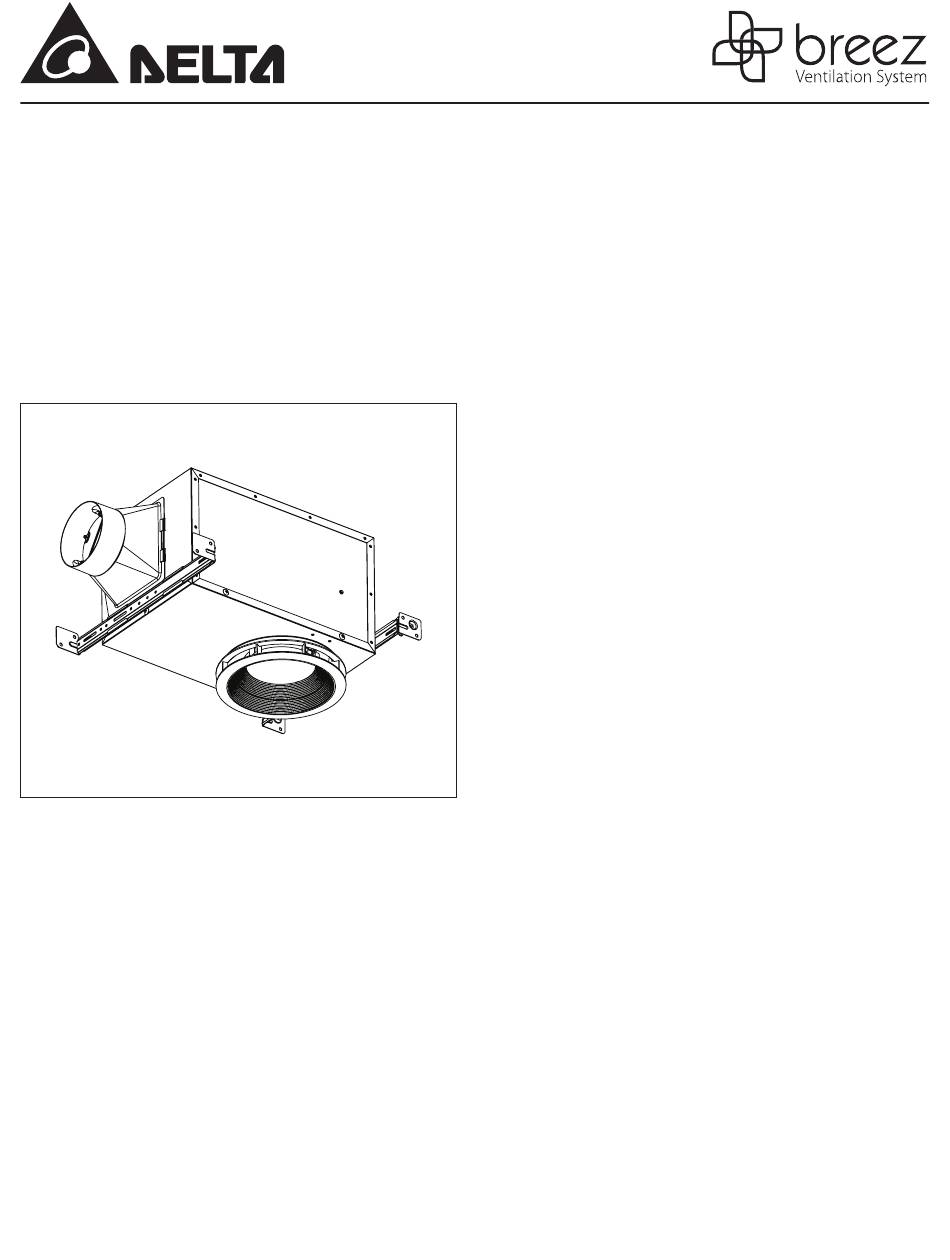

VENTILATION FAN / LED LIGHT
READ AND SAVE THESE INSTRUCTIONS
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number:
1-888-979-9889 - Technical Support
1-877-685-4384 - Customer Sales Support
www.deltabreez.com
MODELS 90LED-REC-ADJ / VFB090F4LED1-A
TABLE OF CONTENTS
2
3
4
5
6
9
10
10
11
11
12
MFG Model
VFB090F4LED1-A
Advertisement
Table of Contents
Related Manuals for Delta BREEZ 90LED-REC-ADJ
Summary of Contents for Delta BREEZ 90LED-REC-ADJ
-
Page 1: Table Of Contents
VENTILATION FAN / LED LIGHT MODELS 90LED-REC-ADJ / VFB090F4LED1-A TABLE OF CONTENTS Package Contents General Safety Information Preparation Wiring Diagrams Assembly Instructions Care and Maintenance Troubleshooting Product Specifications Dimensions Product Exploded Drawing Warranty READ AND SAVE THESE INSTRUCTIONS Address: 46101 Fremont Boulevard, Fremont, CA 94538 US Toll Free Number: 1-888-979-9889 –... -
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION Fan Body LED Module Suspension bracket Ⅰ 13”(318.5mm) Suspension bracket Ⅱ 13”(318.5mm) HARDWARE CONTENTS (Images are to scale) × 8 Long Wood Screw ( Ø 4 x 25mm) × 4 Short Screw (#8-32x1/4”) -
Page 3: General Safety Information
GENERAL SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS 7. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be GENERAL SAFETY INFORMATION connected to a GFCI (Ground Fault Circuit lnterrupter) – protected branch circuit. -
Page 4: Preparation
PREPARATION Tools Required for Assembly (not included): Hammer, Roof cap Flathead Screwdriver, Wire Nuts, Nails, Duct Tape, (with built-in damper) Phillips Head Screwdriver, Utility Knife Short piece of flexible Helpful Tools (not included): Electric Drill, Drill Bits duct helps alignment and absorbs sound WARNING: Turn off electricity at breaker box before beginning installation. -
Page 5: Wiring Diagrams
WIRING DIAGRAM Single Switch Control - With a single switch, all three features can be Single Switch Control - With a single switch, all three features can be Single Switch Control - With a single switch, the fan and light can be turned on and off simultaneously. turned on and off simultaneously. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS 1. For joist spacing 16 in. - 24in., insert suspension bracket I and suspension bracket II into the Suspension bracket cover on the duct connector side and the back Bracket I Fan Body of the fan body Hardware ×... - Page 7 ASSEMBLY INSTRUCTIONS 3. Install the suspension brackets to the joists with long wood screws, and secure the suspension brackets to the fan body by using the short Joist screws (provided). Joist Fan Body 4. Remove the fan junction box cover .
- Page 8 ASSEMBLY INSTRUCTIONS 7. Insert the LED light connector into the fan body. 2-Slots LED light connector 2-Springs LED module 8. Using a screwdriver to remove the screw on the back of grille, and insert the connector to choose Screw CONNECTOR the color temperature you want for your LED.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE See safety information before proceeding. Routine maintenance should be done at least once a year. • Never use solvents, thinner or harsh chemicals when cleaning the fan. • Do not allow water to enter the motor. • Do not immerse metal parts in water. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan is not turning on 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. The fan seems louder 1. -
Page 11: Dimensions
DIMENSIONS 6 1/2 7 1/2 (161.6)Dia. (12.0) (190.0) 12 3/4 (100.0) (324.9) Unit: Inches(mm) PRODUCT EXPLODED DRAWING PART DESCRIPTION Duct connector Suspension bracket Fan motor LED module Junction box Junction box cover Power unit... -
Page 12: Warranty
6. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below. 7. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse, misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation,...
