Delta breez VFB25ADH Instructions Manual

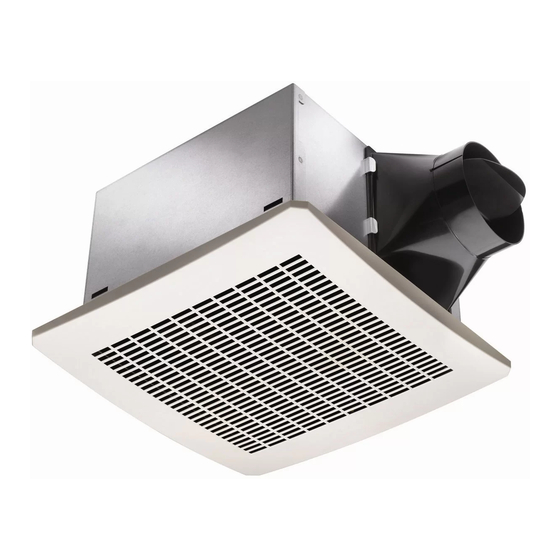

Humidity sensing bath fan
Hide thumbs Also See for breez VFB25ADH:
Table of Contents

Advertisement

Quick Links

READ AND SAVE THESE INSTRUCTIONS
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number: 1-888-979-9889
HUMIDITY SENSING
MODEL VFB25ACH / VFB25ADH / VFB25AEH

TABLE OF CONTENTS

BATH FAN
Scan here for product video
2
3
4
5
6
8
8
9
10
11
11
12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the breez VFB25ADH and is the answer not in the manual?

Questions and answers

Related Manuals for Delta breez VFB25ADH

Summary of Contents for Delta breez VFB25ADH

  • Page 1: Table Of Contents

    HUMIDITY SENSING BATH FAN MODEL VFB25ACH / VFB25ADH / VFB25AEH TABLE OF CONTENTS Package Contents General Safety Information Preparation and Wiring Diagrams Assembly Instructions - New Construction Assembly Instructions - Existing Construction Grille Installation Humidity Sensing Fan Operation Care and Maintenance Troubleshooting Dimensions Warranty...

  • Page 2: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION ❶ Fan Body ❷ Grille ❸ Suspension Bracket I ❹ Suspension Bracket II ❺ Suspension Bracket III ❻ Duct Connector HARDWARE CONTENTS (Images are to scale) Long Wood Screw ( ∅ 4 x 25) Short Machine Screw (M4 x 12) Model: VFB25ACH / VFB25ADH / VFB25AEH...

  • Page 3: General Safety Information

    GENERAL SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS 6. Ducted ventilating fans must always be vented to the outdoors. GENERAL SAFETY INFORMATION 7. If this unit is to be installed over a tub or shower, it must 1. Make sure that the electric service supply voltage is AC be marked as appropriate for the application and be 120V, 60Hz.

  • Page 4: Preparation And Wiring Diagrams

    PREPARATION Proper insulation around the fan to minimize building Tools Required for Assembly (not included): Hammer, heat loss and gain. 4” circular duct is recommended Flathead Screwdriver, Wire Nuts, Nails, Duct Tape, for installation. The ducting from this fan to the outside Phillips Head Screwdriver, Utility Knife of building has a strong effect on the air flow, noise Helpful Tools (not included): Electric Drill, Drill Bits...

  • Page 5: Assembly Instructions - New Construction

    ASSEMBLY INSTRUCTIONS NEW CONSTRUCTION – ATTACHING TO THE JOIST BEFORE INSTALLATION Turn off power source. Review all safety precautions. 1. If spacing between joists is 12 in. apart, use four long wood screws (provided) to attach the fan body ❶ to ceiling joists. Hardware Long wood screw 2.

  • Page 6: Assembly Instructions - Existing Construction

    ASSEMBLY INSTRUCTIONS 5. Remove the fan junction box cover . Using wire nuts (not supplied), connect house wires to fan wires as shown in the wiring diagram on page 4. Wire connections are as follows: black to live switch wire, white to neutral, green to ground. Reattach fan junction box cover 6.
  • Page 7 ASSEMBLY INSTRUCTIONS 3. If this fan is not replacing an old fan, be sure to cut a 10.25 in. x 10.25 in. opening for the fan body ❶ . 4. Place the duct connector ❻ through the ceiling cut out. Connect a 4 in. circular duct (not supplied) and vent to the outside.

  • Page 8: Grille Installation

    GRILLE INSTALLATION Attach grille ❷ by pinching mounting springs insert into the narrow rectangular slots in fan body ❶ . HUMIDITY SENSING FAN OPERATION 1. Humidity Sensing Mode: Flip wall switch to “ON” position. The LED indicator light in the fan will be BLUE.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE See safety information before proceeding. Routine maintenance should be done at least once a year. • Never use solvents, thinner or harsh chemicals when cleaning the fan. • Do not allow water to enter the motor. • Do not immerse metal parts in water. •...

  • Page 10: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The fan is not turning on 1. Power off 1. Make sure power supply is on. 2. Faulty switch 2. Test or replace switch. 3. Faulty wire connection 3. Check wire in switch box. The fan seems louder 1.

  • Page 11: Dimensions

    DIMENSIONS PRODUCT SPECIFICATIONS SPECIFICATIONS Model No. VFB25ACH VFB25ADH VFB25AEH Air Flow @ 0.1"SP 80CFM 110CFM 130CFM Noise @ 0.1"SP <0.3 Sones 1.0 Sone 2.0 Sones Voltage 110-220V 110-220V 110-220V Hertz 50-60Hz 50-60Hz 50-60Hz Power Consumption 16.4W Duct diameter 4 in. 4 in.

  • Page 12: Warranty

    6. To qualify for warranty service, you must notify Delta Electronics at the address or telephone number below. 7. Delta Electronics shall have no liability to the original owner-user with respect to any defect caused by abuse, misuse, neglect, improper transportation or storage, improper testing, improper installation, improper operation,...
