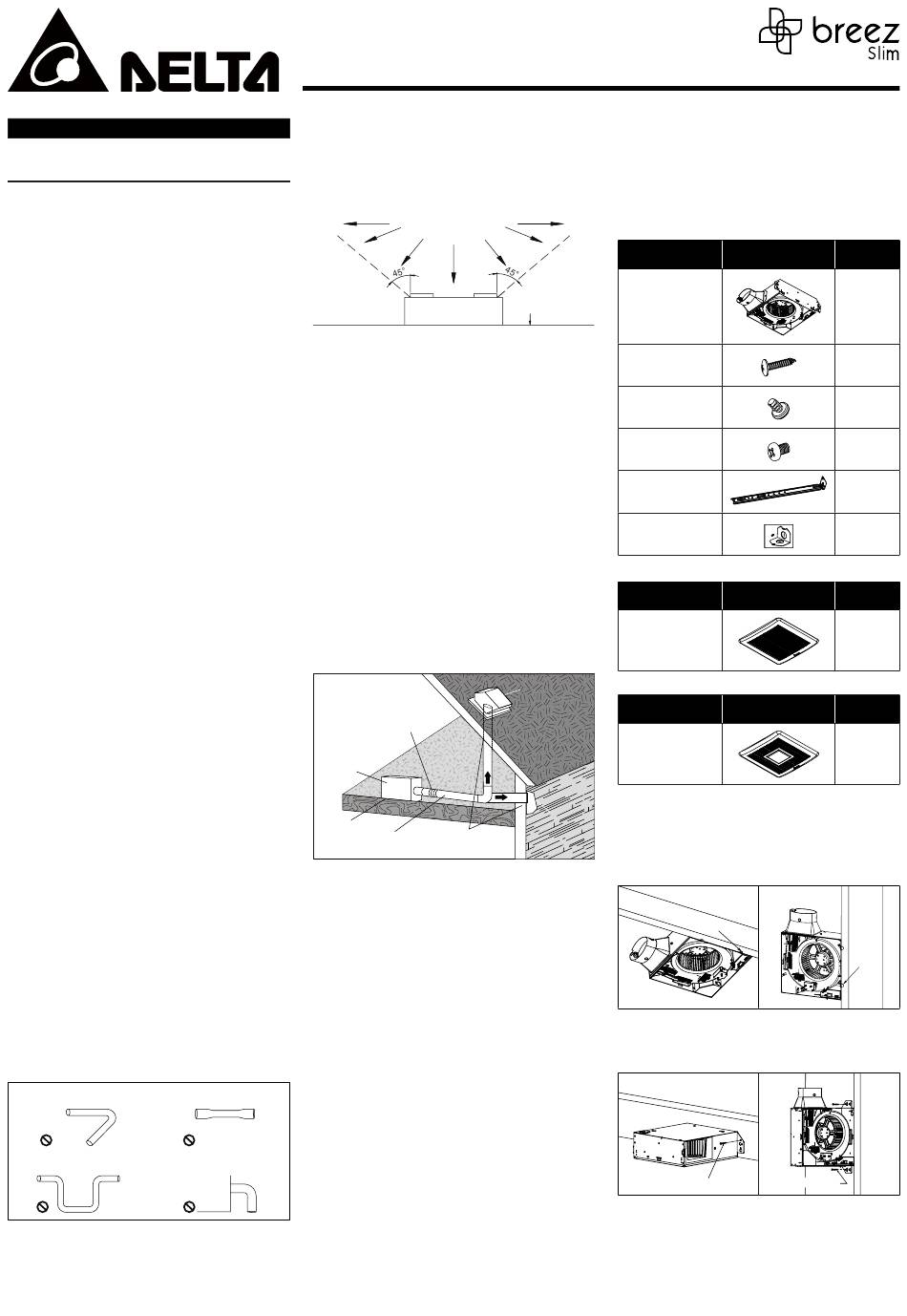

Installation and Operating Instructions
CEILING/WALL VENTILATION FAN
READ AND SAVE THESE INSTRUCTIONS
GENERAL SAFETY INFORMATION
1.
Make sure that the electric service supply voltage is
AC 120V, 60Hz.
2.
Follow all local electrical and safety codes, as well
as the National Electrical Code (NEC) and the
Occupational Safety and Health Act (OSH Act).
3.
Always disconnect the power source before working
on or near the ventilating fan, motor or junction box.
4.
Protect the power cord
from sharp edges, oil, grease,
hot surfaces, chemicals or other objects.
5.
Do not kink the power cord.
6.
Do not install the unit where ducts are configured as
shown in Fig. A.
7.
Provide suction parts with proper ventilation.
8.
This unit is UL Listed for use over a bathtub or shower
when installed in a GFCI protected branch circuit.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1.
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
2.
Before servicing or cleaning unit, switch power off at
the service panel and lock the service disconnecting
means to prevent the power from being switched
on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3.
nstallation work and electrical wiring must be
done by a qualified person(s) in accordance with all
applicable codes and standards, including fire-rated
construction.
4.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow
the heating equipment manufacturer's guideline
and safety standards such as those published by the
National Fire Protection Association (NFPA), and the
American Society of Heating, Refrigerating and Air
Conditioning Engineers (ASHRAE) and local code
authorities.
5.
When cutting or drilling into the wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6.
Ducted fans must always be vented to the outdoors.
7.
If this unit is to be installed over a tub or shower, it
must be marked as appropriate for the application
and be connected to a GFCI (Ground Fault Circuit
Interrupter) –protected branch circuit.
8.
Do not use this unit with any other solid-state control
device. Solid-state control device may cause harmonic
distortion, which can cause a motor humming noise.
(Avertissement: ne convient pas à des régulateurs de
vitesse à semi-conducteurs).
9.
NEVER place a switch where it can be reached from a
tub or shower.
10. Not to be installed in a ceiling thermally insulated
to a value greater than R50. (This is required for
installation in Canada only).
11. Do not open/disassemble LED light engine.
Turning angle too large
Too many elbows
Elbow near the body
Fig. A
CAUTION
1.
For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
2.
Not for use in cooking area. (Fig. B)
MODELS: SLM50-110-C, SLM80-110D-C, SLM50-110LED-C, SLM80-110DLED-C, SLM80-110H-C
3.
This product must properly connect to the grounding
conductor of the supply circuit.
4.
To reduce the risk of injury to persons, install the fan
at least 8.2 feet (2.5m) above the floor.
ASSEMBLY INSTRUCTION
WARNING: Turn off electricity at breaker box before
beginning installation.
1.
Carefully remove unit from carton.
2.
Check area above installation location to be sure that
wiring can run to the planned location and that duct
work can be run. Make sure the area is sufficient for
proper ventilation.
3.
Inspect duct work and wiring before proceeding with
installation.
4.
Before installation, provide inspection and future
maintenance access at a location that will not
interfere with installation work.
5.
You may need the help of a second person to install
this fan: one person on the attic side and one on the
room side.
Note: Installations may vary depending on how the
previous bath fan was installed. Supplies necessary for the
installation of your bath fan are not all included. However,
most are available at your local home improvement or
hardware store.
Short piece of flexible
duct helps alignment
and absorbs sound
Fan housing
Seal gap
around
housing
Proper insulation around the fan to minimize building heat
loss and gain. The ducting from this fan to the outside of
the building has a strong effect on the air flow, noise and
energy use of the fan. Use the shortest, straightest duct
routing possible for best performance, and avoid installing
the fan with smaller ducts than recommended. Insulation
around the ducts can reduce energy loss and inhibit mold
growth. Fans installed with existing ducts may not achieve
their rated air flow.
1.
The fan will operate most efficiently when located
where the shortest possible duct run and minimum
number of elbows will be needed.
2.
Use a roof cap or wall cap that has a built-in damper
to reduce backdrafts.
3.
External timer can be used in conjunction with
Duct shrink
single-speed mode only, please contact Delta
Breez customer service and consult with a licensed
electrician for compatibility.
4.
External dimmer can be used in conjunction with
LED light model, please contact Delta Breez customer
service and consult with a licensed electrician for
compatibility.
Body
For humidity sensing models only (SLM80-110H-C)
Locate unit above (GFCI-protected circuit required) or
within 5 feet of the shower head.
Locate unit away from heating or cooling sources
which can affect humidity levels.
Do not locate near window. Unit may respond to the
outdoor humidity level.
Cooking area
Do not install above or
inside this area
Cooking
floor
Equipment
Fig. B
Roof cap
(with built-in
damper)
or
Wall cap
Wall cap
(with built-in
(with built-in
2~3 ft
Caulk termination
damper)
damper)
straight run
to duct
before elbow
Unit must be installed in ceiling to properly sense
moisture.
Locate unit only on flat ceilings up to 12 feet high for
proper sensing.
PACKAGE CONTENTS
For all Models:
Part name
Appearance
Fan Body
Tapping Screw
(Ø4×25mm)
(Machine Screw
(#8-32x5/16")
Machine Screw
(M4x6 mm)
Hanger Bar
Wiring Cover
For the Model of SLM50-110-C, SLM80-110D-C,SLM80-110H-C
Part name
Appearance
Grille
For the Model of SLM50-110LED-C, SLM80-110DLED-C
Part name
Appearance
Grille
ASSEMBLY INSTRUCTION
Installation I
(Ceiling/Wall mount housing with flange)
1.
To bend the housing tabs out to 90 degree and make
housing tabs contact the bottom or front of the joist.
Joist
Tabs
2.
The housing mounts with 4 screws (Ø4×25 mm).
Screw housing to joist through the round holes in
each mounting flange, then through the other holes.
Joist
Screw Ø4x25 mm
Screw Ø4x25 mm
Installation II
(Using suspension bracket):
1.
The housing mounts with 4 screws (Ø4×25 mm)
Screw housing to joist through the round holes in
each mounting flange, then through the other holes.
2.
Insert suspension bracket into the channel on
housing.
Page 1.
Quantity
1
6
1
1
1
1
Quantity
1
Quantity
1
Joist
Tabs
Joist
