NETWORK CAMERA
User Manual

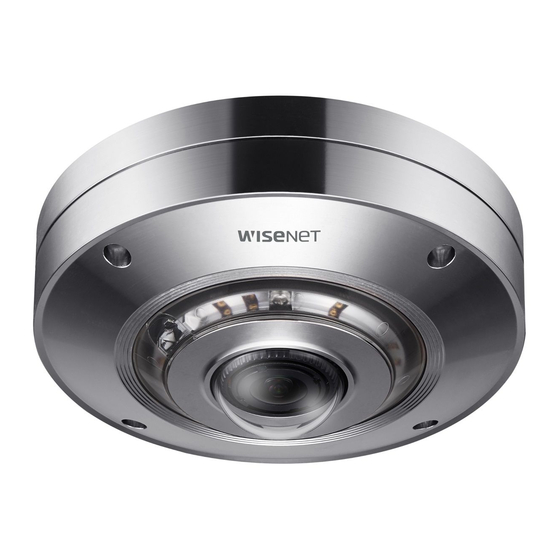

XNF-9010RS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNF-9010RS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet XNF-9010RS

Summary of Contents for Wisenet XNF-9010RS

  • Page 1 NETWORK CAMERA User Manual XNF-9010RS...
  • Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 overview IMPORTANT SAFETY INSTRUCTIONS 23. This device has been verified using STP cable. The use of appropriate GND grounding and STP cable is recommended to effectively protect your product and property from transient voltage, thunderstroke, communication interruption. 1. Read these instructions. 2.
  • Page 4 For below models only. The ITE is to be connected only to PoE networks without routing to the outside plant. XNF-9010RS The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE Risk Group 1 802.3.af shall be a UL Listed device with the output evaluated as a Limited Power Source...

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Optional Accessories for Installation At a Glance APPENDIX Troubleshooting INSTALLATION &...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    WHAT’S INCLUDED Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.) Appearance Item Name Quantity Description Appearance Item Name Quantity Description Cap Installer Used to connect the RJ45 network cable Camera Screw Cap Used as a hole cap for Torx screw on the top cover...

  • Page 8: Optional Accessories For Installation

    You can purchase appropriate optional accessories available. Appearance Model name Hanging Mount SBP-300WMS (Wall Mount) SBP-300WMS1 (Wall Mount) XNF-9010RS SBP-300HMS6 SBP-300PMS (Pole Mount) SBP-300KMS (Corner Mount) Item Description Plate that fixes the camera when mounting it to the ceiling or attaching it to a separately Mount plate sold mount.
  • Page 9 Inside Item Description Network Port Used to connect the PoE or Ethernet cable for network connection. IR LED These infrared LED’s are controlled by the illumination sensor. Fisheye lens This lens has 360˚ vision and it can record video panoramically. Illumination Sensor Detects incoming light to control the IR LED.

  • Page 10: Installation & Connection

    installation & connection INSTALLATION 2. Using the provided Torx L wrench, turn the 4 screws counterclockwise to release the top cover. Note that it is not necessary to loosen the screws completely. This camera is waterproof and in compliance with the IP66/IP67/IP6K9K spec, but the jack connected to the external cable is not.
  • Page 11 Inserting a Micro SD card Removing a Micro SD card Slide the Micro SD card into the Micro SD card slot on the camera module in the direction of the arrow. Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot.
  • Page 12 installation & connection Installing the camera on the ceiling or a wall 3. Pass the audio/alarm/power cable and the network cable through the holes of the Mount Plate. 1. Attach the installation template on the desired surface and drill holes for screws and cables. [Installing the network cable] 2.
  • Page 13 6. Mount the cable bushing to the camera body. 8. Join the mount plate with the camera body. TR20 9. Connect the network cable and alarm/power, audio jack to the camera module port. [Installing the Audio/Alarm/Power cables] 7. Mount the cable bushing of the provided audio/alarm/power cables to the camera body. English _13...
  • Page 14 installation & connection 10. Adjust the lens to the desired direction with reference to “Adjusting the monitoring direction for the Adjusting the monitoring direction for the camera camera” section. 11. Assemble the top cover. TR20 ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling.

  • Page 15: Connecting With Other Device

    CONNECTING WITH OTHER DEVICE Installation precautions when using the IR Manual mode ~ This mode is recommended when the luminance from each direction is different when monitoring under low luminance. ~ Since the position of the IR LED is fixed, if you rotate the camera lens, only the monitoring video of the camera will rotate but not the irradiation direction of the IR LED.
  • Page 16 1. Connect OTG adapter (5-pin) and WiFi dongle to the micro USB port. Wire Type (AWG) Smartphone Setup Cable Length (Max.) 1. Install the Wisenet Installation application. 2. Select the camera SSID after turning on the WiFi. Network Cable Specification 3. Run the Wisenet Installation application.
  • Page 17 Connecting to Audio Input/Output Connecting to the I/O port box Connect the Alarm I/O cable to the corresponding port of the port box. Speaker Microphone Network Alarm Sensor (Warning lamp) ~ ALARM #1, ALARM #2 : These ports can be used as alarm input or output ports. If used as input ports, alarm input or day/night sensors can be connect to them.
  • Page 18 installation & connection To connect the external sensor Connect one of the 2 signal lines to the [ALARM #1] port (if you want this to be the input port) and the remaining one to the [GND] port. Alarm In Wiring Diagram External Inside of the camera VCC_3.3V...

  • Page 19: Network Connection And Setup

    network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1.

  • Page 20: Using Device Manager

    network connection and setup USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).

  • Page 21: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. XNF-9010RS - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 22: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.

  • Page 23: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _23...

  • Page 24: Connecting To The Camera

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.

  • Page 25: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network.

  • Page 26: Troubleshooting

    appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION When an Windows 10 user accesses ~ If the transmission method is set to multicast, check whether there is a router that supports ~ This is what happens when microphone driver has been set to Realtek driver. No image appears.
  • Page 27 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
