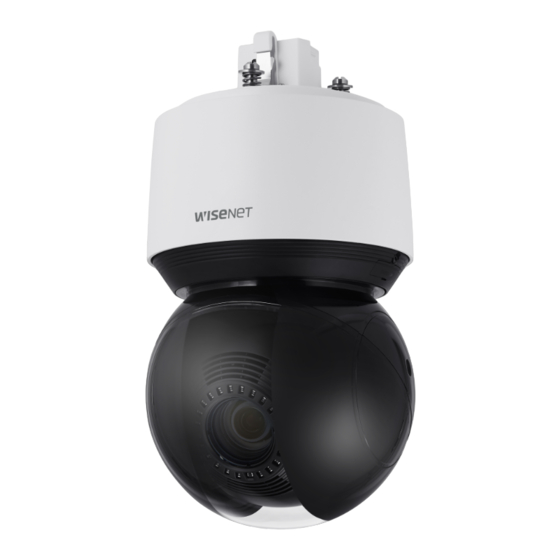

- Page 1 NETWORK CAMERA User Manual XNP-9250R/XNP-9250 XNP-8250R/XNP-8250 XNP-6400R/XNP-6400...
- Page 2 Network Camera User Manual Copyright ©2020 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from PoE(55 Vdc), 0.72 A.(XNP-9250R/XNP-8250R/XNP-6400R) EXPLANATION OF GRAPHICAL SYMBOLS 16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” and rated from PoE(53 Vdc), 0.48 A.(XNP-9250/XNP-8250/XNP-6400)
- Page 4 802.3bt shall be a UL Listed device with the output evaluated as a Limited Power Source as XNP-8250R defined in UL60950-1 or PS2 as defined in UL62368-1.(XNP-9250R/XNP-8250R/XNP-6400R) XNP-6400R The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3at shall be a UL Listed device with the output evaluated as a Limited Power Source as...
-
Page 5: Table Of Contents
CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs What’s Included Network I/O box - separately sold product Optional Accessories for Installation APPENDIX Troubleshooting At a Glance... -
Page 6: Recommended Pc Specifications
overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Supported OS : MS Windows 8.1, 10, Mac OS X 10.13 Recommended products : QNAP NAS, Synology NAS ~ Recommended browser: Google Chrome... -
Page 7: What's Included
OPTIONAL ACCESSORIES FOR INSTALLATION Quick Guide You can purchase appropriate optional accessories available. (Optional) Used to connect the Cap Installer network cable XNP-9250R/XNP-9250/ XNP-8250R/XNP-8250/ XNP-6400R/XNP-6400 Used as a means of preventing cable bushing Bushing clip from being separated or falling apart from the hole. - Page 8 AT A GLANCE Inside(XNP-9250R/XNP-8250R/XNP-6400R) Appearance Item Description Main cover Protects the internal PTZ mechanism from the direct sunlight, rain or external impact. Dome cover Shield cover for the lens and unit protection. Item Description Micro SD Card cover Covers micro SD card slots and the Reset button. You can open it using the Torx L wrench.
- Page 9 A port that connects to the HPoE injector and network cable for power and network Lens Lens for the camera. connection.(XNP-9250R/XNP-8250R/XNP-6400R) Network port A port that connects to the PoE+ router and network cable for power and network At a certain temperature below the threshold, it automatically operates, or you can turn it on Heater connection.(XNP-9250/XNP-8250/XNP-6400)
-
Page 10: Installation & Connection
installation & connection INSTALLATION 2. Push in a flathead screwdriver under the slot to pull out the Micro SD card slot. This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed. - Page 11 Removing a Micro SD card Gently press down on the exposed end of the Micro SD card as shown in the diagram to eject the Micro SD card from the slot. 4. After inserting the Micro SD cards, push the Micro SD card slot until it clicks into place. 5.
- Page 12 overview Getting ready for network cable installation 4. For waterproof protection, pull down the cable below the cable bushing as shown in the figure below. 1. Remove the cable bushing. 9~10 cm Installing using wall & pole mount Connect the power only after installation is complete. Supplying power while the installation is in progress may cause fire or damage the product.
- Page 13 2. Connect the network cable to the network port. 4. Install the bushing clip. Let the arrow mark on the clip point in the direction of the safety wire hook, and click each side into place one at a time. 3.
- Page 14 installation & connection 6. Tightly fasten the 3 mounting screws on the inside of the Wall & Pole Mount. Installing using ceiling or parapet mount 1. Hang the safety wire of the mount on the safety wire hook of the product. TR30 Safety wire Safety wire hook...
- Page 15 3. Plug the cable bushing of the network cable in the hole. 5. After aligning the installation direction guides of the hanging mount, push the main cover upward and turn When plugging it in, press the whole bushing area evenly so that it is properly plugged in. it counterclockwise until it is secured.
- Page 16 installation & connection ` Joined with official product mounts (ceiling/parapet) Ceiling Mount (SBP-300CMW) Hanging Mount (SBP-156HMW) Ceiling Mount Parapet Mount (SBP-156CMW) (SBP-156LMW) ` Joined with mounts other than official product mounts If you use hanging mount, you can install the camera onto any mount other than the official product mount. Parapet Mount (SBP-300LMW) Hanging Mount...
-
Page 17: Powering And Networking
If the product is turned on after being exposed to -20°C or below environment for some time, reset the time. The connection/disconnection of the SFP module must be made only when the power is off. Use the provided HPoE injector when connecting power and network. (XNP-9250R/XNP-8250R/XNP-6400R) A kink in the optical cable may disrupt the connection for communication. - Page 18 installation & connection Connecting audio and alarm I/O You can connect audio and alarm using a network I/O box separately sold. Microphone Network Speaker <SPM-4210> Sensor Alarm (Warning lamp) For more information on the network I/O box, see the manual for the network I/O box. You can set the network I/O box in Camera web viewer <Setup ( )>...
-
Page 19: Network Connection And Setup
network connection and setup CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE You can set up the network settings according to your network configurations. MODEM CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING Connecting to the camera from a local PC in the LAN INTERNET 1. -
Page 20: Using Device Manager
network connection and setup USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Guides>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com). -
Page 21: Manually Registering Camera
~ Example of the Dynamic IP environment configure the IP. XNP-9250R - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager. -
Page 22: Port Range Forward (Port Mapping) Setup
Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”. -
Page 23: Connecting To The Camera From A Shared Local Pc
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _23... -
Page 24: Connecting To The Camera
To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration. -
Page 25: Password Setting
PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network. -
Page 26: Troubleshooting
appendix appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION ~ On the authentication popup window prompted when initially accessing https, click "View ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is Authentication Certificate" and select the "Always trust when connecting to the designated set to <Enable>, but no notification A. - Page 27 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
