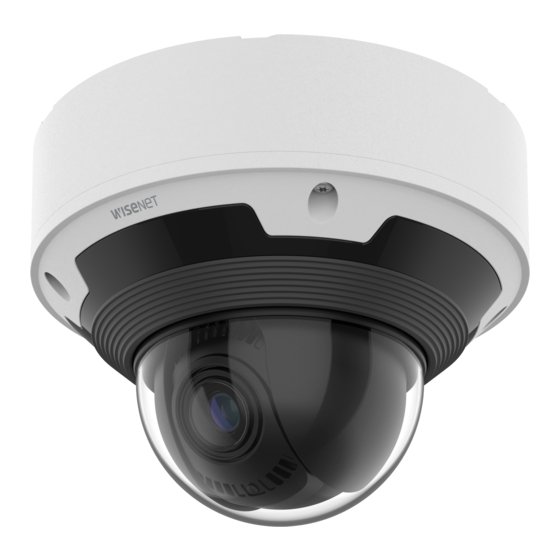

Network Camera
Online help
XNV-6083Z/XNV-8083Z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNV-6083Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet XNV-6083Z

Summary of Contents for Wisenet XNV-6083Z

  • Page 1 Network Camera Online help XNV-6083Z/XNV-8083Z...
  • Page 4 To use microphone Click the microphone icon(). If no sound is heard when connecting or disconnecting the audio jack from the PC while playing the audio, click the microphone icon() and enable it. The sound output from the camera may be inconsistent depending on the microphone device settings.
  • Page 5 To count the number of pixels Click the Pixel count icon(). Set the area by dragging the mouse on the image. The number of horizontal/vertical pixels of the area will be displayed on the screen. Profile The name and detailed information of the Video profile applied to the current live screen will be displayed.

  • Page 24: Digital Ptz

    Digital PTZ You can set the camera views to move after digital zoom is executed, rather than having the camera view change by physically moving the camera up and down (tilt) or left and right (pan). You can set a preset or change the camera views by setting a group of presets.
  • Page 25 Deleting a preset 1. Select the preset number you wish to delete from [Number]. 2. When you click the [Remove] button, the preset will be deleted. Group You can group a number of presets and access presets placed in a group sequentially. Setting a group 1.

  • Page 28: Audio Setup

    Audio setup You can connect a microphone and speaker to a network camera and listen to the sound at a remote location where the camera is installed, or output audio from the camera to the location. When you complete the setting, click the [Apply] button at the bottom of the page.

  • Page 29: Audio Out

    Bitrate The bitrate of the G.711 codec is 64 Kbps and cannot be changed. The bitrate of the G.726 codec is 16, 24, 32 and 40 Kbps; the compression ratio can be changed. Only 48 Kbps can be selected for the AAC codec. (Supported [Codec] options may differ depending on the camera specifications.) Gain Sets the amplification value of audio in.
  • Page 30 PTRZ setup Even if the camera does not have the PTZ function, you can still pan or tilt and rotate the angular field of view and zoom in and out the video with the PTRZ function. If the camera is installed on the ceiling, wall, or in the corner, you can adjust the camera location up and down and right and left to secure the optimal view using this function.
  • Page 31 Zoom & focus To reset the focus, click the [Initialize focus] button. The focus is adjusted to the default position. Selecting the number options near the icon  keeps the camera zoom out (wide). Selecting the number options the icon  keeps the camera zoom in (tele). Bring the focus nearer by selecting the negative numbers near the icon .

  • Page 58: Certificate Management

    The user can also create a certificate file by filling out the certificate details. Our [Wisenet device certificate] is provided by default, and cannot be deleted.  Clicking the button shows the certificate information. Adding a client certificate 1.
  • Page 59 CA certificate may be installed or deleted. CA certificate is a certificate issued by the Certificate Authority (CA). Our [Wisenet root CA certificate] is provided by default, and cannot be deleted.  Clicking the button shows the certificate information. Adding a CA certificate 1.
  • Page 60 I/O box An external I/O device can be connected to the camera for use. In [I/O box] page, the information of I/O box to be connected to the camera can be entered, and the connection status of the I/O box and camera can be checked. Once the setup is complete, click the [Apply] button at the bottom of the page.
  • Page 70 Alarm I/O The I/O port of a camera can be set either as an input or output port as desired. After selecting it to be either an input or output port, you can set the details of each Alarm I/O. When you complete the setting, click the [Apply] button at the bottom of the page.

  • Page 71: Alarm Output

    E-mail To send an image by e-mail when an alarm input event is created, select [Enable]. Detailed settings for e-mail can be done from [Event]> [FTP/E-mail]. Record To save an image on an SD card or NAS when an alarm input event is created, select [Enable].
  • Page 72 Type Selects the alarm output type. N.O. (Normal Open): The alarm output sensor is open by default and when it is closed, an alarm is outputted. N.C. (Normal Close): The alarm output sensor is closed by default and when it is open, an alarm is outputted.
  • Page 75 App event An event can be created according to the rules defined in the application installed from [Open platform]. When you complete the setting, click the [Apply] button at the bottom of the page. The setting on the app event applies to [App event] in [Event]>[Event setup] pages equally. App event To use the app event, select [Enable].
  • Page 84 Fog detection You can correct the image by creating a fog detection event and executing defog in foggy conditions when it is difficult to distinguish the image. When you complete the setting, click the [Apply] button at the bottom of the page. The setting for fog detection events applies to [Fog detection] on [Event]>[Event setup] pages equally.

  • Page 85: Alarm Output

    E-mail To send an image by e-mail when a fog detection event is created, select [Enable]. Detailed settings for e-mail can be done from [Event]> [FTP/E-mail]. Record To save an image on an SD card or NAS when a fog detection event is created, select [Enable].

  • Page 86: Object Detection

    Object detection An object detection event can be triggered when the camera detects an object set by the user. The camera can detect four types of objects: Person, Vehicle, Face, and License plate. Click the [Apply] button when the setup is complete. The settings for object detection applies the same to [Object detection] under [Event]>[Event setup].
  • Page 87 To draw a polygon, select one of the lines of an existing quadrilateral and click the + sign to add a new vertex. Up to 4 vertices can be added to an existing quadrilateral. To move an exclude area, use the mouse to select and drag it. Deleting an exclude area To delete an exclude area, right-click on an exclude area to be deleted and click the [OK] button in the Confirm delete window.
  • Page 88 DetectionShot Select an option for applying DetectionShot. DetectionShot creates an entire image when an object (persons, faces, vehicles, and license plates) is detected at its most reliable time. Press the [Ctrl + Alt + S] keys to check the DetectionShot images on the live page of the camera web viewer.

  • Page 95: Audio Detection

    Audio detection An audio detection event can be created when audio above a set level is detected while the camera is capturing an image. When you complete the setting, click the [Apply] button at the bottom of the page. The setting on the audio detection event applies to [Audio detection] on the [Event]> and [Event setup] page equally. Select channel After selecting a camera channel, you can specify the details of audio detection for each channel.
  • Page 96 Record To save an image on an SD card or NAS when an audio detection event is created, select [Enable]. Detailed settings for storage can be done from [Event]> [Storage]. Alarm output It is possible to set an alarm output number for a specific alarm when an audio detection event is created.
  • Page 97 Sound classification The type of sound detected while the camera is capturing an image can be classified and created as a sound classification event. When you complete the setting, click the [Apply] button at the bottom of the page. The setting on the sound classification event applies to [Sound classification] on the [Event]>[Event setup] pages equally.
  • Page 98 It is recommended to set a number between 4 and 6 for [Gain] in [Video & Audio]>[Audio setup]>[Audio in]. If [External microphone] is set for [Source] in [Video & Audio]>[Audio setup]>[Audio in], the recommended specifications of the microphone are as follows. (If the microphone is out of spec, then the sound classification function might not work well.) Frequency range: 40 ~ 16,000Hz Impedance: 1,500 Ω...
  • Page 99 Depending on the alarm output setup, [Alarm output] options may look different. If there is no alarm output, [Alarm output] options are not displayed. If there is more than one alarm output, they are displayed as [Alarm output 1], [Alarm output 2], and so on. Select [Event]>[Alarm I/O] to set the alarm I/O.
  • Page 108 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel: +82.70.7147.8753 Fax: +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom Tel +44.1932.57.8100 Fax +44.1932.57.8101 www.hanwha-security.eu...
