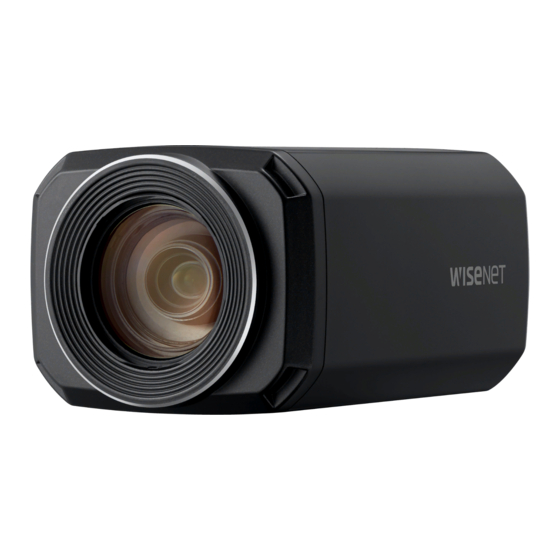

NETWORK CAMERA
User Manual
XNZ-6320A
XNZ-L6320A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNZ-6320A and is the answer not in the manual?

Questions and answers

Related Manuals for Wisenet XNZ-6320A

Summary of Contents for Wisenet XNZ-6320A

  • Page 1 NETWORK CAMERA User Manual XNZ-6320A XNZ-L6320A...
  • Page 2 Network Camera User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 15. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2” EXPLANATION OF GRAPHICAL SYMBOLS and rated from 12 Vdc, 0.6A / PoE(48 Vdc), 0.16A. (XNZ-6320A) 16. This product is intended to be supplied by a Listed Power Supply Unit marked “Class 2” or “LPS” or “PS2”...
  • Page 4 overview Class construction Please read the following recommended safety precautions carefully. An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a ~ Do not place this apparatus on an uneven surface. protective earthing connection. ~ Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.

  • Page 5: Table Of Contents

    CONTENTS OVERVIEW Important Safety Instructions WEB VIEWER Connecting to the Camera Recommended PC Specifications Password setting Recommended Micro SD/SDHC/SDXC Login Memory Card Specifications Camera Web Viewer Setup NAS recommended specs Video output What’s Included At a Glance APPENDIX Troubleshooting INSTALLATION & CONNECTION Inserting/Removing a Micro SD Memory Card Connecting with other Device...

  • Page 6: Recommended Pc Specifications

    overview RECOMMENDED PC SPECIFICATIONS NAS RECOMMENDED SPECS ~ CPU : Intel(R) Core(TM) i7 3.4 GHz or higher ~ Recommended capacity : 200GB or higher is recommended. ~ RAM : 8G or higher ~ For this camera, you are recommended to use a NAS with the following manufacturer’s specs. ~ Recommended browser: Chrome Recommended products : QNAP NAS, Synology NAS ~ Supported browsers: Chrome, Safari, Firefox, MS Edge(chromium based)

  • Page 7: What's Included

    L: 4.5mm±0.2mm (ISO Standard), or 0.197” (ASA Standard) SFP modules and fiber optic converters are separately sold. Please select and purchase an SFP of 100 Base-FX and a fiber optic converter. (XNZ-6320A) Mounting Bracket is not included. For more information to use mounting bracket, refer to the product’s documentation.
  • Page 8 IP address, Subnet mask, Gateway, etc., before you can connect to the network. <XNZ-6320A> RS-485/RS-422 port only supports direct connection with pan/tilt driver and external connections of the RS-485/RS-422 controller is not supported.
  • Page 9 1 : ALARM IN 6 : ALARM COM2 NETWORK 2 : GND 7 : RS-485+ 3 : ALARM OUT 1 8 : RS-485- 4 : ALARM COM1 9 : RS-422+ 5 : ALARM OUT 2 10: RS-422- DC12V 1 2 3 4 5 6 7 8 9 10 Item Description The button restores all camera settings to the factory default.

  • Page 10: Installation & Connection

    6 : A L 3 : A L A R M A R M 7 : R S C O M <XNZ-6320A> US B 4 : A L O U T 1 -4 8 5 + A R M 8 : R S...

  • Page 11: Connecting With Other Device

    CONNECTING WITH OTHER DEVICE Connecting the SFP module (XNZ-6320A) 1. Insert the SFP module. WiFi dongle LINK RESET SOFT AP VIDEO AUDIO AUDIO 1 : ALARM IN 6 : ALARM COM2 NETWORK 2 : GND 7 : RS-485+ 3 : ALARM OUT 1...
  • Page 12 & connection Ethernet Connection (XNZ-6320A) Ethernet Connection (XNZ-L6320A) Connect to your local network or internet by connecting your ethernet cable or SFP Optic Link. Connect the Ethernet cable to the local network or to the Internet. The ethernet link on this product supports redundant link between RJ-45 and SFP, and SFP takes priority.
  • Page 13 If the power sources for PoE and DC 12V are simultaneously turned on, the device power will use the external power source (DC 12V). (XNZ-6320A) 1. Install the Wisenet Installation application. If the power sources for PoE and DC 12 V are simultaneously turned on, the device power will be supplied by both of PoE and 2.
  • Page 14 & connection Optical communication ethernet standard (XNZ-6320A) Connecting to Audio Input/Output Item Contents Ethernet : Optical communication SFP (LC Type) Speaker Optical communication : Ethernet physical tier 100 Base-FX Optical communication : Default speed 100Mbps Microphone Optical communication : Ethernet standard IEEE 802.3u...
  • Page 15 ~ RS-485+ : Communication port for RS-485 receiver (+). ~ RS-485- : Communication port for RS-485 receiver (–). ~ RS-422+ : Communication port for RS-422 receiver (+). (XNZ-6320A) ~ RS-422- : Communication port for RS-422 receiver (–). (XNZ-6320A) English _15...
  • Page 16 & connection Connecting an external RS-485/422 device (XNZ-6320A) To connect the external sensor Connect the camera with an external device using the [RS-485/422 +, -] ports. Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the You can control the pan/tilt operations of the camera via RS-485/422 communications.

  • Page 17: Network Connection And Setup

    1. Launch an Internet browser on the local PC. INTERNET 2. Enter the IP address of the camera in the address bar of the browser. Fiber optic converter DSL/Cable Modem XNZ-6320A External Remote PC XNZ-L6320A DDNS Server (Data Center, KOREA)

  • Page 18: Using Device Manager

    network connection and setup USING DEVICE MANAGER If using a Broadband Router ~ IP Address : Enter an address falling in the IP range provided by the Broadband Router. Device manager program can be downloaded from <Technical Support>-<Online Tool> menu at Hanwha Techwin website ex) 192.168.1.2~254, 192.168.0.2~254, (http://www.hanwha-security.com).

  • Page 19: Manually Registering Camera

    ~ Example of the Dynamic IP environment configure the IP. XNZ-6320A - If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server 2. Click < + > at the main page of device manager.

  • Page 20: Port Range Forward (Port Mapping) Setup

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. For more information, refer to the user manual of the applicable router. After connecting the network camera, select the checkbox from the menu <Quick connect> in <Wisenet DDNS> in “Settings -> Network -> DDNS”.

  • Page 21: Connecting To The Camera From A Shared Local Pc

    2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://ddns.hanwha-security.com) and register the product at [My DDNS]>[Register Product]. English _21...

  • Page 22: Connecting To The Camera

    To register your device to the <DDNS> server, visit http://ddns.hanwha-security.com and register your device 1. Launch the Internet browser. first, and then set the Web Viewer’s <Network> - <DDNS> to <Wisenet DDNS>, as well as providing <Product ID> that had been used for DDNS registration.

  • Page 23: Password Setting

    PASSWORD SETTING CAMERA WEB VIEWER SETUP When you access the product for the first time, you must register the 1. Click the [Setup ( )] icon. login password. 2. The Settings window appears. 3. You can configure settings for the camera’s basic information, video, audio, network, event, analysis, and For a new password with 8 to 9 digits, you must use at least 3 of system over the network.

  • Page 24: Troubleshooting

    appendix appendix TROUBLESHOOTING PROBLEM SOLUTION PROBLEM SOLUTION When an Windows 10 user accesses ~ Verify the settings in the following sequence: <Motion detection> of <Analytics> is ~ This is what happens when microphone driver has been set to Realtek driver. the web viewer through Chrome set to <Enable>, but no notification A.
  • Page 25 Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
