MikroTik hAP ax3 Series Quick Manual

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.2.2 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.

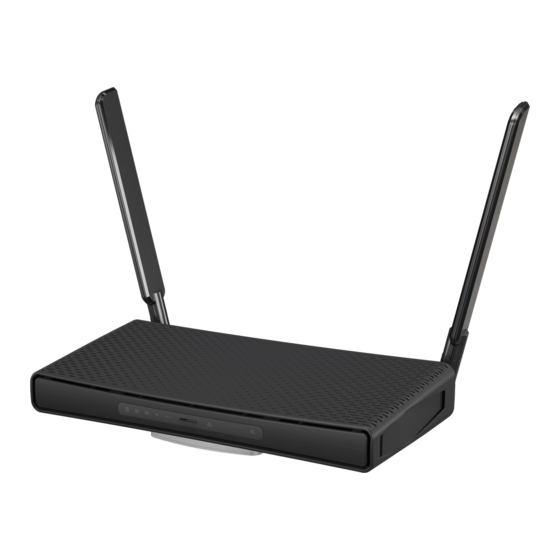

This "hAP ax³" series Quick Guide covers models: C53UiG+5HPaxD2HPaxD (hAP ax³).
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on
The most relevant technical specifications for this product can be found on the last page of this Quick Guide.
Technical specifications, brochures, and more info about products at
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
First steps:
1. Please attach provided antennas to the device, before connecting to the power source;
2. Make sure your Internet service provider is allowing hardware change and will issue an automatic IP address;
3. Connect the service provider cable to the Internet port and connect the device to the power source;
4. Open network connections on your computer and search for MikroTik wireless network - connect to it;
5. The configuration can be done through the wireless network using a web browser or mobile app. Alternatively, you can use a WinBox configuration tool
ps://mt.lv/winbox ;
6. Open https://192.168.88.1
user and wireless passwords on the
7. Click the (Check for updates) button and update your RouterOS software to the latest version;
8. Choose your country, to apply country regulation settings;
9. Set up your wireless network password;
10. Set up your router password;
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity, or hot environments.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 37 centimeters from your body, occupational user, or the general
public.
Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v7.2.2 или най-новата стабилна версия, за да се гарантира спазването на местните
наредби!
Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна
мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат
инсталирани съгласно инструкциите.
Това серия "hAP ax³" Бързо ръководство обхваща модели: C53UiG+5HPaxD2HPaxD (hAP ax³).
Това е мрежово устройство. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство.
Технически спецификации, брошури и повече информация за продуктите
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант
Първи стъпки:
https://mt.lv/um for the full up-to-date user manual. Or scan the QR code with your mobile phone.
consultant https://mikrotik.com/consultants
in your web browser to start configuration, user name: a
sticker);
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
https://mikrotik.com/products
at https://mt.lv/help
dmin
and there is no password by default
https://mt.lv/um-bg за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
https://mikrotik.com/consultants
(or, for some models, check
https://mt.lv/help-bg
htt
