Embedded Terminals with Profibus DP
Master

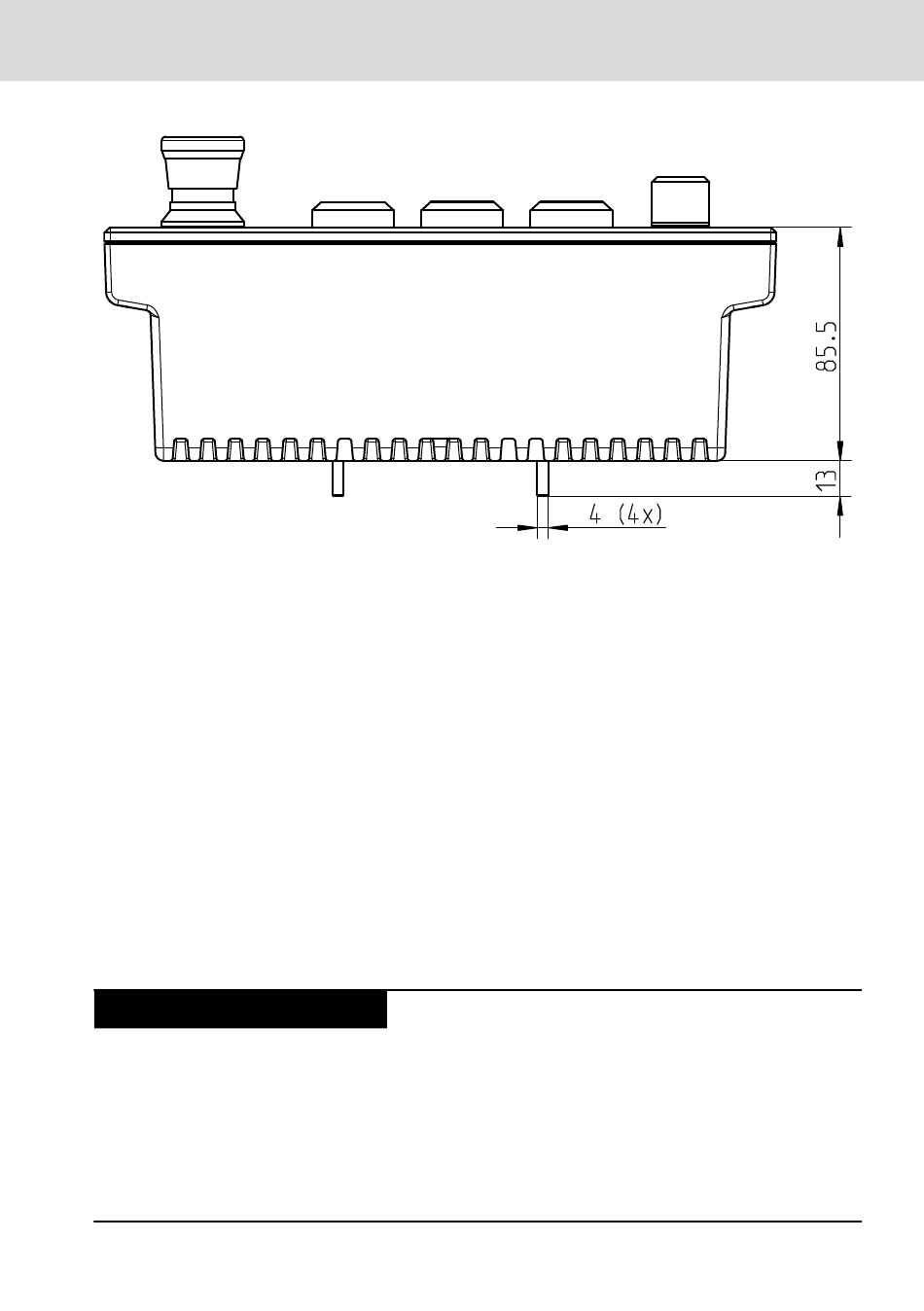

Fig. 10-3: Top view VEP 30.5DPU
10.2 Mounting Embedded Terminals – Installation notes
Avoid mounting locations exposed to direct UV or sunlight, as the screen
●
readability is reduced and additional heat development can occur
When mounting the Embedded Terminal, ensure an easy access to the con-
●
nector panel (top side)
Provide a minimum space of 50 mm (on all sides of the device) for sufficient
●
cooling and cable routing
Use strain reliefs for all cables
●
Keep the maximum distance possible from interference sources
●
10.3 Mounting the Embedded Terminals VEP 30.5EFU
10.3.1 Mounting cut-out
NOTICE
Mount the devices without mechanical stress
●
Provide a sufficiently sized front cut-out
●
Provide an even mounting surface
●
Ensure that no objects are squeezed
●
DOK-CONTRL -VEP*XX.5***-IT01-EN-P
Mounting, demounting and electric installation
Damage to the front panel or to the touch
screen and the IP degree of protection is not
maintained due to incorrect installation.
Bosch Rexroth AG
19/41
