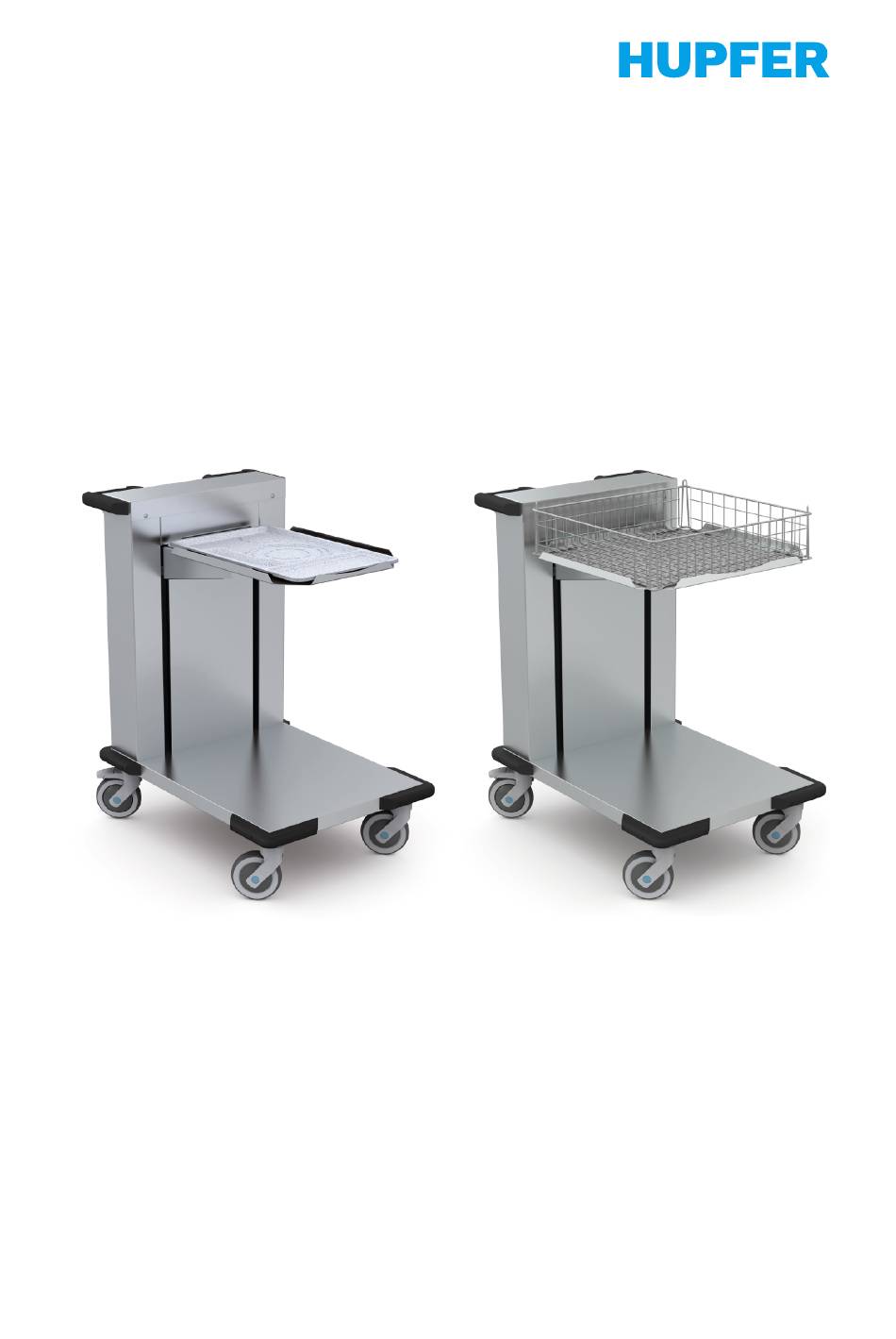

- Page 1 Operating instructions Open tray dispensers/open sided basket dispensers OTA/OKO Read the instructions prior to performing any task!
- Page 2 Internet: www.hupfer.com Document information Last update: 30.03.2022 Index: 1, en_GB All texts, illustrations and graphic designs are protected by copyright. Reproduction, distribution and issuing are permitted for internal company purposes only. © Hupfer Metallwerke GmbH & Co. KG, Coesfeld 2022...
-
Page 3: Table Of Contents
Operating instructions Open tray dispensers/open sided basket dispensers Table of contents General information............... Product information............Target group..............Symbols................Product description............... Function................Overview................. Equipment features............Equipment options............Technical data..............Rating plate..............Safety information..............10 Intended use..............10 Improper use..............10 Safety instructions............11 3.3.1 General information.......... - Page 4 Operating instructions Open tray dispensers/open sided basket dispensers Care and cleaning..............19 Cleaning intervals............19 Permissible cleaning types..........20 Permissible cleaning agents........... 21 Material compatibility............22 Manual cleaning.............. 22 Disinfecting..............22 Maintenance and repair............23 Maintenance intervals............. 23 Troubleshooting.............. 23 Repairs and spare parts..........
-
Page 5: General Information
Open tray dispensers/open sided basket dispensers General information Product information ■ Product names OTA – open tray dispenser ■ OKO – open sided basket dispenser Target group These operating instructions are intended for the following groups of people who perform the listed activities with or on the product: Maintenance engineer ■... -
Page 6: Product Description
Operating instructions Open tray dispensers/open sided basket dispensers NOTICE “Notice” indicates a situation that may result in damage to property. “Notes” give tips on the correct use of the product. Product description Function Open tray dispensers and open sided basket dispensers transport and dispense items at a constant height. -
Page 7: Overview
Operating instructions Open tray dispensers/open sided basket dispensers Overview OTA variant – open tray dispenser Fig. 1: OTA – open tray dispenser Platform for trays Corner bumper Swivel castor with lock Rear panel of the spring case Rating plate Push handle with impact protection OKO variant –... -
Page 8: Equipment Features
Operating instructions Open tray dispensers/open sided basket dispensers Equipment features General information Sturdy, self-supporting design in stainless steel. Chassis Standard version with 2 swivel castors and 2 swivel castors with locks. The swivel castors allow free manoeuvra- bility in all directions. Wheels and swivel cas- With polymer housing, ball bearing tors... -
Page 9: Technical Data
Operating instructions Open tray dispensers/open sided basket dispensers Technical data Product name Open tray dispenser Open sided basket dispenser Total weight Max. load Dimensions 798 x 558 x 900 798 x 558 x 900 W × D × H Lifting height Approved items Trays Baskets... -
Page 10: Safety Information
Operating instructions Open tray dispensers/open sided basket dispensers Safety information Intended use The open tray dispenser/open sided basket dispenser is intended for the manual transport and provision of trays/baskets. Only approved items may be transported with the stacking equipment. The items that are suitable are determined by the size of the platform mounted for baskets or trays. -
Page 11: Safety Instructions
Operating instructions Open tray dispensers/open sided basket dispensers Safety instructions 3.3.1 General information The stacking equipment may only be used in a technically sound con- dition, while taking risks and safety into consideration, for its intended purpose and in accordance with the operating instructions. All operating elements and controls must be in a technically sound condition and functioning reliably. -
Page 12: Cleaning
Operating instructions Open tray dispensers/open sided basket dispensers Only secure stacking equipment with the locks when stationary. The locks do not provide a braking function. 3.3.5 Cleaning The transport cart must not be cleaned with high-pressure or steam cleaners. 3.3.6 Maintenance Troubleshooting may only be carried out by maintenance technicians. -
Page 13: In-House Transport
Operating instructions Open tray dispensers/open sided basket dispensers In-house transport WARNING Risk of crushing Persons may be crushed by stacking equipment rolling away out of control. − Never allow the stacking equipment to roll away unattended. − Only transport the stacking equipment up or down an incline if you can control it. -
Page 14: Commissioning
Operating instructions Open tray dispensers/open sided basket dispensers Tool Size Quantity Fig. 4: Assembly of the platform for baskets or trays Select the required components. Support the holders prior to assembly. Place the platform for baskets or trays on the base unit for stacking equipment as shown in the figure. - Page 15 Correctly adjusted Distance too large: Unhook the tension Hook on the tension springs springs Check the tension spring setting on the OTA Place 20 trays on the platform for trays. �� The platform for trays will sink. 15 / 24...
- Page 16 Operating instructions Open tray dispensers/open sided basket dispensers Measure the distance between the top edge of the tray and the top edge of the spring case. Distance < 30 mm 30 to 50 mm > 50 mm Adjustment Distance too small: Correctly adjusted Distance too large: Unhook the tension...
-
Page 17: Operation
Operating instructions Open tray dispensers/open sided basket dispensers Check the adjustment of the tension springs. Remove the items from the guide basket. Repeat the steps until the tension springs are correctly adjusted. �� The tension springs are correctly adjusted. Close the rear panel of the spring case. Screw the screws back in. -
Page 18: Moving The Cart
Operating instructions Open tray dispensers/open sided basket dispensers Moving the cart WARNING Risk of crushing Persons may be crushed by stacking equipment rolling away out of control. − Never allow the stacking equipment to roll away unattended. − Only transport the stacking equipment up or down an incline if you can control it. -
Page 19: Loading With Items
Operating instructions Open tray dispensers/open sided basket dispensers Loading with items CAUTION Risk of injury If stacking equipment is overloaded, objects may fall or be ejected upwards and injure persons. − Do not load the platform for baskets or trays any higher than the upper edge of the spring case. -
Page 20: Permissible Cleaning Types
Operating instructions Open tray dispensers/open sided basket dispensers Permissible cleaning types Cleaning type Definition of the cleaning opera- Approval for tion open tray dispensers/open sided basket dispensers Manual cleaning Dry Cleaning with dry cleaning agents Damp Cleaning with a damp cloth and degreasing liquid cleaner Cleaning with a wet sponge and degreasing liquid cleaner... -
Page 21: Permissible Cleaning Agents
Operating instructions Open tray dispensers/open sided basket dispensers Permissible cleaning agents NOTICE Incorrect cleaning agents Incorrect treatment of the installed material surfaces will result in damage and corrosion. − Only use cleaning agents approved for cleaning. − Follow the instructions of the cleaning agent manufacturer. Suitable cleaning agents The manufacturer cannot assess the suitability of specific detergents or disinfectants. -
Page 22: Material Compatibility
Operating instructions Open tray dispensers/open sided basket dispensers Cleaning agent Approval Alkaline cleaning agents pH 8 ‒ 14 ■ Alkalis Abrasive cleaning agents ■ Scouring pad ■ Pot scrubber Non-abrasive cleaning agents ■ Uncoated sponges ■ Soft cloths Material compatibility When selecting the cleaning agent, make sure it is compatible with the materials used. -
Page 23: Maintenance And Repair
Operating instructions Open tray dispensers/open sided basket dispensers Maintenance and repair CAUTION Risk of injury The pretensioned platform for baskets or trays can push up objects very quickly and injure persons. − Only load the platform for baskets or trays with the approved items –... -
Page 24: Repairs And Spare Parts
Operating instructions Open tray dispensers/open sided basket dispensers Fault description Cause Remedy Personnel Running noises made by Wheel bearings damaged Replace worn wheels Maintenance engi- wheels neer Platform for baskets or One or more tension springs Replace broken tension Operating staff trays does not raise up are broken springs...
