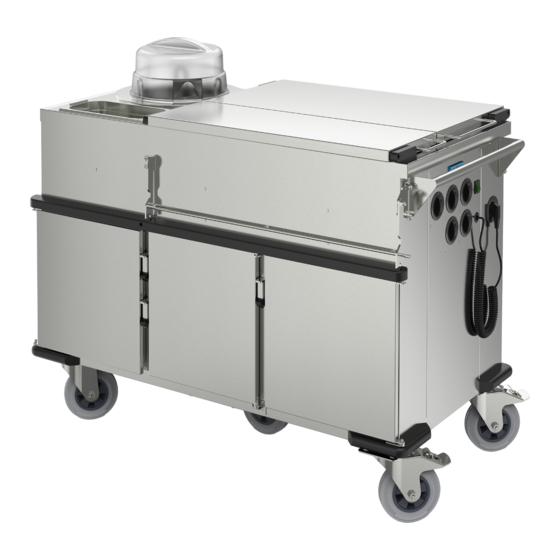

- Page 1 Operating Instructions Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0...
-
Page 2: Appliance Information
Introduction Appliance Information Appliance designation Food transport trolley Appliance type/s SPTW-2/EBF/TEHCO Year of manufacture 2013 Manufacturer HUPFER® Metallwerke GmbH & Co. KG Dieselstrasse 20 48653 Coesfeld P.O. Box 1463 D-48634 Coesfeld +49 2541 805-0 +49 2541 805-111 www.hupfer.de info@hupfer.de Food transport trolley... -
Page 3: Table Of Contents
Arrangement and Function of the Operating Elements Adjusting the plate dispensing tube 5.2.1 Crockery guide adjustment 5.2.2 Spring adjustment 5.2.3 Calculating the capacity of the plate dispensing tubes Operation 5.3.1 Filling bain-marie wells 5.3.2 Tempering Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... - Page 4 Notes on Troubleshooting Fault and Action Table Cleaning and Care Safety Measures Hygiene Measures Cleaning and Care Special Care Instructions Spare Parts and Accessories Introduction Spare Parts and Accessories List Annex EC Declaration of Conformity Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0...
-
Page 5: List Of Abbreviations
Protection against rough sea or strong protection against ingress of dust water jets (flood protection) Protection against ingress of water during temporary immersion Protection against pressurised water during continuous immersion Light Emitting Diode Light diode Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 6: Definitions Of Terms
The side named "the right" means the side at the right hand side of the front side (the front). The left The side named "the left" means the side at the left hand side of the front side (the front). Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 7: Notes On Use Of Manual
Brief description of additional information Attention is pointed to special conditions or additional important information on the respective subject. INFO Short title Contains additional information on work assisting features or recommenda- tions on the respective subject. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 8: Safety Instructions
In both cases, the symbol provides information on the type and circumstances of danger. The following symbols can be used: General hazardous area Hazardous electrical voltage Risk of hand injuries Risk of crushing Risk of hot surfaces Wear hand protection Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 9: Safety Instructions For Appliance Safety
Danger to life. § Damaged mains plugs or the connecting lead are to be replaced by authorised specialists before the appliance is used. § Do not use any extension leads in wet and damp areas. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 10: Safety Instructions For Transport
Do not clean the appliance with steam-jet or high-pressure washers. The appliance must be taken out of operation and switched off at the mains beforehand in any area where steam-jet or high-pressure washers are to be used. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 11: Safety Instructions For Troubleshooting
The appliances on which inspection, maintenance and troubleshooting work is performed must be disconnected from the power supply and secured against reactivation when the voltage is not re- quired for this kind of work. This must only be carried out by a certified electrician. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 12: Description And Technical Data
Any other use, especially loading the food transport trolley with other loads as given, is not permitted. The manufacturer and suppliers are not liable for any consequential damage resulting from unintended use. No liability is assumed and no warranty claims can be submitted for damages caused by improper use. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 13: Appliance Description
Appliance Description Page 13 Appliance Description 3.4.1 View of the appliance food transport trolley Figure 1 View of the appliance SPTW-2/EBF/TEHCO Plate dispensing tube with cover Corner bumper Storage place for ladles Thermostat for setting the temperature* 1/3 Cover element, open... -
Page 14: Equipment And Optional Accessories
Fixed caster made of stainless steel, Ø = 125, 160 or 200 mm, plate attachment The part numbers of the special accessories can be found in the spare parts catalogue and order lists avail- able online. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 15: Technical Data
Description and Technical Data Chapter 3 Technical Data Page 15 Technical Data Dim. SPTW-2/EBF/TEHCO Width 30.7 (mm) (779) Depth 52.0 (mm) (1321) Height 38.7/44.1 (mm) (982/11199) Own weight (kg) (350.5) Payload 392.4 (kg) (178) Capacity (in people) maximum duration of transport be-... -
Page 16: Rating Plate
68 to 122 tions of casters (˚C) (20 to +50) Caster diameter 6.3'' (mm ) The corresponding test marks are available from our homepage at www.hupfer.de. Rating Plate Figure 2 Rating plate Disposal of old appliances Nominal current Test mark... -
Page 17: Transport, Putting Into Operation And Decommissioning
Before the appliance is put into operation it must be clean and dry. The following appliance functions must be checked before putting it into operation: § the functioning of the total brakes § the functioning of the operating elements and heating. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 18: Storage And Recycling
Packaging and packing material can be sent to the recycling centre by indicating the waste disposal contract ® number. If you do not have the valid waste disposal contract number, you can ask for it at HUPFER Service. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 19: Operation
The operating elements of the food transport trolley are arranged on the front side of the appliance. The digits on the thermostats can be allocated to the bain-marie wells and the heated cupboards. Figure 3 Operating elements of food transport trolley Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 20: Adjusting The Plate Dispensing Tube
If the crockery guides are set too close, the plates can become jammed and can injure people when re- leased suddenly. Too small crockery items cannot be guided properly and, therefore, should not be used. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... - Page 21 Remove the crockery guides in the area of the retaining bolts (B) by pressing them down slightly and fit them onto the other retaining bolts (B). INFO Crockery diameters The following crockery diameters can be set with the locking positions provid- ed: 19.0 / 21.5 / 23.5 / 26.0 cm. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO...
-
Page 22: Spring Adjustment
(2) with lower tension. Figure 6 Attachment bar with tension springs If the dispensing height is too high, adjustable springs must be unhooked. If the dispensing height is too low, adjustable springs must be added. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 23: Calculating The Capacity Of The Plate Dispensing Tubes
H K: Items per crockery stack : Stack height of the plate dispenser Figure 7 Intermediate stack height H of 11 crockery items Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 24: Operation
150 mm depth can be inserted. Here you can store ladles or other crockery items. ATTENTION Risk of impurities The storage place for ladles is not liquid-tight without gastronorm containers. Liquid can flow into the appliance and cause hygienic problems and smell nuisance. Always insert a suitable gastronorm container. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 25: Filling Bain-Marie Wells
Set the desired temperature using the thermostat of the heated cupboard. A continuous adjustment is possible within the 4 power ranges. Digits engraved into the housing above every thermostat helps to allocate them to the corresponding bain-marie wells. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 26: Loading
It is also possible to use GN 2/3, GN 1/2 and GN 1/3 containers. It is not possible to insert smaller contain- ers. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 27: Moving
Fold down the supports (2). § Place the supports so that the pins (3) fit into the holes when folding down the folding shelf. To fold up the folding shelf, proceed in the reverse sequence. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 28: Measures At The End Of Operation
Turn on the water drain taps only directly above the on-site drain or a central waste drain in the kitchen. Figure 9 Opening the water drain tap § Open the water drain taps. § Drain off the water from the bain-marie wells. Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0... -
Page 29: Fault Detection And Troubleshooting
Total brakes do not have any locking Wear of the locking brakes Replace the locking brakes or replace action defective casters with new ones Appliance does not become warm; Defective building fuses Check fuse and repair, if necessary Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... - Page 30 At a lower temperature cold storage plates containing liquid brine are not as efficient as the completely frozen ones Cold storage plate does not lie on the Cold storage plate lies on the upper- uppermost beads most beads Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0...
-
Page 31: Cleaning And Care
If after cleaning the bain-marie wells there are still scale deposits, remove them, otherwise energy consump- tion will grow and efficiency will decrease. In case of heavy scale deposits, this can result in damages to the appliance. To descale, use commercially available descaling agents or vinegar water. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... - Page 32 Mechanical damages and obsolescence on the connecting lead check Mechanical damages and obsolescence on the mains plug check = after use = if necessary, every 25 operating hours at the latest = every 2 months = every 6 months Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0...
-
Page 33: Special Care Instructions
Therefore, for mechanical cleaning use exclu- sively refined steel wool or brushes with natural, plastics or refined steel bristles. Steel wool or brush- es with unalloyed steel lead to extraneous rust due to abrasion. Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO... -
Page 34: Spare Parts And Accessories
Always stockpile a full set of replacement parts as a reserve or make a maintenance contract with a special- ised dealer to avoid standstill times. Spare Parts and Accessories List SPTW-2/EBF/TEHCO 4000150-B Swivel caster St galv. T1/160... - Page 35 CEE plug 230 V - 16 A - 3-pole in Germany on request at SPTW-3/EBF, in Switzerland Standard at SPTW-3 EBF § 3-pole British mains plug in accordance with BS 1363 A for Great Britain and Hong Kong § 3-pole Swiss mains plug of type 12 - 10 A Food transport trolley 91319926_A0 SPTW-2/EBF/TEHCO...
-
Page 36: Annex
Annex Chapter 9 Page 36 EC Declaration of Conformity Annex EC Declaration of Conformity Food transport trolley SPTW-2/EBF/TEHCO 91319926_A0...
