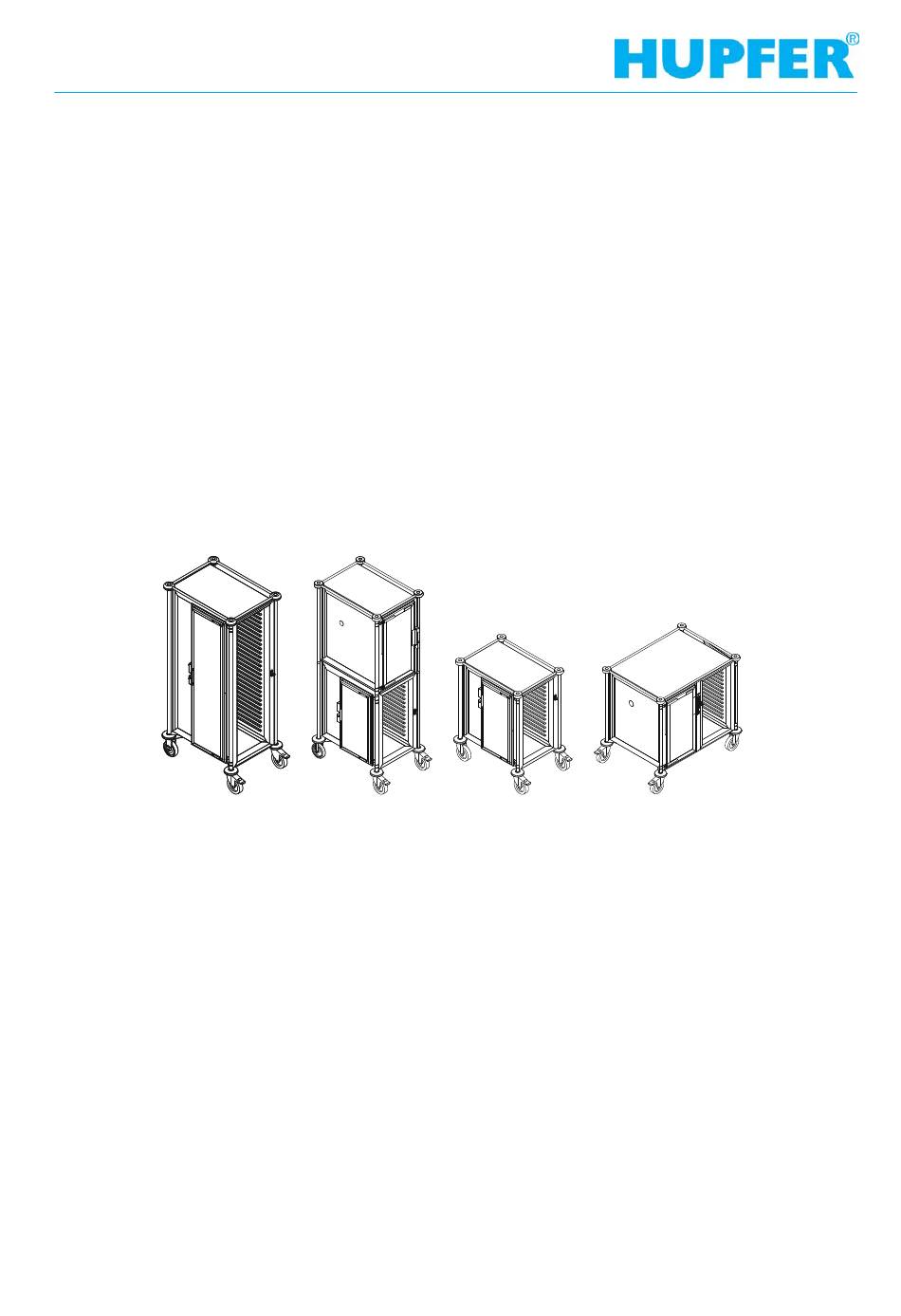

- Page 1 Operating Instructions ISOBOX® Mobil Basic 91338723_A0...
-
Page 2: Introduction
Page 2 Appliance Information Introduction Appliance Information Appliance name ISOBOX® Mobil Appliance type/s Basic Manufacturer HUPFER® Metallwerke GmbH & Co. KG Dieselstrasse 20 48653 Coesfeld Germany Postfach 1463 48634 Coesfeld Germany ' +49 2541 80 50 +49 2541 805 111 www.hupfer.de... -
Page 3: Table Of Contents
Introduction Section 1 Table of Contents Page 3 Table of Contents Introduction Appliance Information Table of Contents List of Abbreviations Definitions of Terms Orientation of the Appliance Notes on Using the Manual 1.6.1 Notes on the Manual Structure 1.6.2 Notes and their Representation used in all Sections Safety Instructions Introduction Warning Symbols Used... - Page 4 Introduction Section 1 Page 4 Table of Contents Cleaning and Care Hygiene Measures Cleaning and Care Special Care Instructions for Aluminium Surfaces Special Care Instructions for Stainless Steel Spare Parts and Accessories ISOBOX® Mobil Basic 91338723_A0...
-
Page 5: List Of Abbreviations
Introduction Section 1 List of Abbreviations Page 5 List of Abbreviations Abbreviation Definition German Employers' Liability Insurance Association rule (Berufsgenossenschaftliche Re- gel) German Employers' Liability Insurance Association regulations (Berufsgenossenschaft- liche Vorschrift) Communauté Européene European Community German Institute for Standardisation, technical regulations and technical specifications Spare or wearing part (Ersatz- bzw. -
Page 6: Definitions Of Terms
Introduction Section 1 Page 6 Definitions of Terms Definitions of Terms Term Definition Authorised specialist An authorised specialist is a specialist that has been trained by the manufacturer, an authorised service dealer or a company assigned by the manufacturer. Check, inspect Compare with certain conditions and/or characteristics such as damage, leaks, filling levels and heat. -
Page 7: Orientation Of The Appliance
Porcelain Standard is a measurement system for porcelain plates devised by ® HUPFER The basic size of Porcelain Standard (PN) 1/1 is 8.7 x 6.3'' (220x160 mm) (1/2 PN conforms to 4.3x6.3'' (110x160 mm), 1/4 PN conforms to 6.3x3.1'' (160x80 mm)). The fitting lids have the following dimensions: 1/1 PN 9x6.6'' (228x168mm), 1/2 PN... -
Page 8: Notes On Using The Manual
Introduction Section 1 Page 8 Notes on Using the Manual Notes on Using the Manual 1.6.1 Notes on the Manual Structure This manual is divided into function- and task-focused sections. 1.6.2 Notes and their Representation used in all Sections The warnings and notes are separated from the other text and particularly marked by corresponding icons. The icon cannot, however, replace the text of the safety instructions. -
Page 9: Safety Instructions
Safety Instructions Section 2 Introduction Page 9 Safety Instructions Introduction The section on safety instructions describes the risks associated with the appliance in terms of product liabil- ity (according to the EU Directives). The safety instructions are meant to warn of hazards and help to avoid damage to persons, the environment and property. -
Page 10: Safety Instructions For Transport
Safety Instructions Section 2 Page 10 Safety Instructions for Transport § Do not brake the appliance by applying the total locks. The total locks are designed to prevent the appliance from moving of its own accord. Do not park the appliance on sloping floors. Secure the ap- pliance against rolling away by applying both total locks after parking. -
Page 11: Description And Technical Data

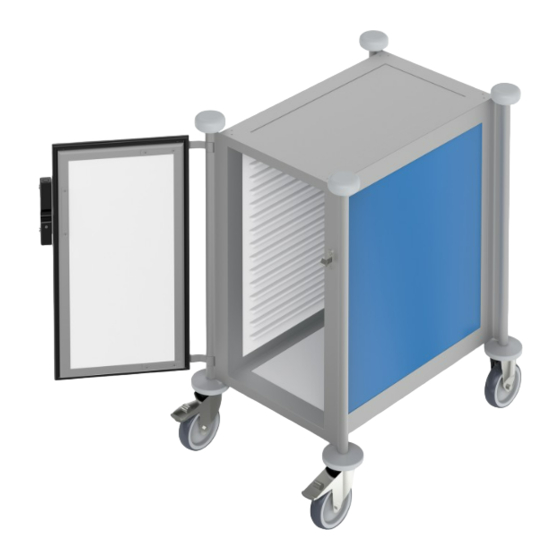

Description and Technical Data Section 3 Performance Description Page 11 Description and Technical Data Performance Description Appliances in the ISOBOX® Mobil Basic model range are designed for transporting and serving foodstuffs in large-scale kitchens, catering operations, refectories and works canteens. They carry prepared meals in Gastronorm containers or baskets and on grids. -
Page 12: Device Description
Doors, rear and side panels are made of powder-coated aluminium. You can obtain information on available colours from HUPFER® or consult our website. The interior casing features seamlessly deep-drawn tray beads. The bead walls and interior panelling can be made of plastic or stainless steel. -
Page 13: Equipment And Optional Accessories
§ Colour door panels and side panels: ® You can obtain information on available colours from HUPFER or consult our website. § Casters: Made of stainless steel, fixed casters, swivel casters with or without total lock, Ø 4.92'' (125 mm). -
Page 14: Rating Plate
Description and Technical Data Section 3 Page 14 Rating Plate Dim. Model 3 Model 4 1/15 2/30 Width in (mm) 21.6'' (549) 38.3'' (972) Depth in (mm) 28.6'' (726) 28.6'' (726) Height (125 caster) in (mm) 36.2'' (920) 36.2'' (920) Tare weight lbs (kg) 12.7 (28) -
Page 15: Transport, Initial Operation And Taking Out Of Service
Transport, Initial Operation and Taking out of Service Section 4 Transport Page 15 Transport, Initial Operation and Taking out of Service Transport CAUTION Damage to appliances caused by improper transport Appliances should be safely secured when transported off site inside a vehicle such as a truck. -
Page 16: Storage And Recycling
Packaging and packing material can be sent to the recycling centre by indicating the waste disposal contract ® number. If you do not have the valid waste disposal contract number, you can request it from HUPFER Service. ISOBOX® Mobil Basic... -
Page 17: Operation
Operation Section 5 Operation Page 17 Operation CAUTION Damage to appliances The appliance must be checked for visible external damage and defects each time before being operated. The appliance may only be operated when it is in a technically immaculate condition. If damage is detected, inform the person or persons responsible immediately. -
Page 18: Troubleshooting And Repair
Servicing may be carried out by authorised specialists only. ® Defective components should only be replaced with HUPFER original parts. The modular design simplifies the replacement of individual components. Always specify the information and corresponding part number indicated on the rating plate when contacting the after-sales service or ordering spare parts. - Page 19 Cleaning and Care Section 7 Hygiene Measures Page 19 Cleaning and Care NOTE Cleaning in the washing device The appliances in the ISOBOX® Mobil Basic model range can be cleaned in an automated cleaning system. Hygiene Measures It is essential for operating staff to act in the correct manner to ensure optimal hygiene. All persons must have sufficient knowledge about the locally valid hygiene regulations, observe them and comply with them.
- Page 20 Cleaning and Care Section 7 Page 20 Special Care Instructions for Stainless Steel Cleaning anodised aluminium surfaces: § Carry out care tasks on surfaces on a regular basis by washing with clean water and washing-up liq- uid and then rinsing. After drying, apply an anodising cleaner sparingly with a soft cloth. Then polish with a dry, soft cloth to achieve a streak-free surface.
- Page 21 Spare Parts and Accessories Servicing may be carried out by authorised specialists only. Defective components should only be replaced with HUPFER original parts or identical spare parts. That is ® the only way to guarantee a safe operation. We would like to point out that a perfect functionality of the ap-...
