2. Drill a hole in the wall at each mark using a drill bit that is slightly smaller than the diameter of the screws so the screw threads will grip the wall
securely.
If you are not installing the device on a concrete wall, you can use threaded screws and plastic wall anchors (not supplied) to mount the
device.
3. Attach the bracket to the wall using the appropriate mounting screws for the wall type.
4. Insert the heads of the bolts on the device into the large end of the bracket keyholes and slide the device down until the bolts rest in the
narrow end of the keyholes.
5. Tighten the locking screws on the bracket to secure the device.
6. Ground the device as shown below.
For horizontal mounts, be sure that the ports are facing earth to reduce the chance of water entering the chassis. As an added security measure,
you can thread a safety strap through one of the cable strap slots in addition to the hose strap. Connect the other end of the strap to a secure
object.

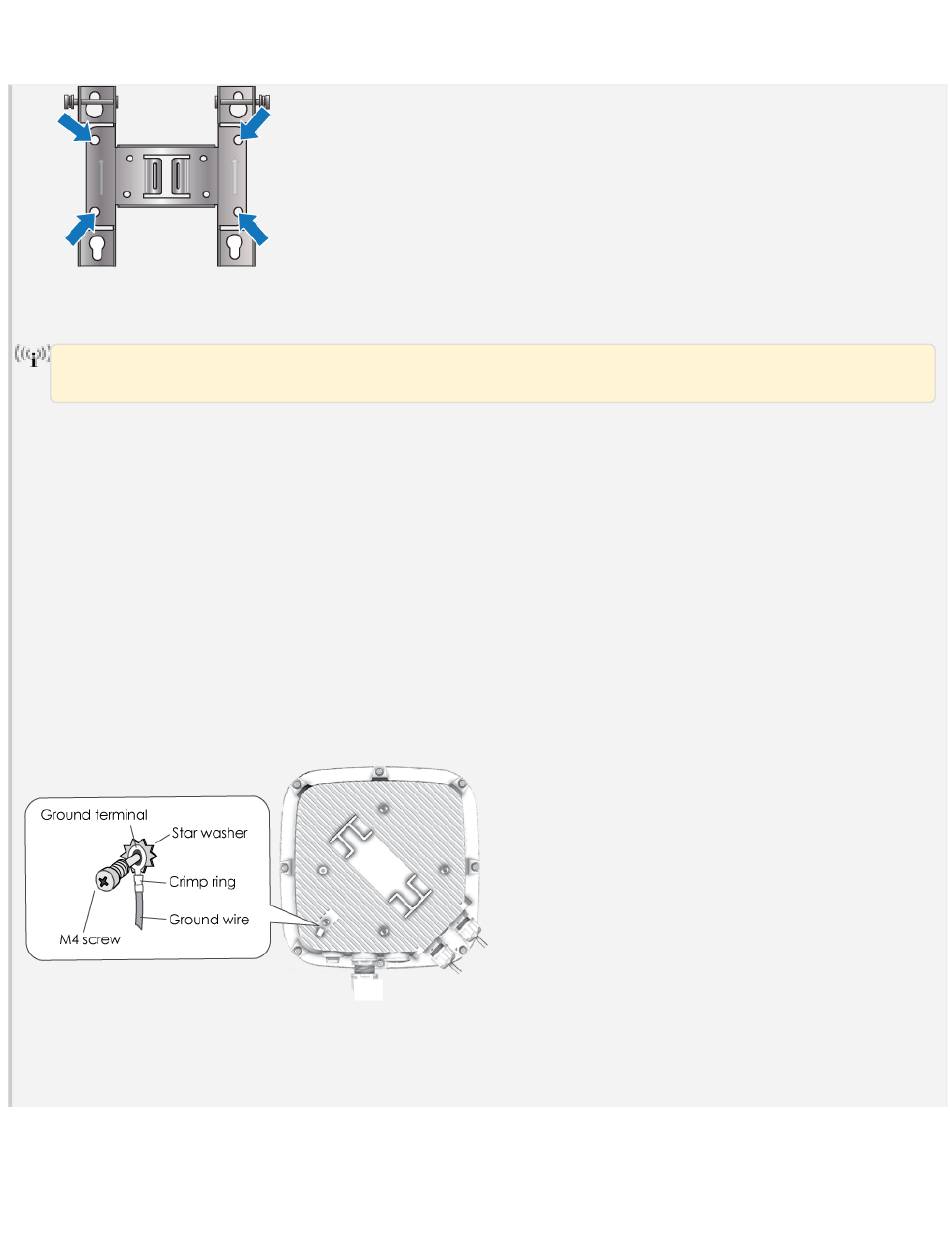

Ground the Device

Use the following steps to properly ground the AP460C.
1. Crimp the ground terminal onto a 10 AWG ground wire.
2. Insert the terminal on to the M4 screw, followed by the star washer.
3. insert the screw into the AP and torque it to 12 inch-lbs.
4. Connect the other end of the ground wire to an appropriate earthing location.
Install the Waterproof Ethernet Cable Housing
Use the waterproof Ethernet cable housing to ensure a weatherproof seal for the Ethernet cable. Use the following procedures to install the
housing.
