AP60C Hardware Guide
Install the Device on a Flat Surface
You can Install the device on a vertical or horizontal solid flat surface using the accessory wall bracket (AH-ACC-BKT-ASM). This kit contains the
mounting bracket and four bolts without washers in the plastic bag labeled "Wall Mount". You will need to provide four mounting bolts or screws
and wall mount anchors that are appropriate for the wall type where you are installing the device.

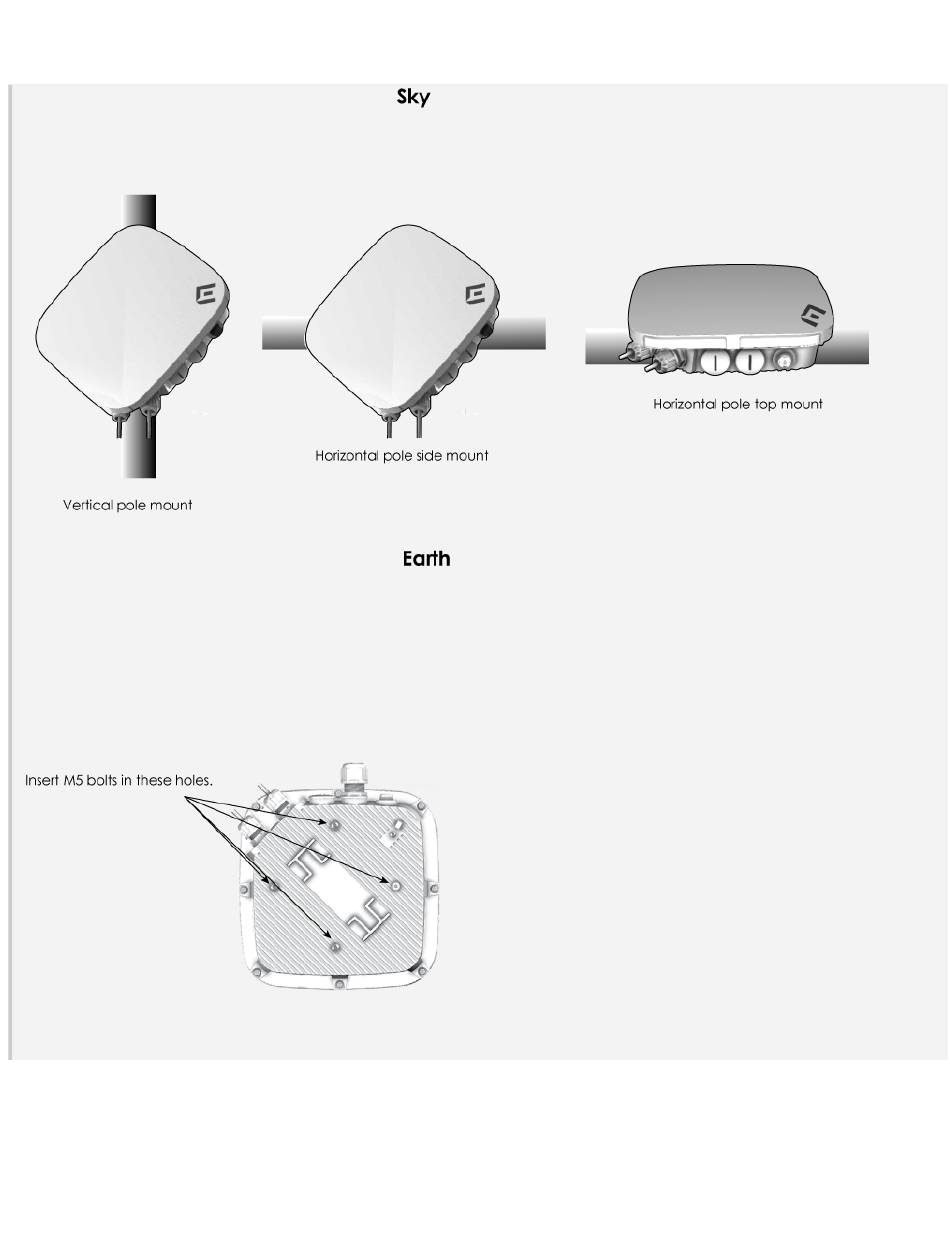

1. Insert the four M5 bolts that come in the bracket accessory kit into the holes on the bottom of the AP and torque each bolt to 16 inch-lbs.
1. Use the bracket as a template to mark the location of the mounting holes in the wall. Use the holes indicted by the blue arrows in the illus-
tration below.
