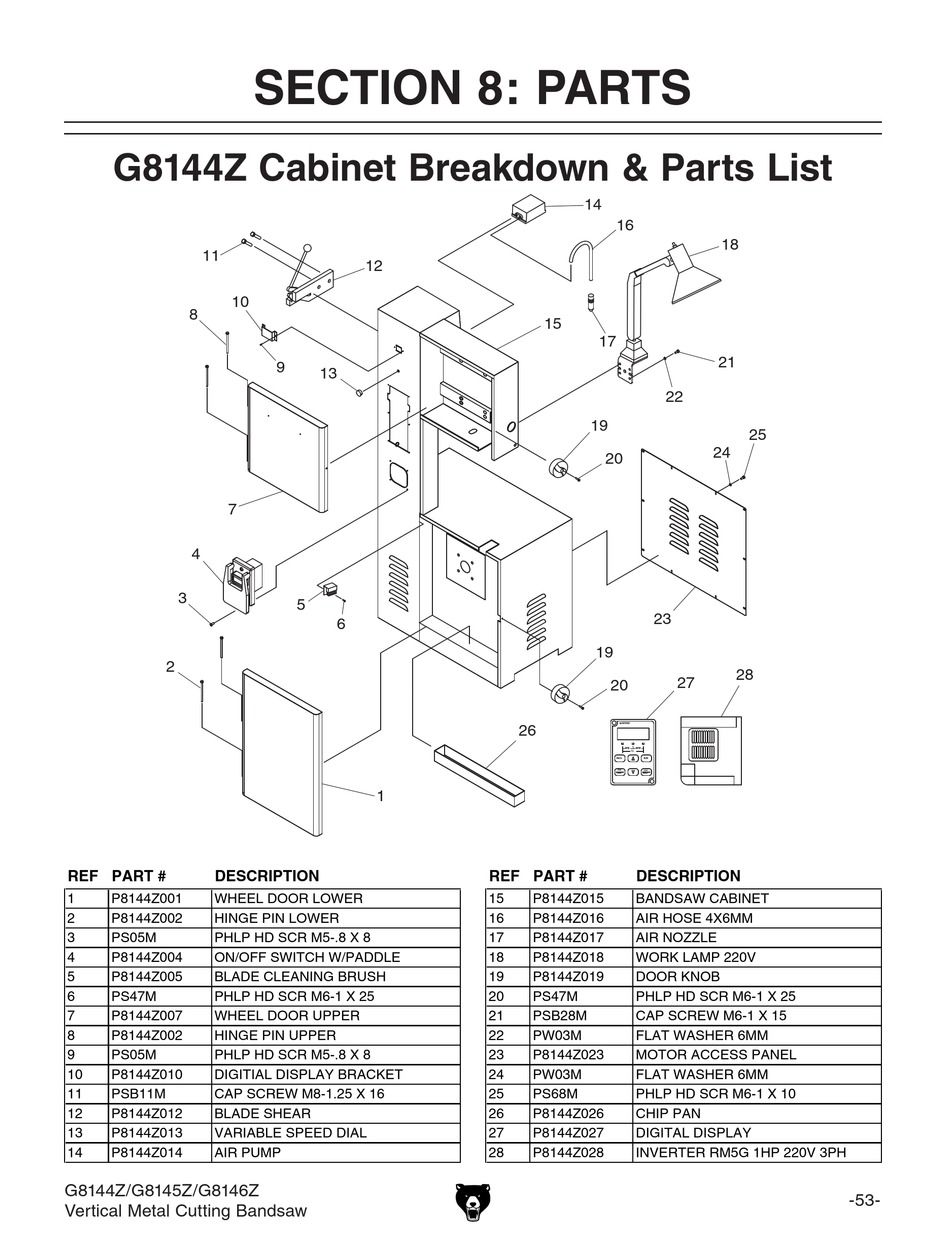

G8144Z Cabinet Breakdown & Parts List
��
��
�
�
�
�
�
REF PART #
DESCRIPTION
1
P8144Z001
WHEEL DOOR LOWER
2
P8144Z002
HINGE PIN LOWER
3
PS05M
PHLP HD SCR M5-.8 X 8
4
P8144Z004
ON/OFF SWITCH W/PADDLE
5
P8144Z005
BLADE CLEANING BRUSH
6
PS47M
PHLP HD SCR M6-1 X 25
7
P8144Z007
WHEEL DOOR UPPER
8
P8144Z002
HINGE PIN UPPER
9
PS05M
PHLP HD SCR M5-.8 X 8
10
P8144Z010
DIGITIAL DISPLAY BRACKET
11
PSB11M
CAP SCREW M8-1.25 X 16
12
P8144Z012
BLADE SHEAR
13
P8144Z013
VARIABLE SPEED DIAL
14
P8144Z014
AIR PUMP
G8144Z/G8145Z/G8146Z
Vertical Metal Cutting Bandsaw
SECTION 8: PARTS
��
�
��
�
�
�
��
��
��
��
��
��
��
��
��
��
��
������
���
���
���
����
���
���
����
����
�����
REF PART #
DESCRIPTION
15
P8144Z015
BANDSAW CABINET
16
P8144Z016
AIR HOSE 4X6MM
17
P8144Z017
AIR NOZZLE
18
P8144Z018
WORK LAMP 220V
19
P8144Z019
DOOR KNOB
20
PS47M
PHLP HD SCR M6-1 X 25
21
PSB28M
CAP SCREW M6-1 X 15
22
PW03M
FLAT WASHER 6MM
23
P8144Z023
MOTOR ACCESS PANEL
24
PW03M
FLAT WASHER 6MM
25
PS68M
PHLP HD SCR M6-1 X 10
26
P8144Z026
CHIP PAN
27
P8144Z027
DIGITAL DISPLAY
28
P8144Z028
INVERTER RM5G 1HP 220V 3PH
��
��
��
��
��
��
-53-
