MikroTik CCR1072 Quick Start Manual

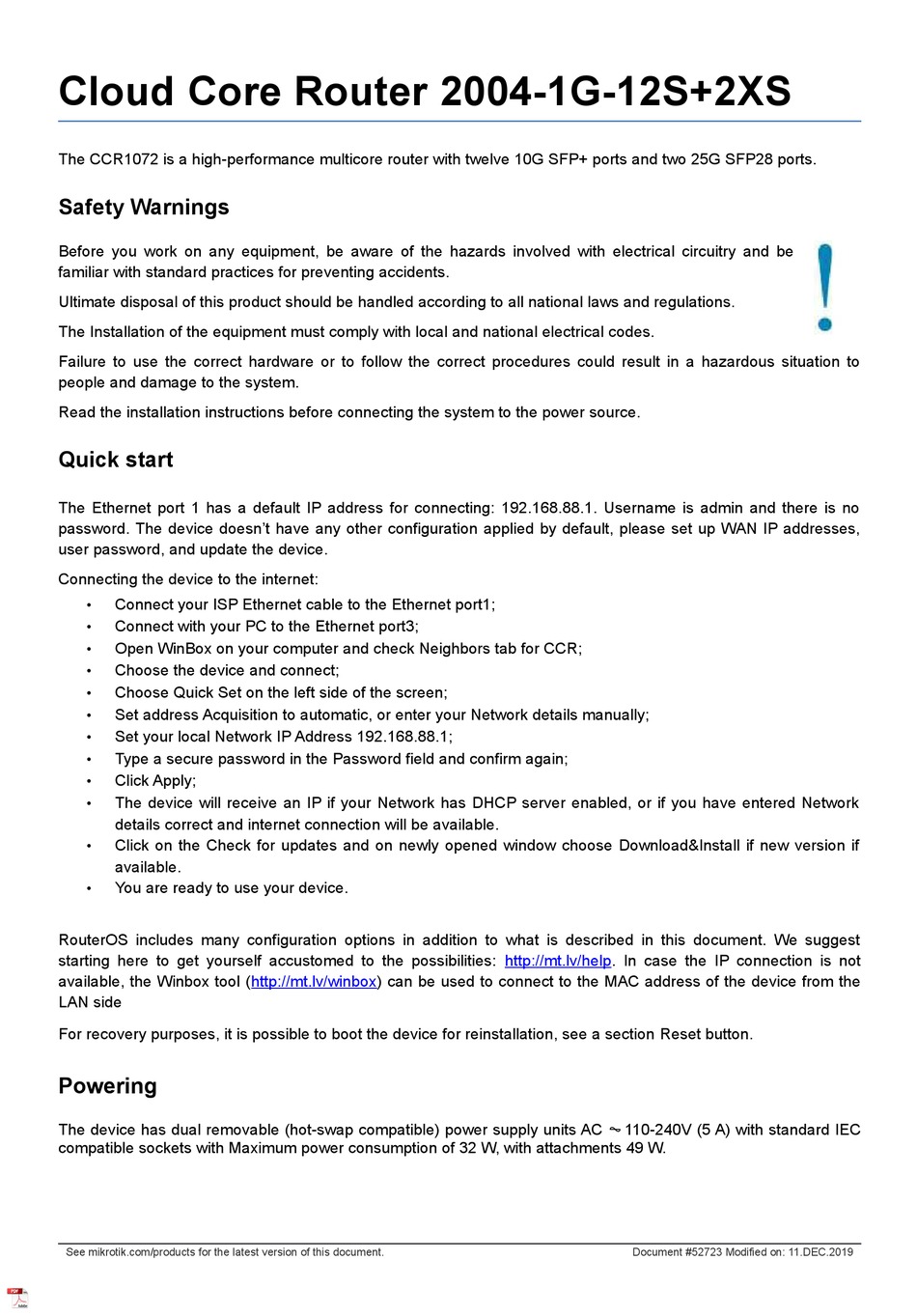

Cloud Core Router 2004-1G-12S+2XS
The CCR1072 is a high-performance multicore router with twelve 10G SFP+ ports and two 25G SFP28 ports.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to
people and damage to the system.
Read the installation instructions before connecting the system to the power source.

Quick start

The Ethernet port 1 has a default IP address for connecting: 192.168.88.1. Username is admin and there is no
password. The device doesn't have any other configuration applied by default, please set up WAN IP addresses,
user password, and update the device.
Connecting the device to the internet:
Connect your ISP Ethernet cable to the Ethernet port1;
•
Connect with your PC to the Ethernet port3;
•
Open WinBox on your computer and check Neighbors tab for CCR;
•
Choose the device and connect;
•
Choose Quick Set on the left side of the screen;
•
Set address Acquisition to automatic, or enter your Network details manually;
•
Set your local Network IP Address 192.168.88.1;
•
Type a secure password in the Password field and confirm again;
•
Click Apply;
•
The device will receive an IP if your Network has DHCP server enabled, or if you have entered Network
•
details correct and internet connection will be available.
Click on the Check for updates and on newly opened window choose Download&Install if new version if
•
available.
You are ready to use your device.
•
RouterOS includes many configuration options in addition to what is described in this document. We suggest
starting here to get yourself accustomed to the possibilities: http://mt.lv/help. In case the IP connection is not
available, the Winbox tool (http://mt.lv/winbox) can be used to connect to the MAC address of the device from the
LAN side
For recovery purposes, it is possible to boot the device for reinstallation, see a section Reset button.

Powering

The device has dual removable (hot-swap compatible) power supply units AC ⏦ 110-240V (5 A) with standard IEC
compatible sockets with Maximum power consumption of 32 W, with attachments 49 W.
See mikrotik.com/products for the latest version of this document. Document #52723 Modified on: 11.DEC.2019
