MikroTik CCR1009-7G-1C-PC Manual

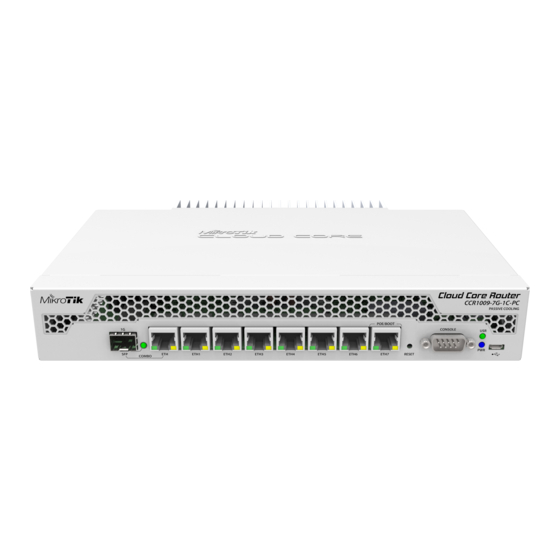

CCR1009-7G-1C-PC
CCR1009-7G-1C-PC
Cloud Core Router - Fully independent Ethernet ports each with a direct connection to the CPU.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

Quick start

Mount unit or place on the flat surface (see "
Connect to the powering source (see "
The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility.
Use Winbox to connect to the default IP address of 192.168.88.1, with the username admin and no password.
We recommend clicking the "Check for updates" button and updating your system software to the latest version to ensure the best performance
and stability.
Set up your password to secure the device.

Extension Slots and Ports

MicroUSB type AB.
1x SFP cage in the combo group with 1x 10/100/1000 Ethernet port (software selectable which one will be active).
7x 10/100/1000 Ethernet ports.
RS232 serial console port (115200bit/s, 8 data bits, 1 stop bit, no parity).

Powering

The device accepts powering in the following ways:
DC input power jack, 18-57 V DC .
PoE input, 18-57 V passive PoE.
Maximum power consumption 25 W. With attachments 30 W.
Connecting to a POE Adapter:
a. Connect the Ethernet cable from the device Eth7 to the POE out port of the POE adapter.
b. Connect an Ethernet cable from your LAN to the POE adapter.
c. Connect the power cord to the adapter, and then plug the power cord into a power outlet.
Mounting ").
Powering ").
