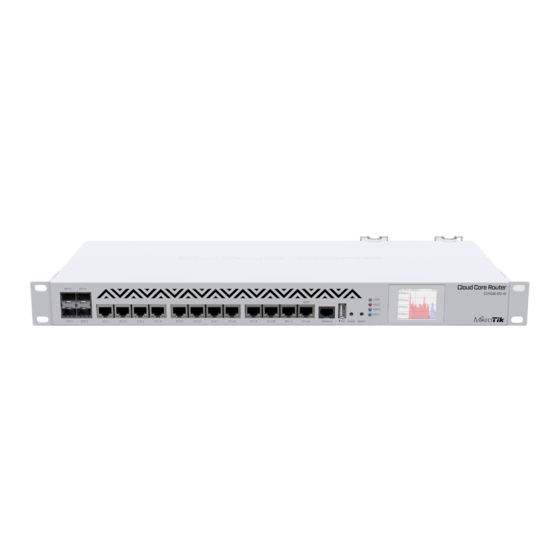

MikroTik CCR1036-12G-4S Series Manual

CCR1036-12G-4S-series
CCR1036-12G-4S-EM
CCR1036-12G-4S

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.
Firs Use
The device comes preinstalled with RouterOS and is ready to use. The ETH1 port has a default IP address for connecting: 192.168.88.1. The username is
admin and there is no password Please connect with your web browser to this IP address and choose Webfig to configure it. In case the IP connection is
not available, the Winbox tool (
The device doesn't have any other configuration or firewall rules applied by default, please connect to it, and set up IP addresses, users, passwords,
firewall, etc. Please ensure you have prevented unauthorized access from public networks by use of the firewall filters and restrictions available in the IP
services menu in RouterOS. Detailed info on how to upgrade the device
See this page for connection and configuration guides:

Powering

The device accepts powering from two redundant power supplies, each accepts 100-240 V AC power. You can use either, or both at the same time. Up to
60 W power consumption.

Extension Slots and Ports

12x 10/100/1000 Ethernet ports.
4x SFP cage
USB 2.0 type A
One M.2 slot, type PCIe x4
RJ45 console port
Etherboot / Netinstall is available on port ETH12.

Mounting

.
https://mt.lv/winbox ) can be used to connect to the MAC address of the device.
+https://mt.lv/help+
https://mt.lv/upgrade ;
